Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Grille >> Service and Repair

Grille: Service and Repair



AR88.40-P-4001Q Remove/Install Radiator Paneling

Component Identification:

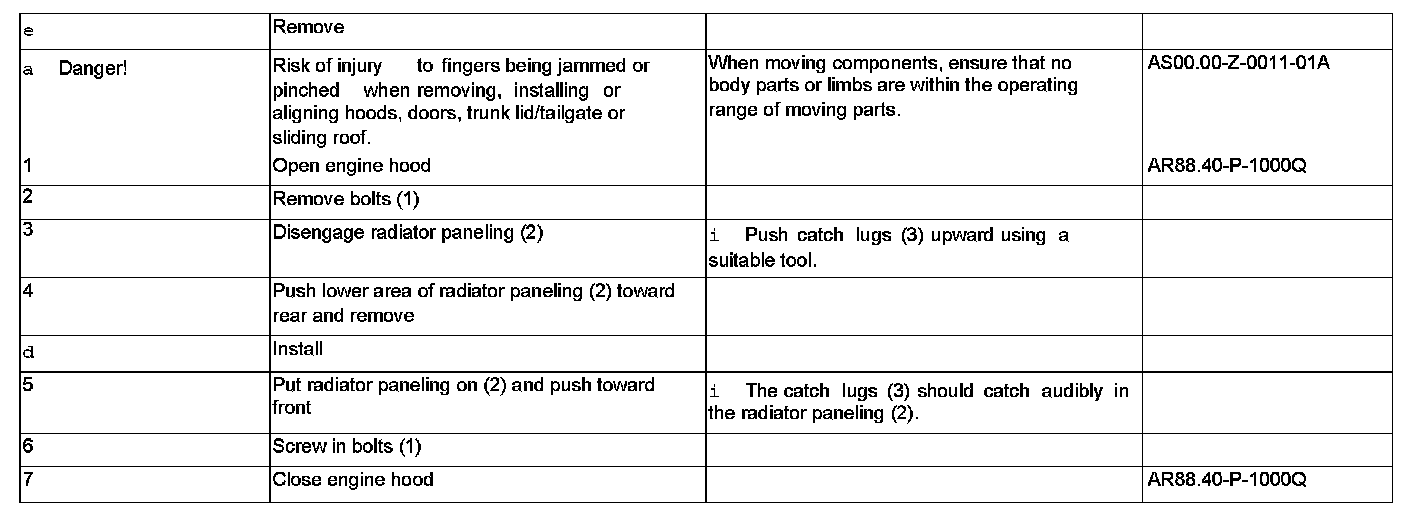

Steps 1 - 7:
