Measure Front Axle Carrier (Removed)

Measure Front Axle Carrier (removed)










1 Remove front axle
2 Set up Celette straightening bench modular members
- See set-up diagram for Celette straightening bench.
3 Insert checking fixtures (see set-up diagram) in the mounting bores of the Celette straightening bench and secure

NOTE: We recommend measuring the front axle carrier before and after straightening bench work on the vehicle concerned.

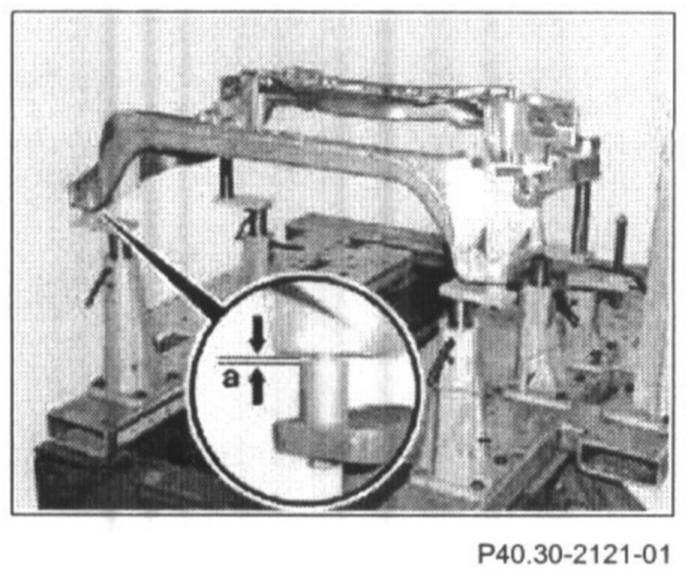

4 Place complete front axle carrier assembly (with front axle halves) or as a single part on the checking fixtures rotated through 180 degrees as illustrated

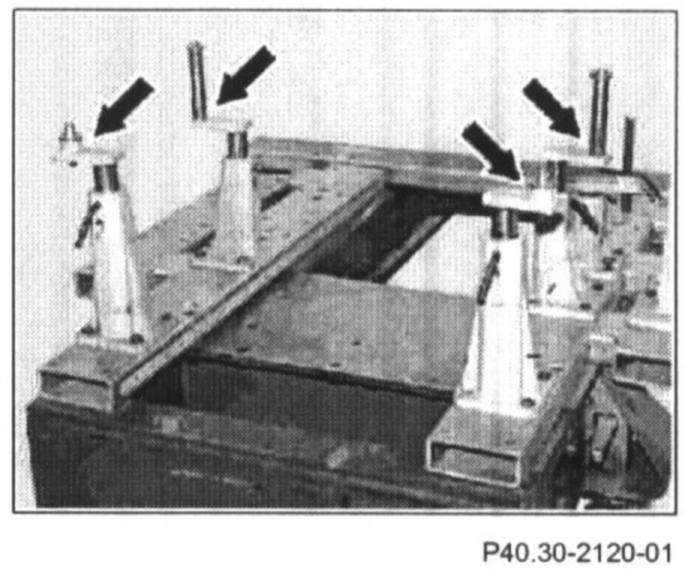

NOTE: The adjuster pins (arrows) on the modular member must be inserted into the reference bores in the front axle carrier.

5 Install in the reverse order
