Hood Latch: Service and Repair
AR88.40-P-3200Q Remove/Install Engine
Hood
Catch

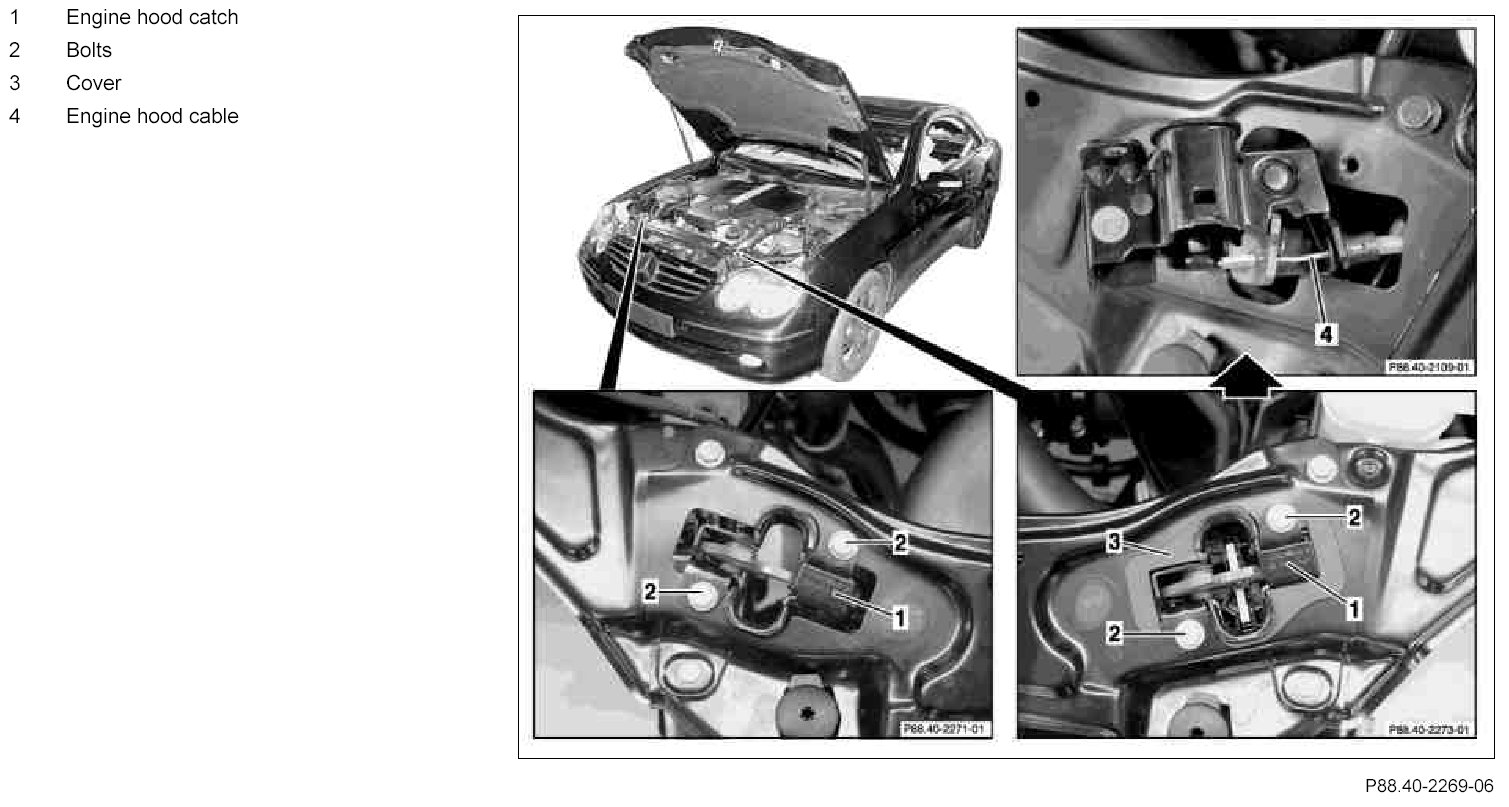

Component Identification:

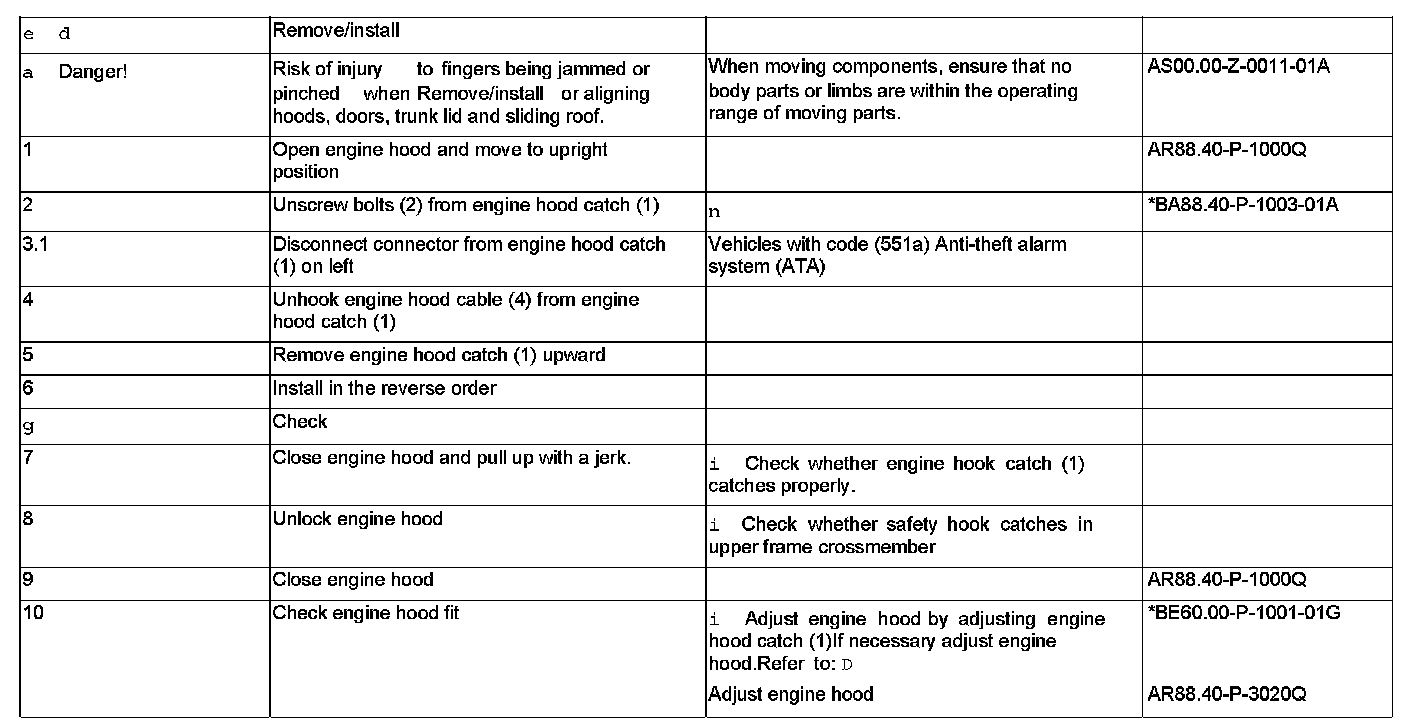

Steps 1 - 10:

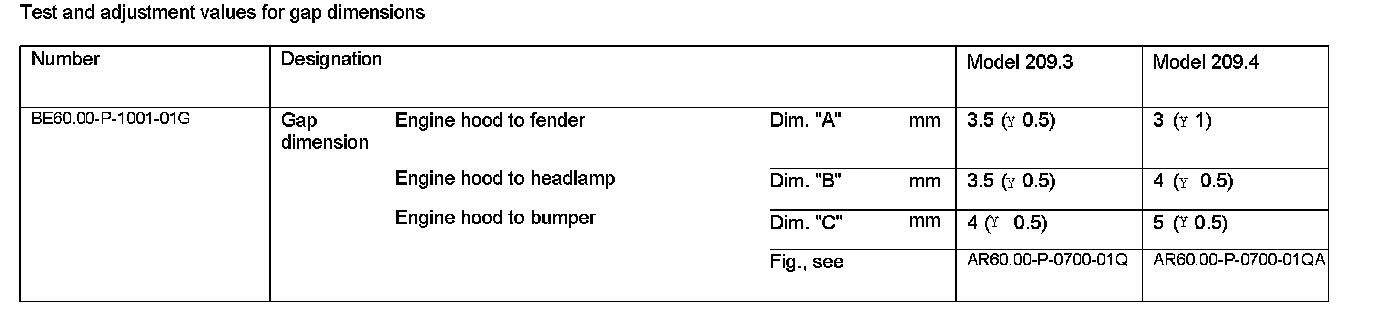

Test And Adjustment Values For Gap Dimensions:
