Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Front Door Latch >> Service and Repair

Front Door Latch: Service and Repair

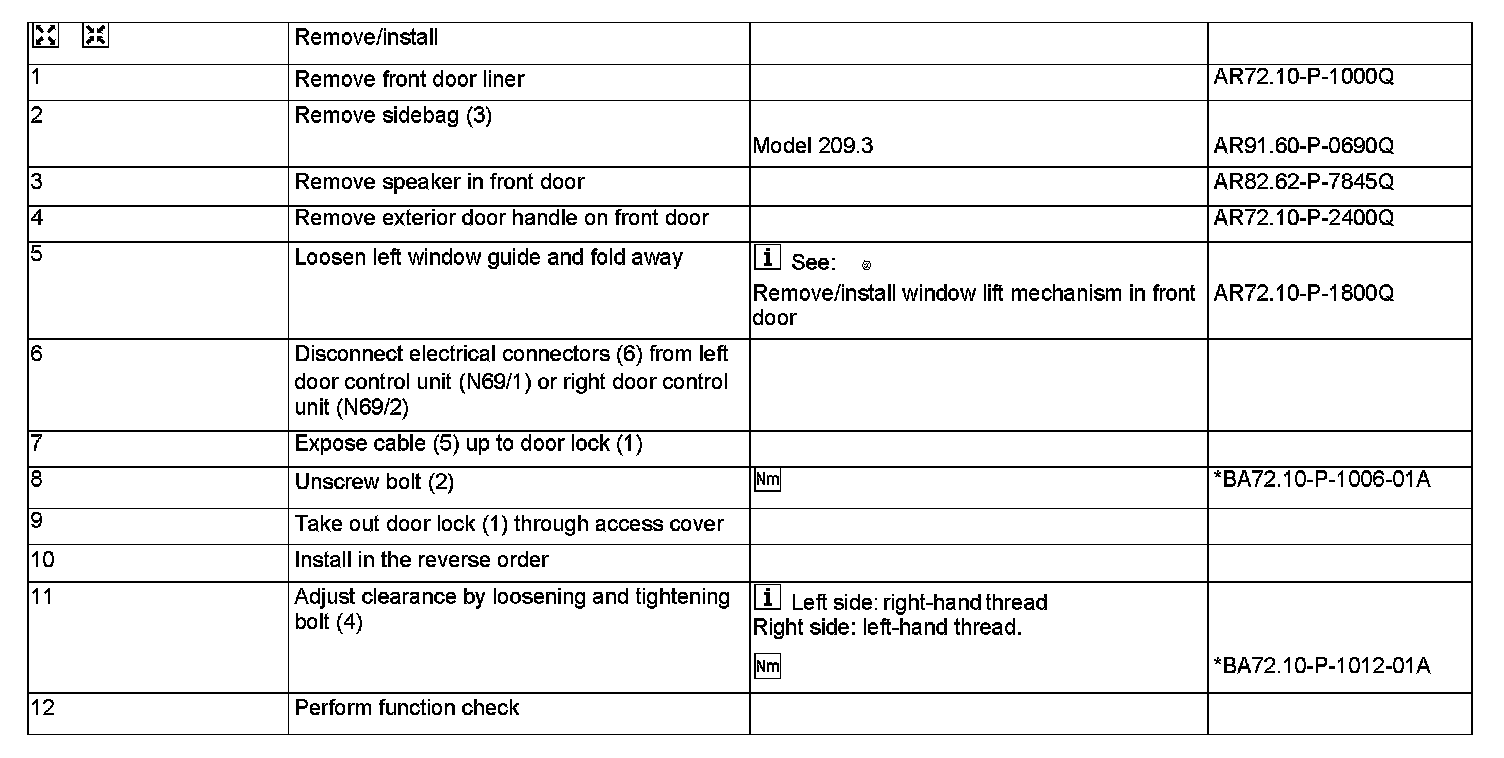

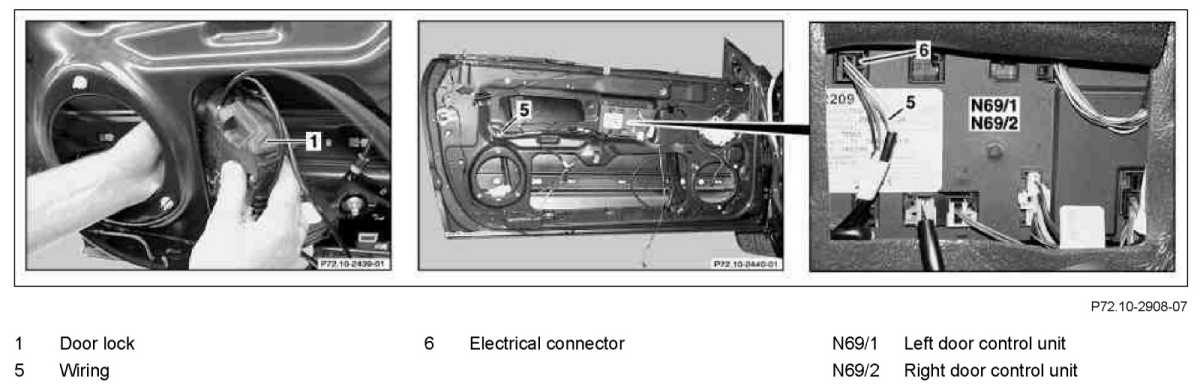

AR72.10-P-4011Q Remove/Install Front Door Lock

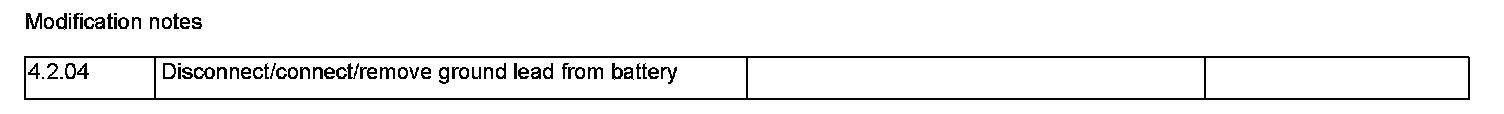

Modification Notes:

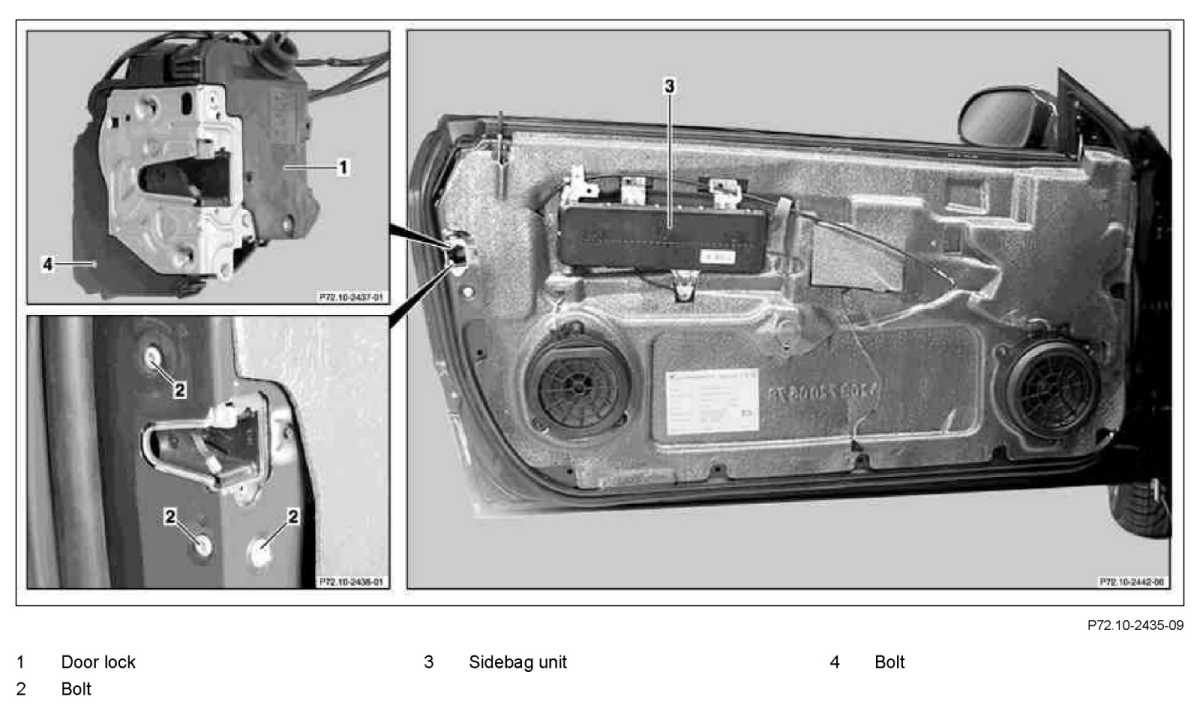

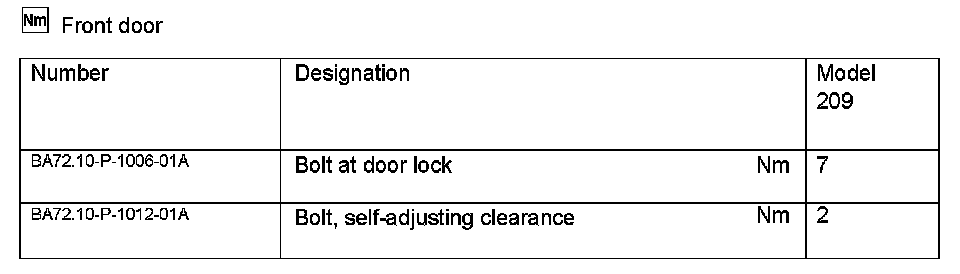

Front Door:
