Lower Control Panel Control Module (N72) PE54.21-U-2120BA

Lower Control Panel Control Module (N72) PE54.21-U-2120BA
- up to 31.5.04

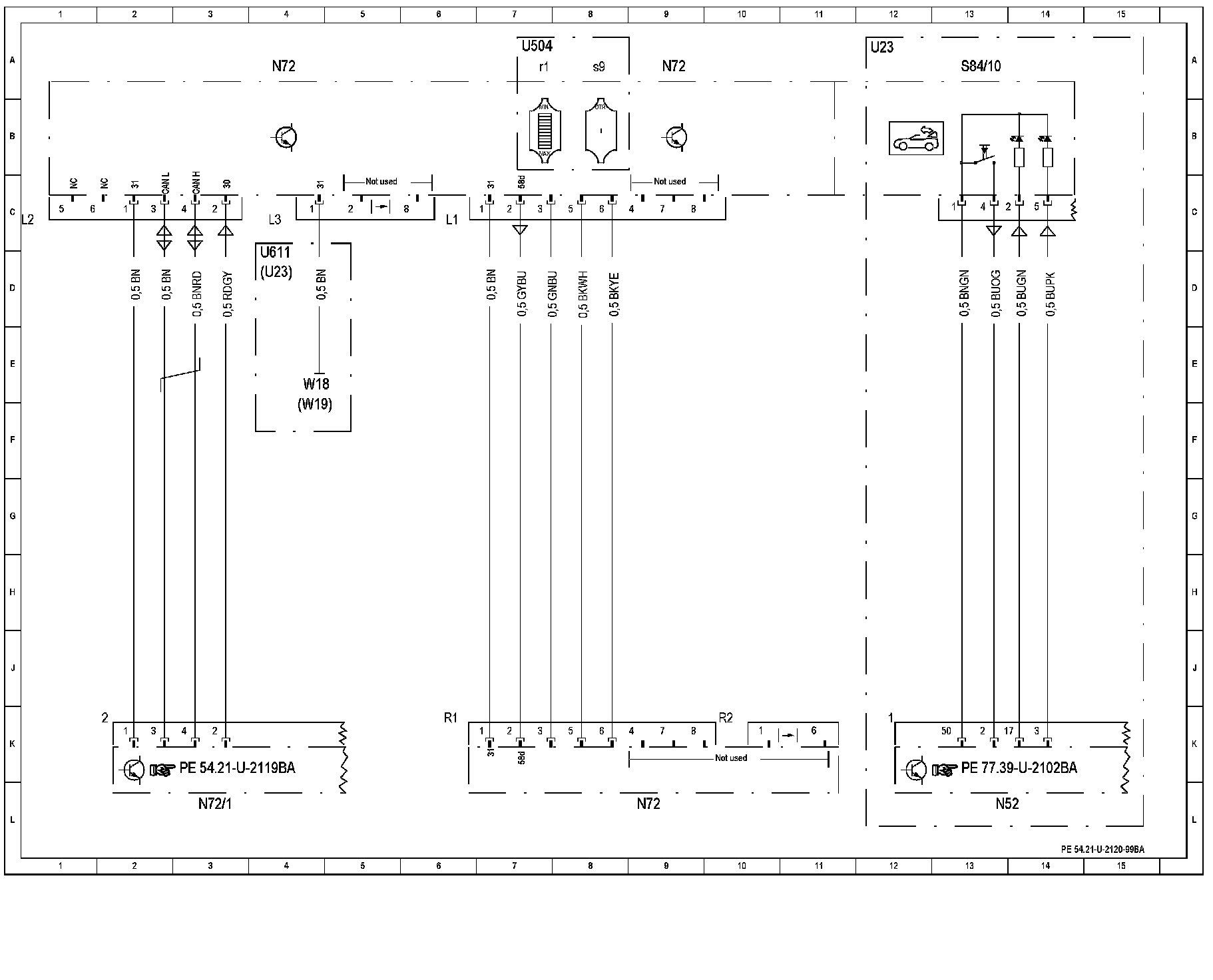

Wiring Diagram:

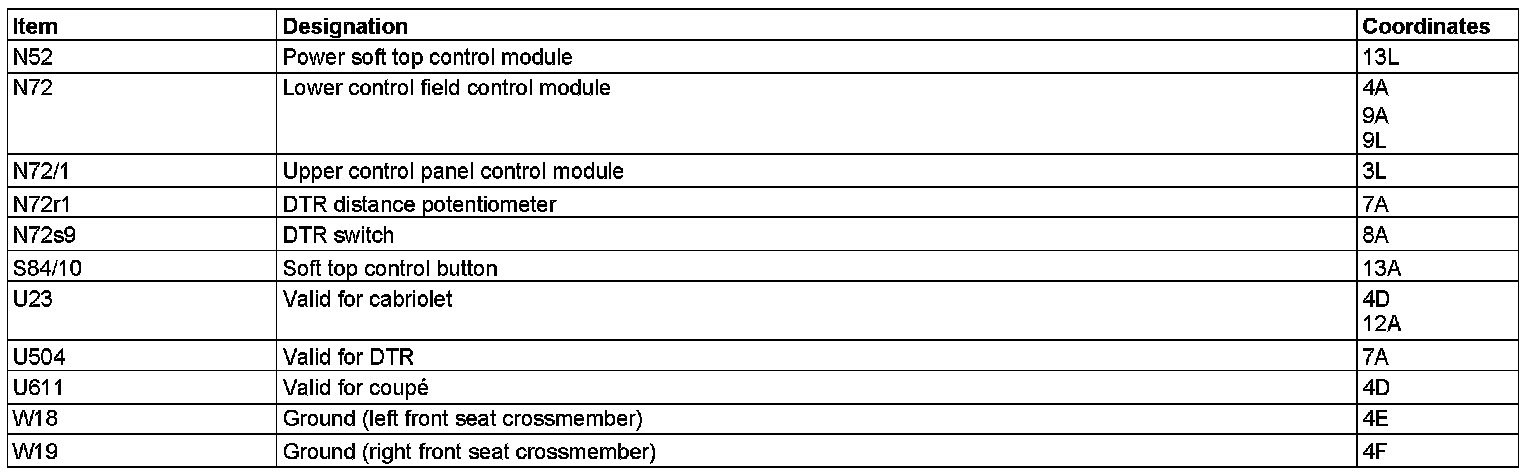

Component Description/Coordinates, N52 To W19:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
