GF54.21-P-4105-03Q Overhead Control Panel Control Unit Design
GF54.21-P-4105-03Q Overhead Control Panel Control Unit Design
GF54.21-P-4105-03Q Overhead Control Panel Control Unit Design
- up to 31.5.04

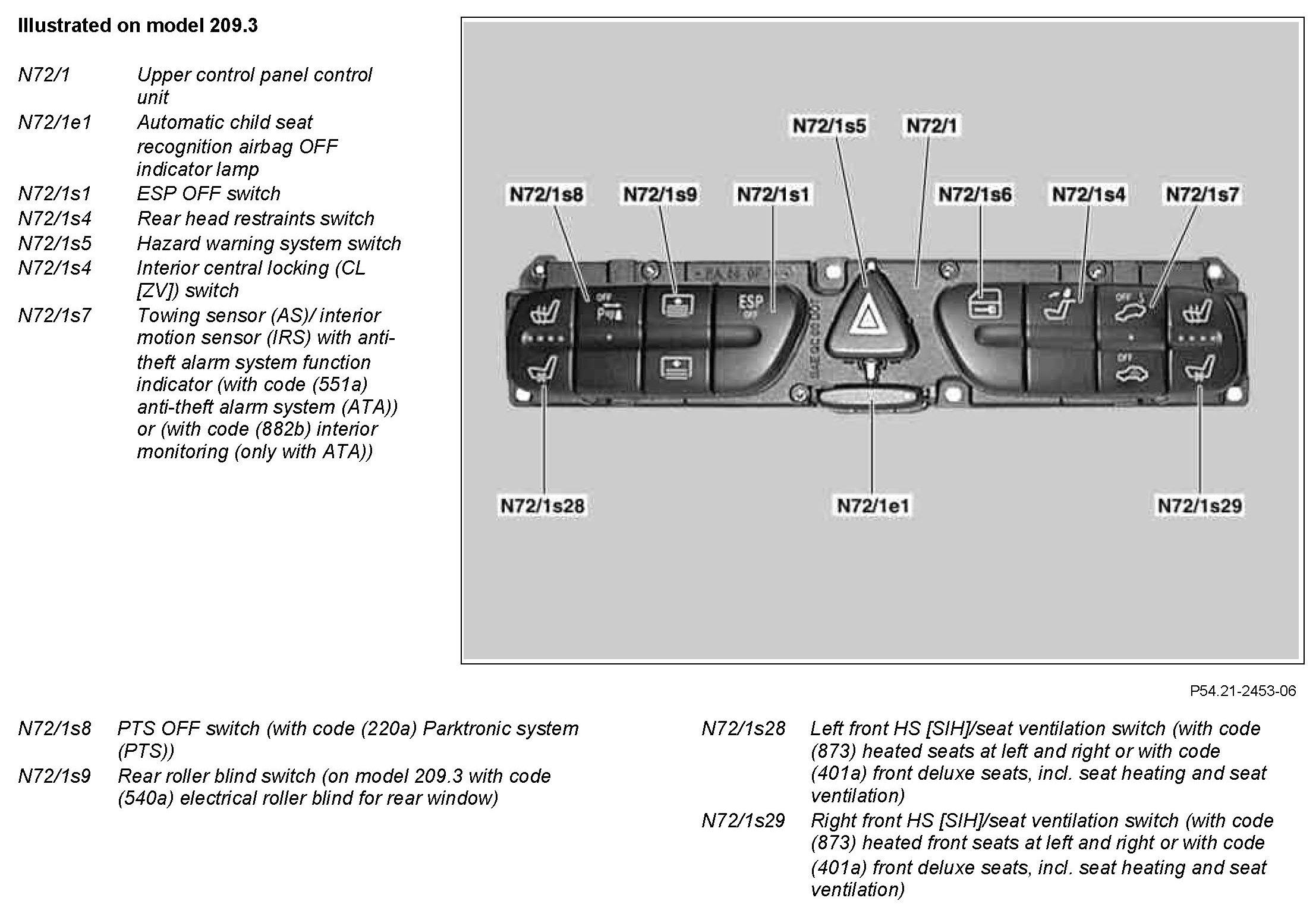

Component Identification:
