AR31.19-P-1400Q Trailer Coupling Socket Wiring Harness, Removal and Installation



AR31.19-P-1400Q Trailer Coupling Socket Wiring Harness, Removal And Installation
- trailer hicth with detachable ball neck
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package

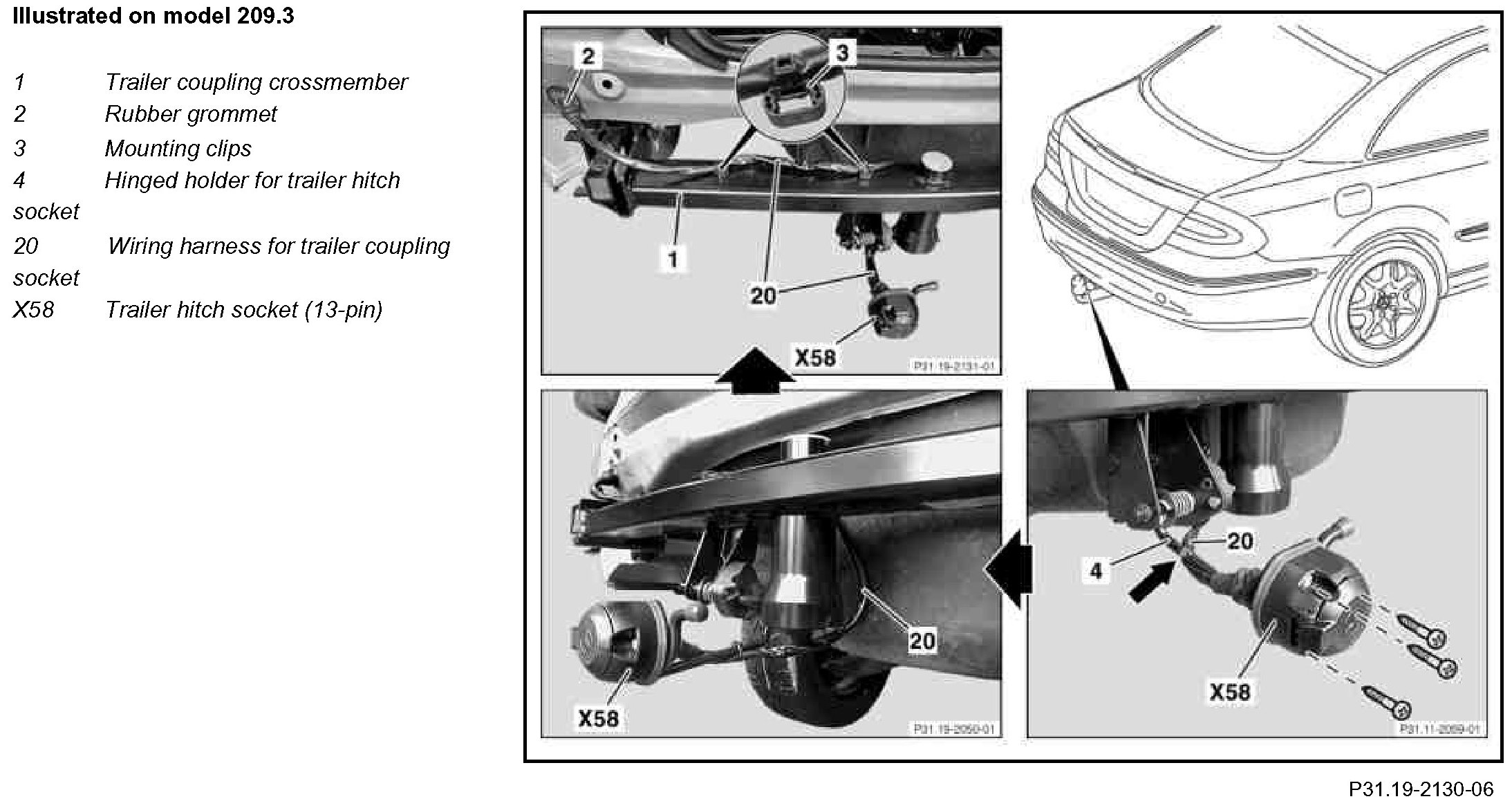

Component Identification:

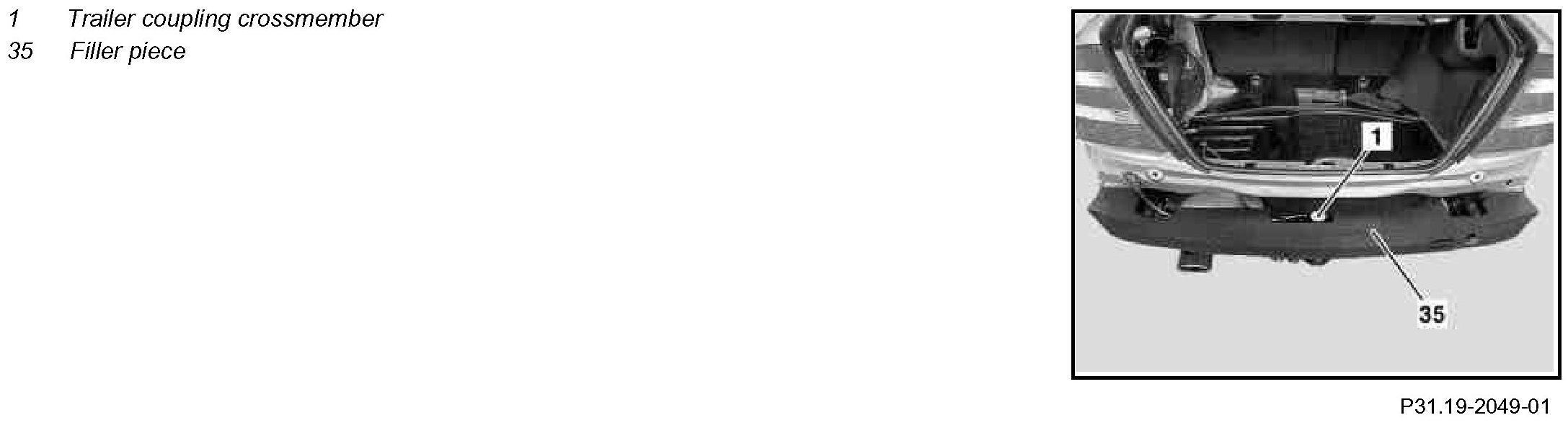

Component Identification:

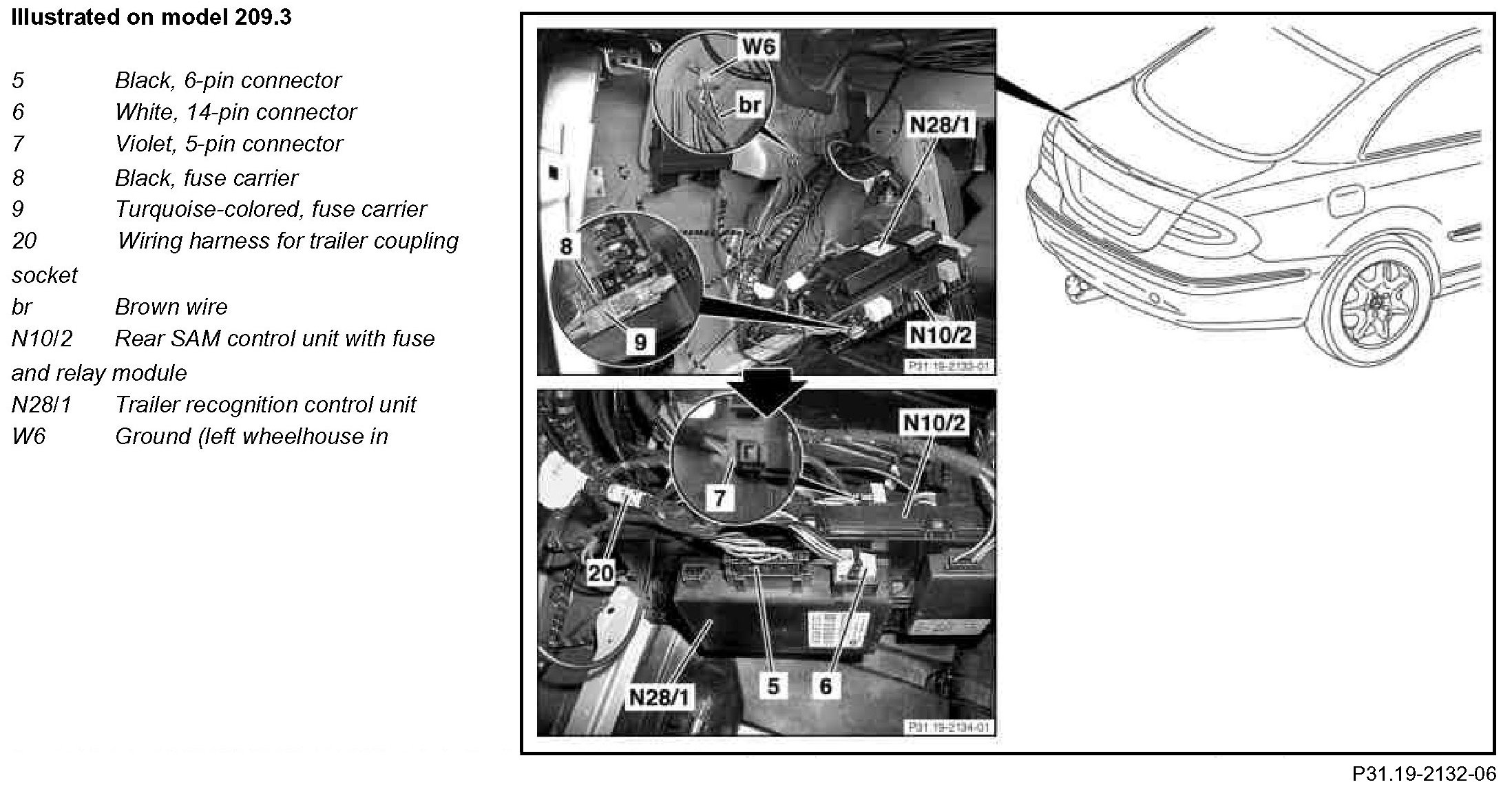

Component Identification:




Modification Notes:

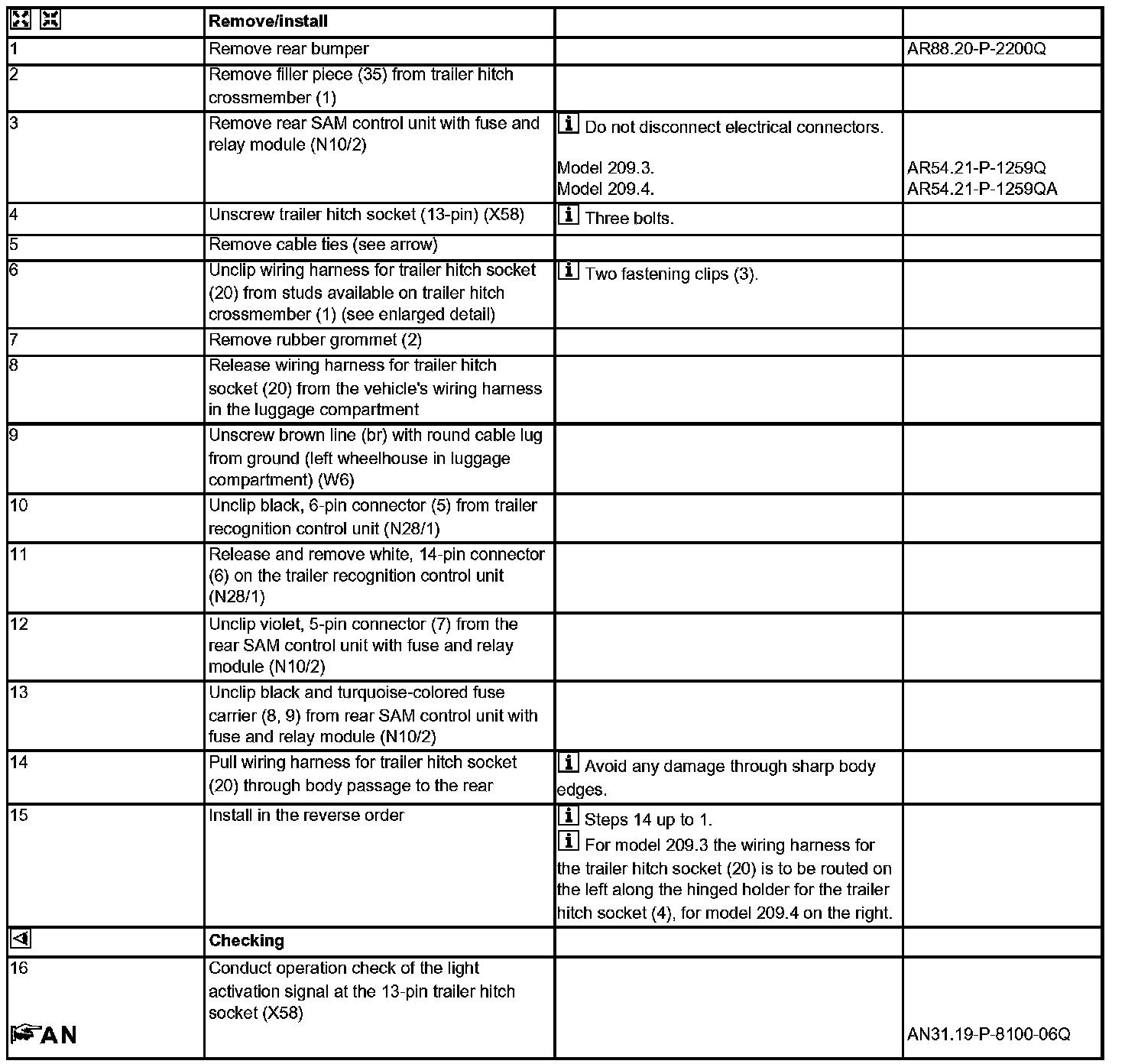

Steps 1 - 16:
