Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Component Tests and General Diagnostics >> Radio (RD) (All Models W/ MB-Radio) >> Electrical Test Program >> Test - Section 23 >> Test Step 8.0 - 8.1

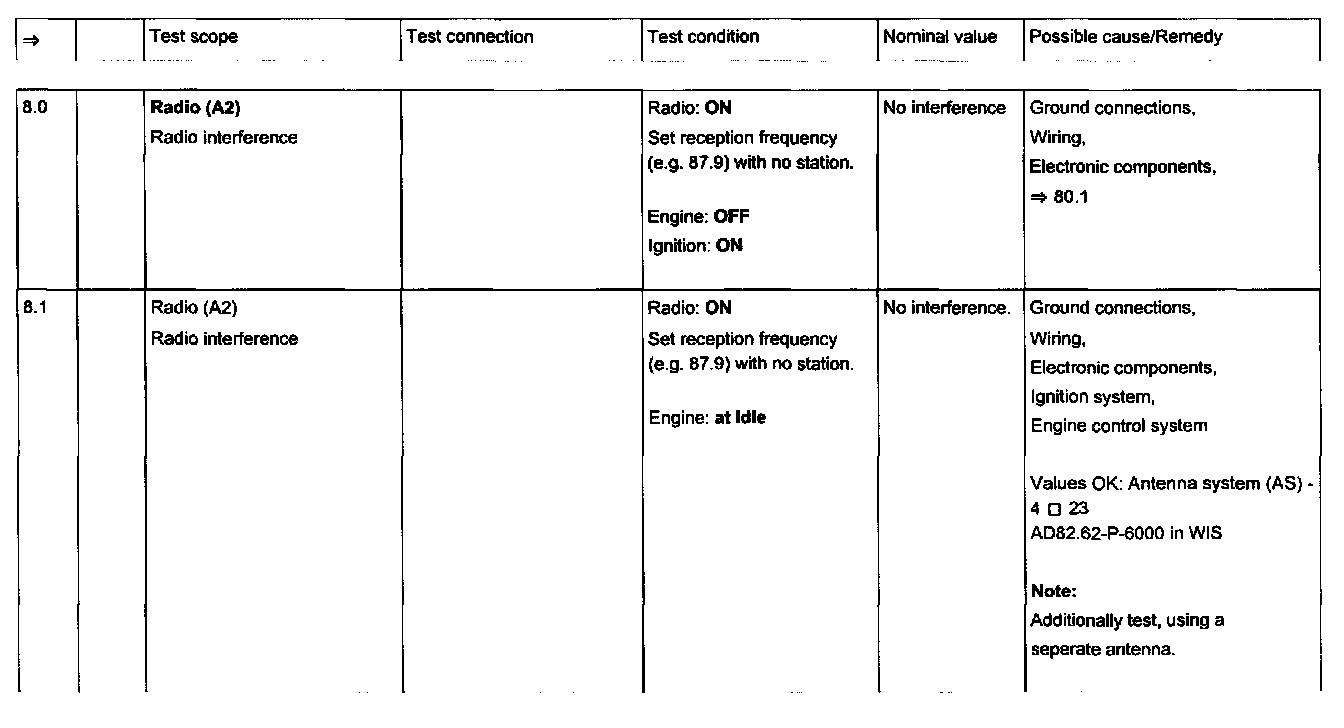

Test Step 8.0 - 8.1

Test Step 8.0 - 8.1:
