Removal and Replacement

AR82.60-P-7502Q Remove/Install Radio
- with CODE (756) MB Audio 10 CD radio with TP/RDS







DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.

1. Disconnect ground cable of battery

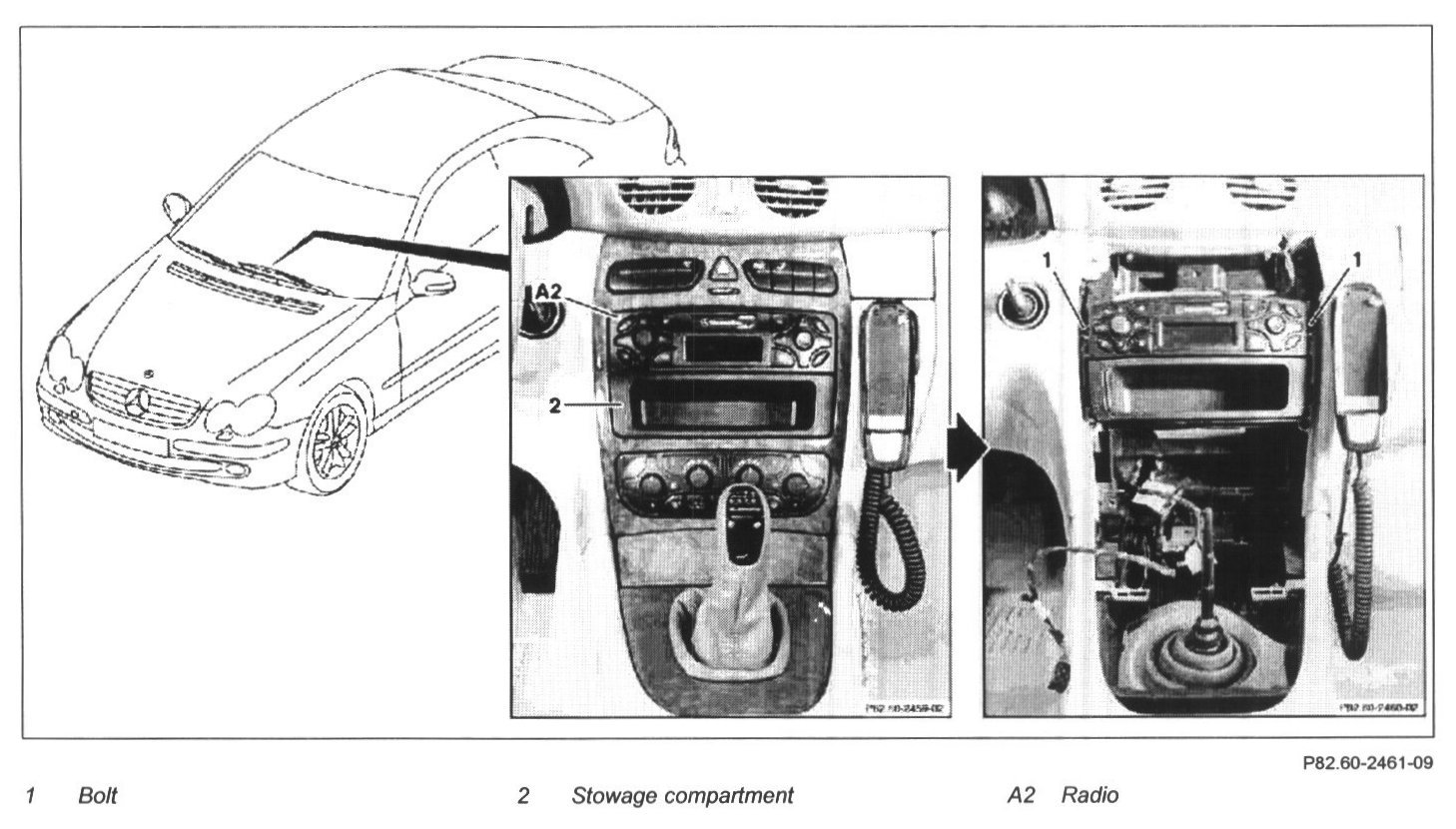

2. Remove bolts (1)
3. Pull out radio (A2) and stowage compartment (2)
4. Unplug fiber optic cable connector from the radio (A2)

5. Cover fiber optic cable
With "portable CTEL" UPCI system code 388, With Sound system code 810, With 6-disc CD changer 819, With voice control system (VCS) code 813

Note: Install caps on fiber optic cable connector and electrical connection

CAUTION! Do not kink or stretch D2B fiber optic cable.

6. Detach coupling from radio (A2)
7. Install in the reverse order
8. Check for proper function
