Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Service and Repair >> Procedures >> AZ82.60-P-0006Q Retrofit Satellite Radio (SDAR)

AZ82.60-P-0006Q Retrofit Satellite Radio (SDAR)



AZ82.60-P-0006Q Retrofit Satellite Radio (SDAR)
- with CODE (810) Sound system

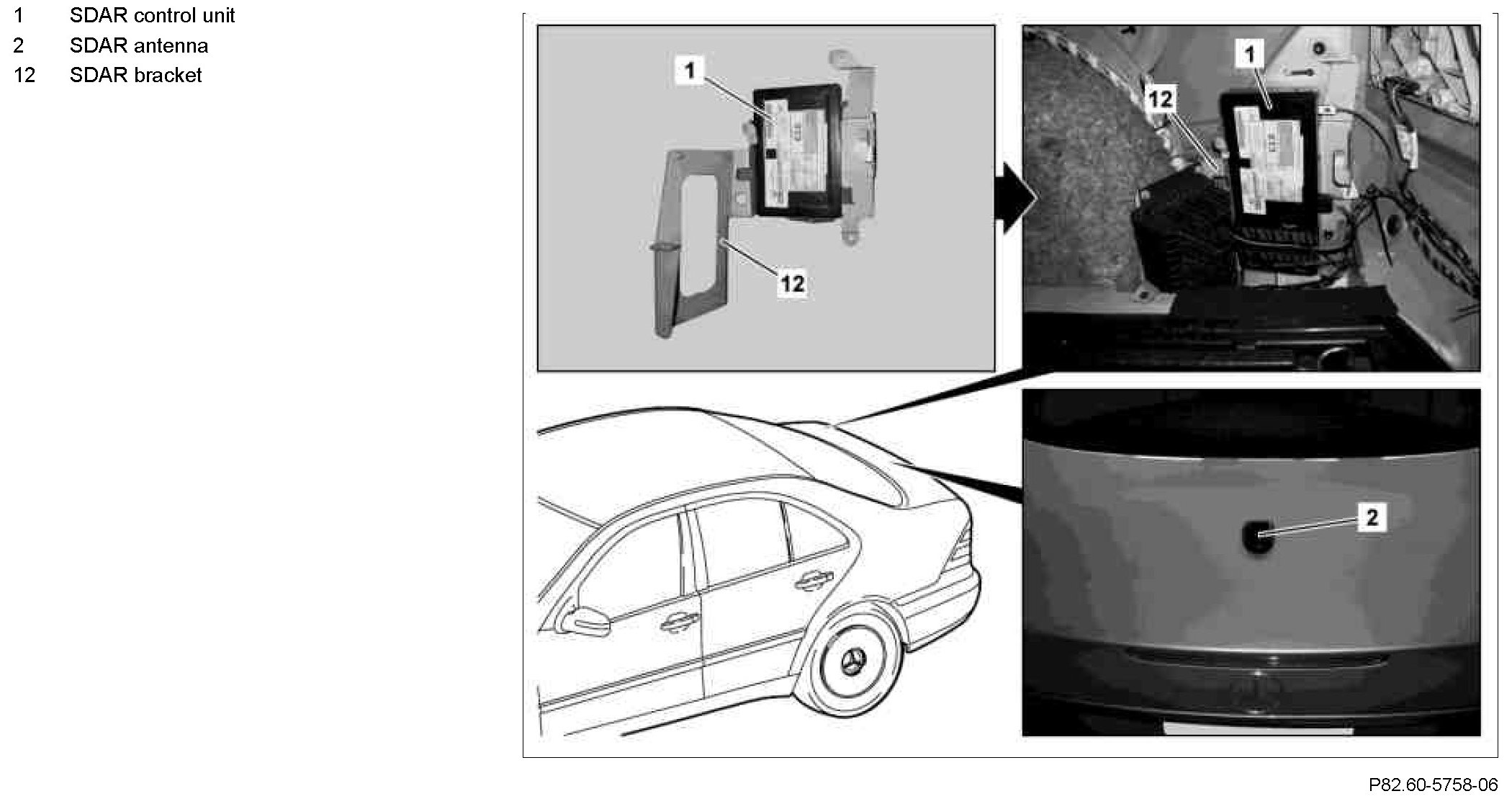

Component Identification:




Component Identification:

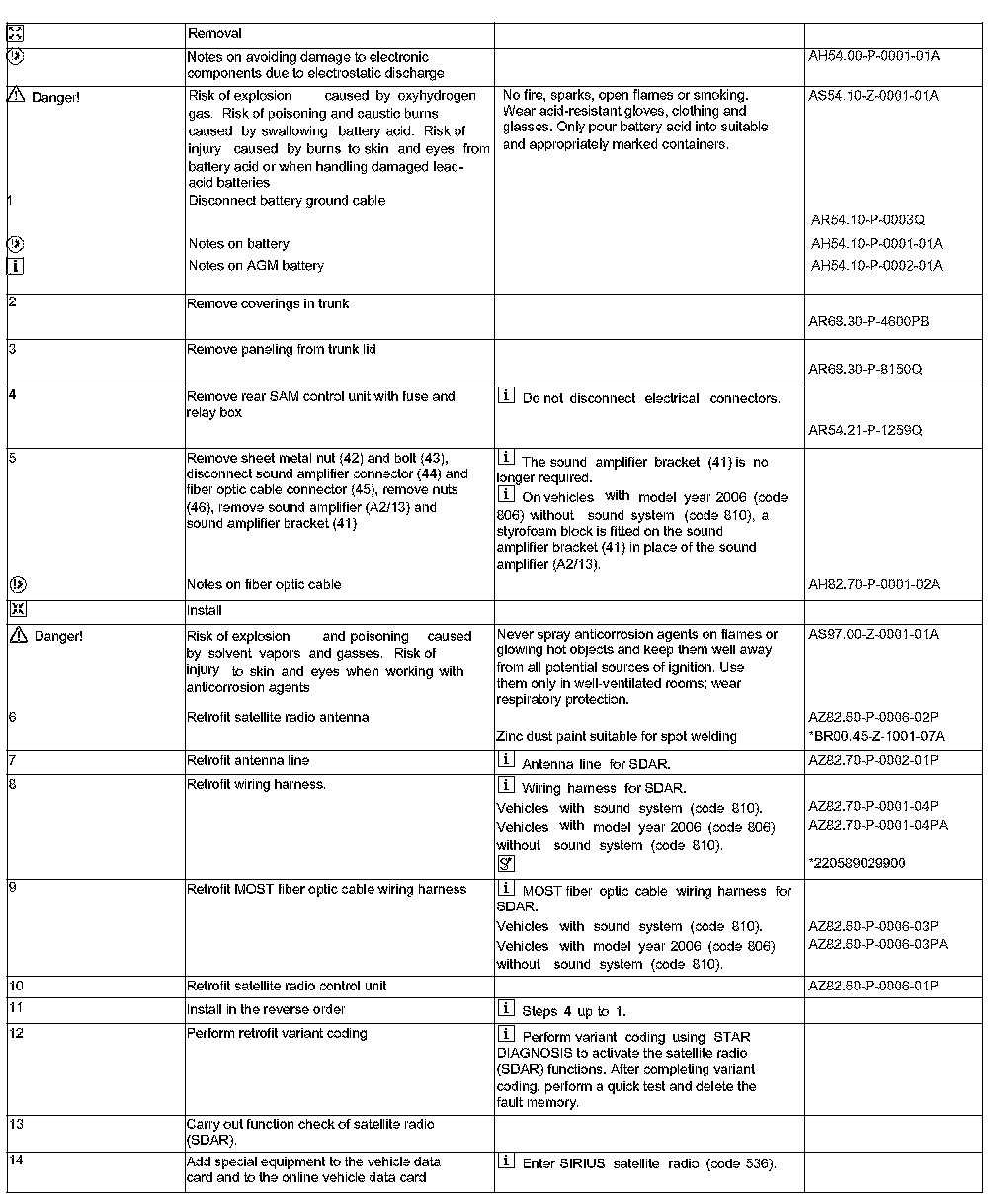

Steps 1 - 14:

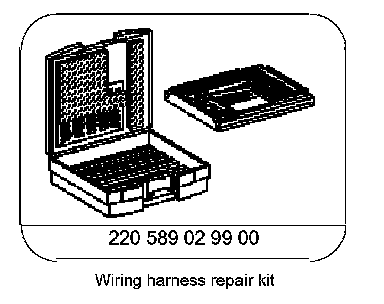

Special Tools:

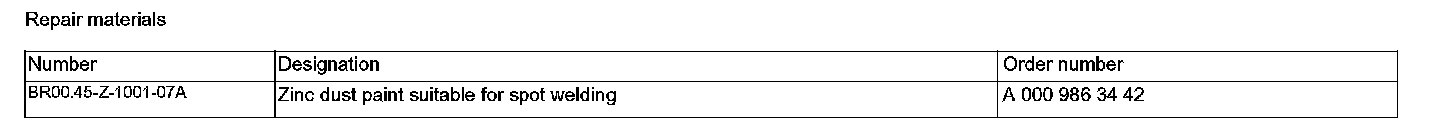

Repair Materials:

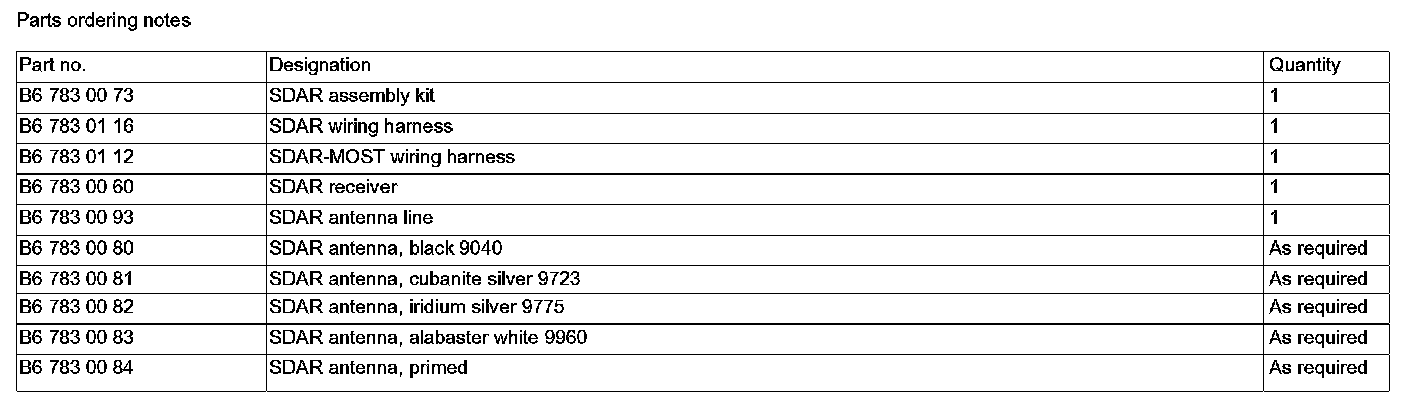

Parts Ordering Notes:
