AN68.05-P-0001-01Q Retrofit Garage Door Opener

AN68.05-P-0001-01Q Retrofit Garage Door Opener
- 209.365/375 1#

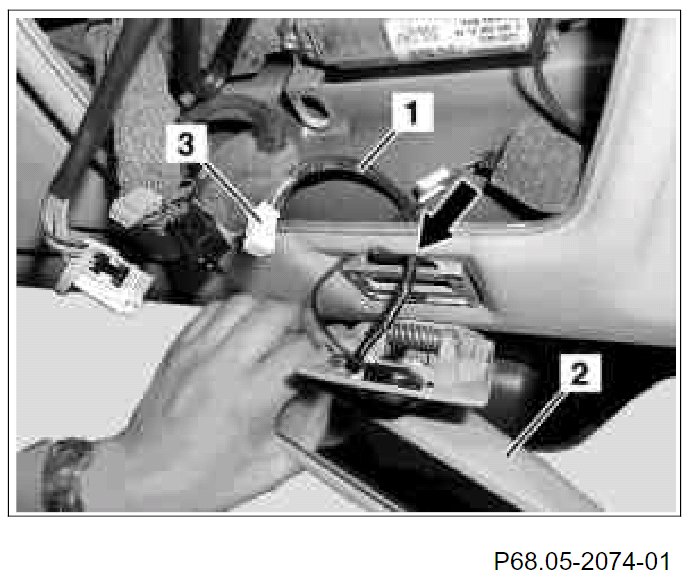

1. Route lead (1) for garage door opener (2) through opening (see arrow) in headliner.

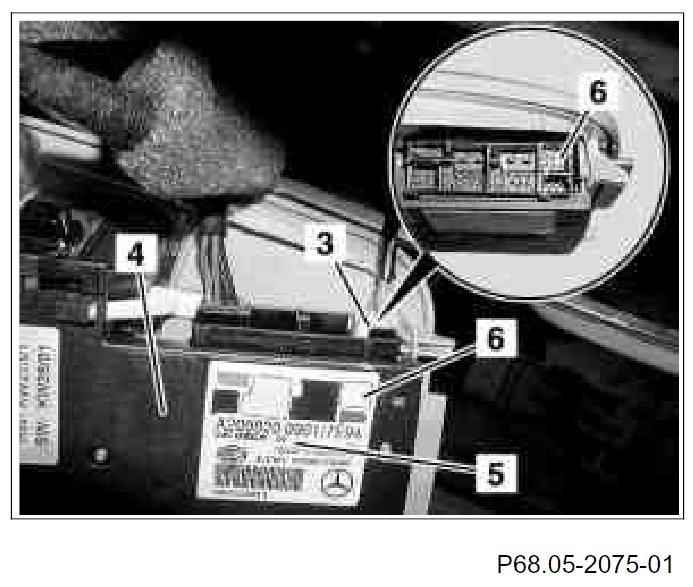

2. Connect white 6-pin connector (3) for garage door opener (2) to overhead control panel control module (4) as shown in figure.
The plug location (6) for the white 6-pin connector (3) is marked in white on the sticker (5).
