Parking Assist Warning Indicator: Locations




Front warning displays

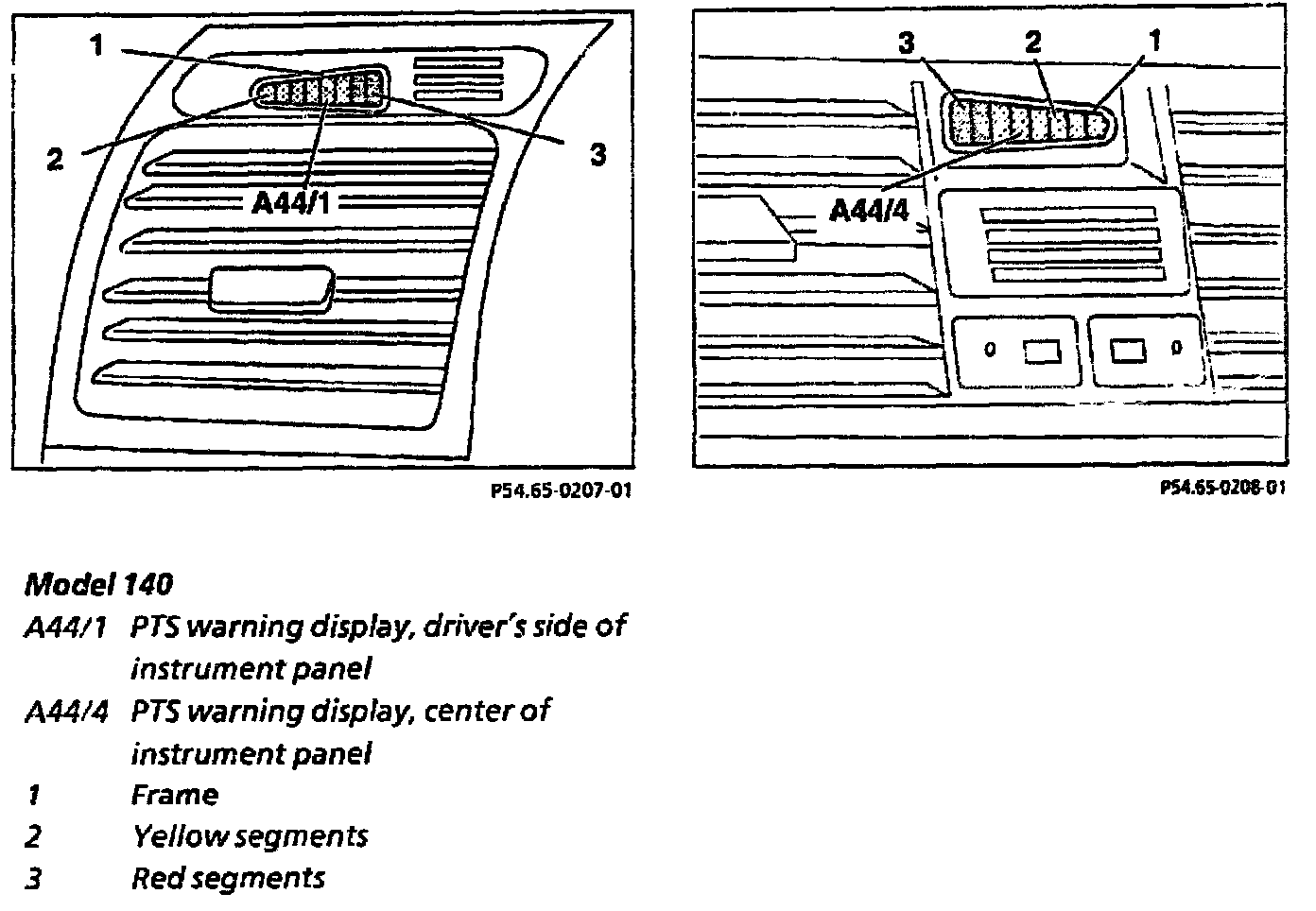

Model 140:

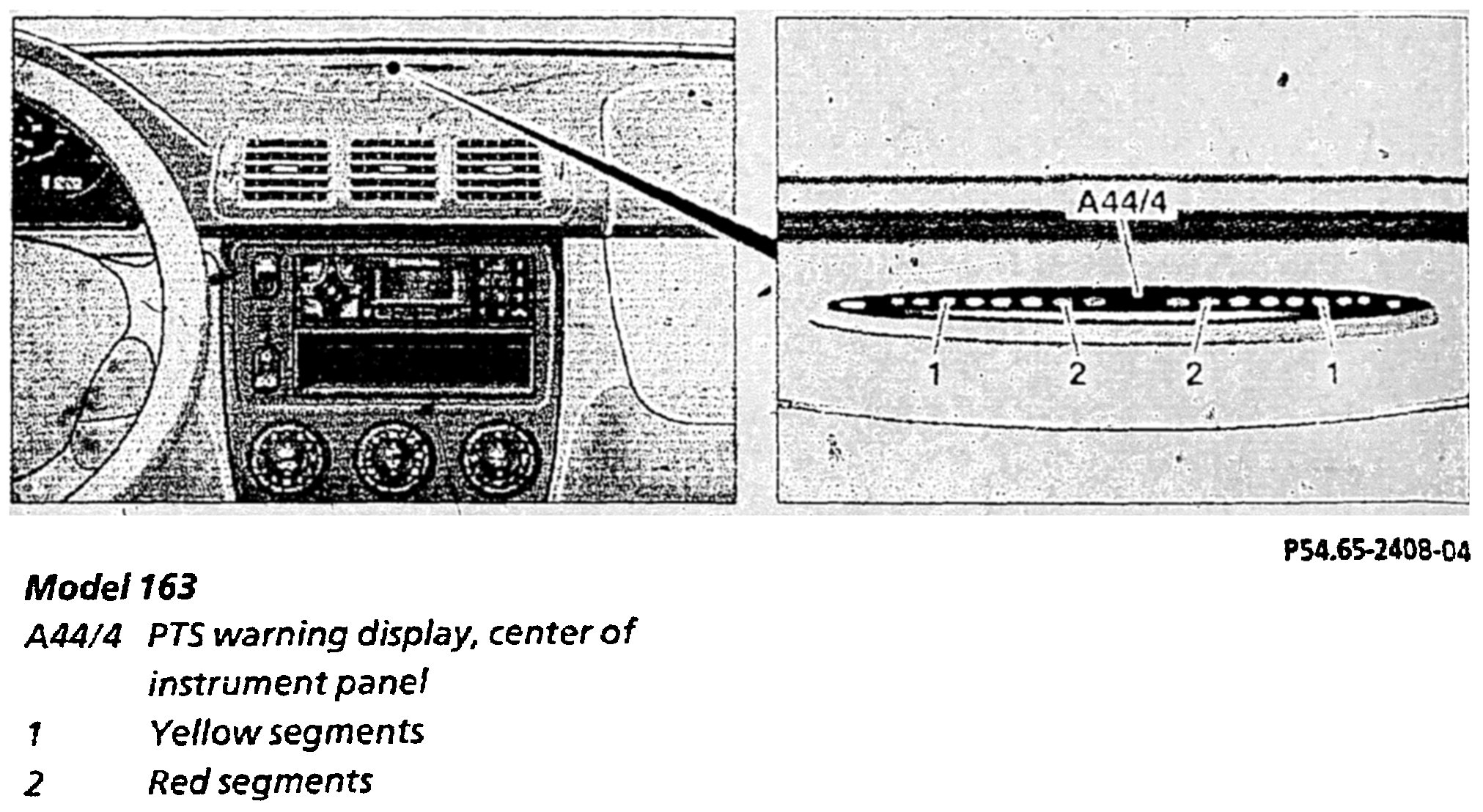

Model 163:

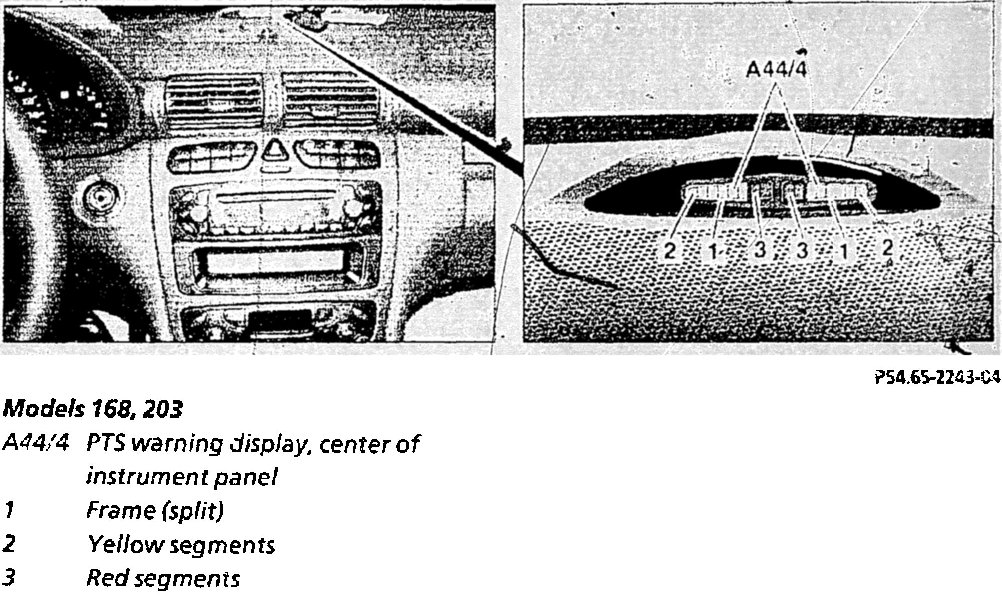

Models 203:

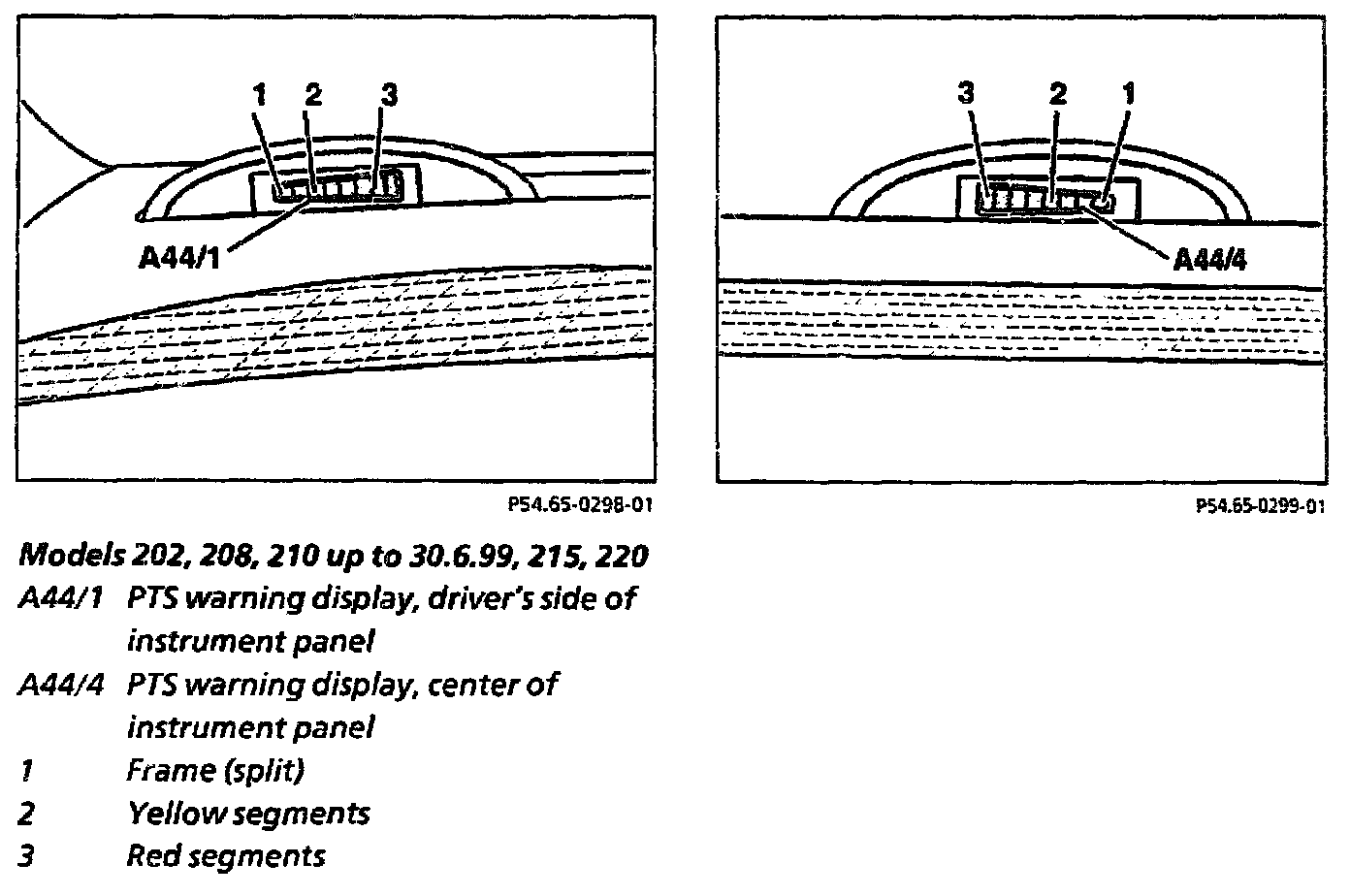

Models 202, 208, 210 up to 30.6.99, 215, 220:

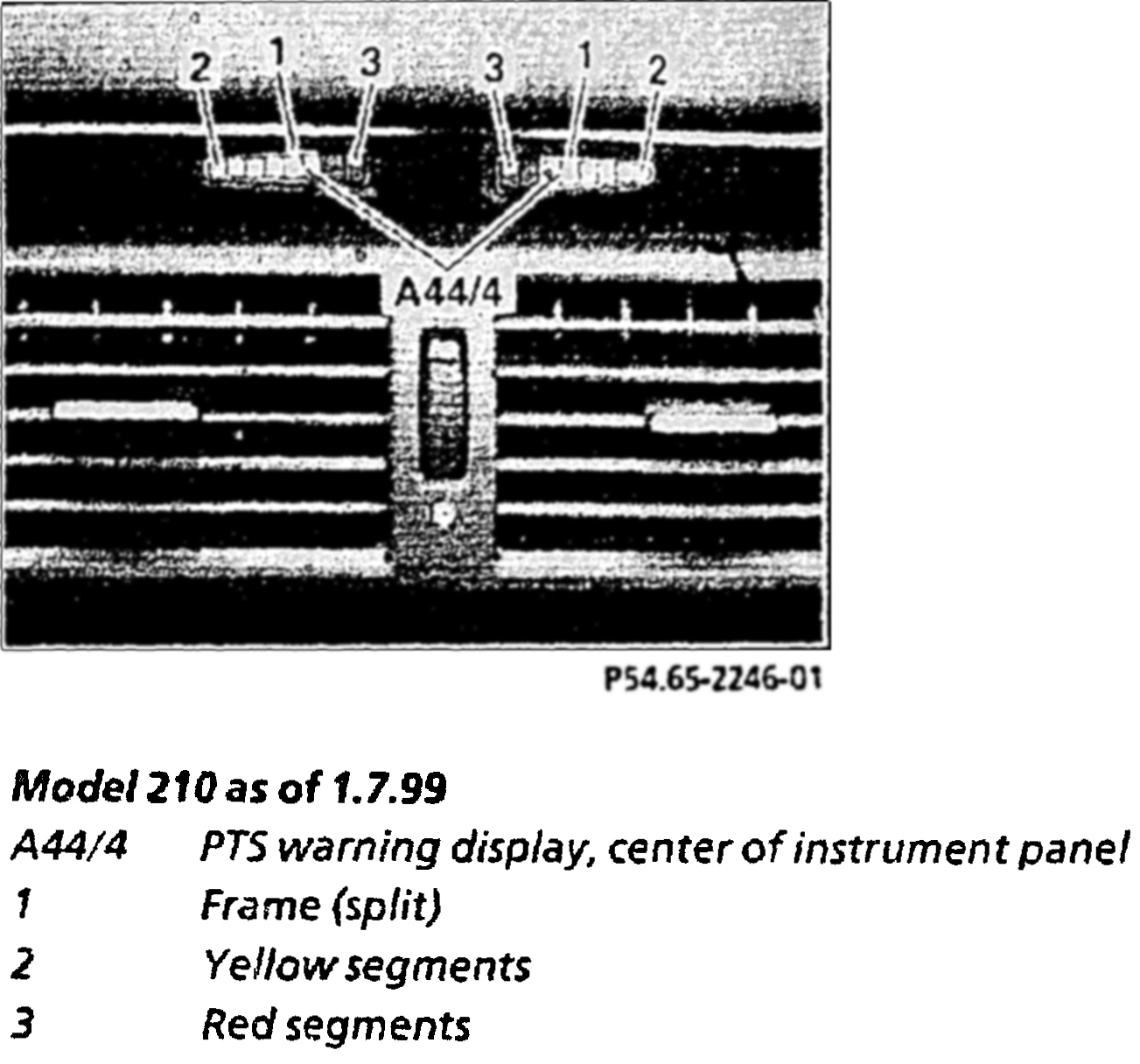

Model 210 As Of 1.7.99:






Rear warning displays

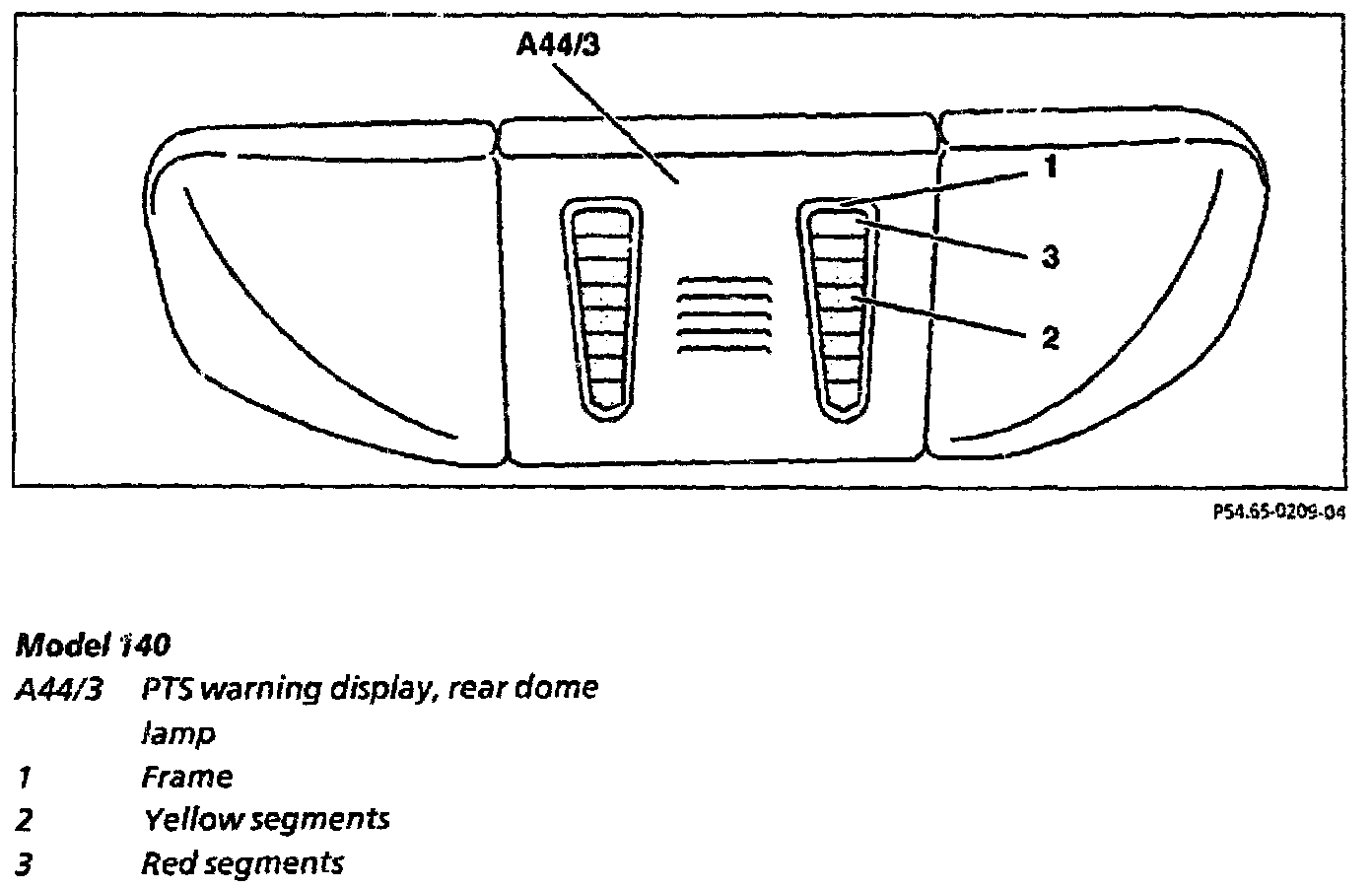

Model 140:

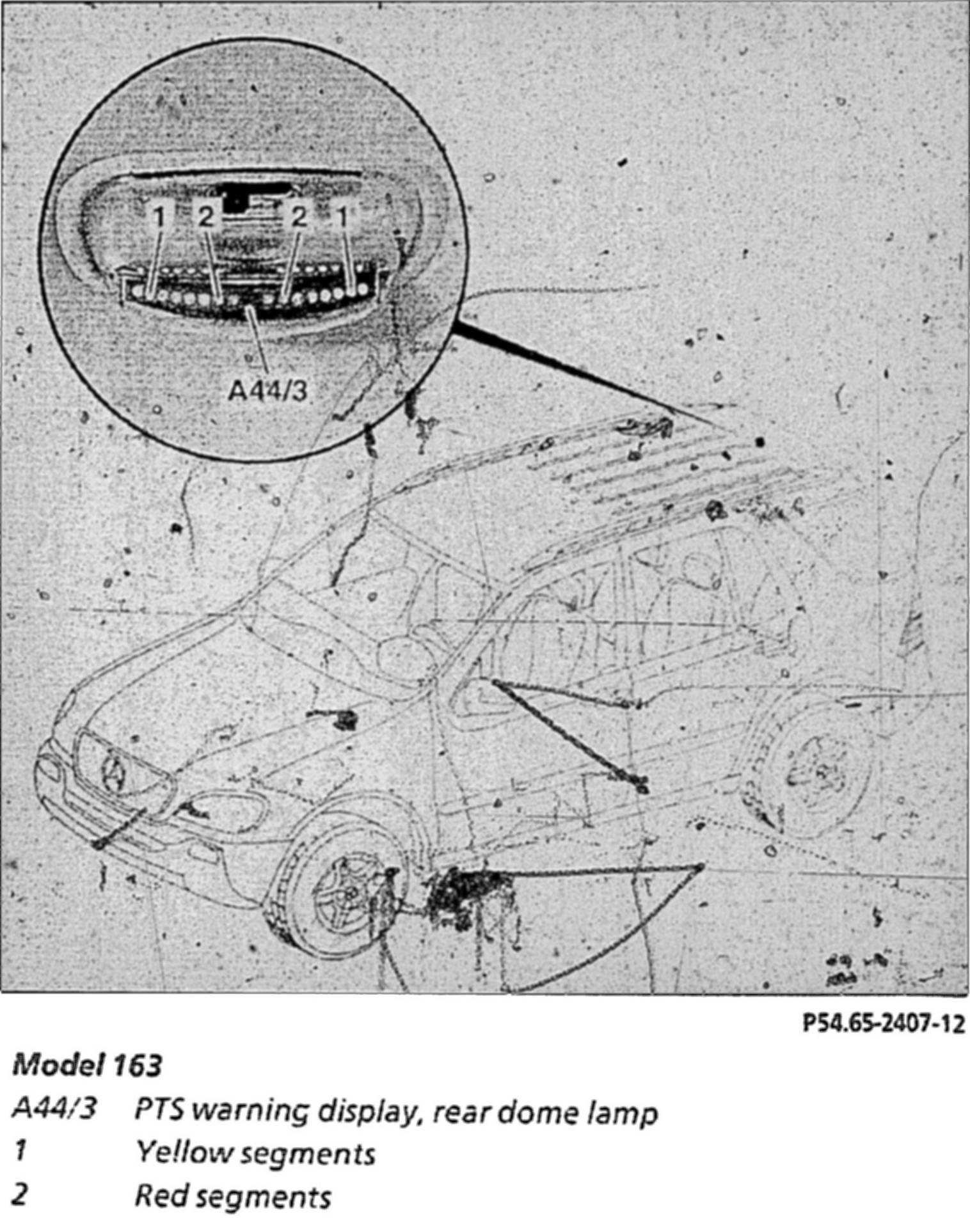

Model 163:






Models 202, 203, 208, 210, 215, 220:
