Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Description and Operation >> GF54.65-P-4100Q PTS Control Module, Location / Task

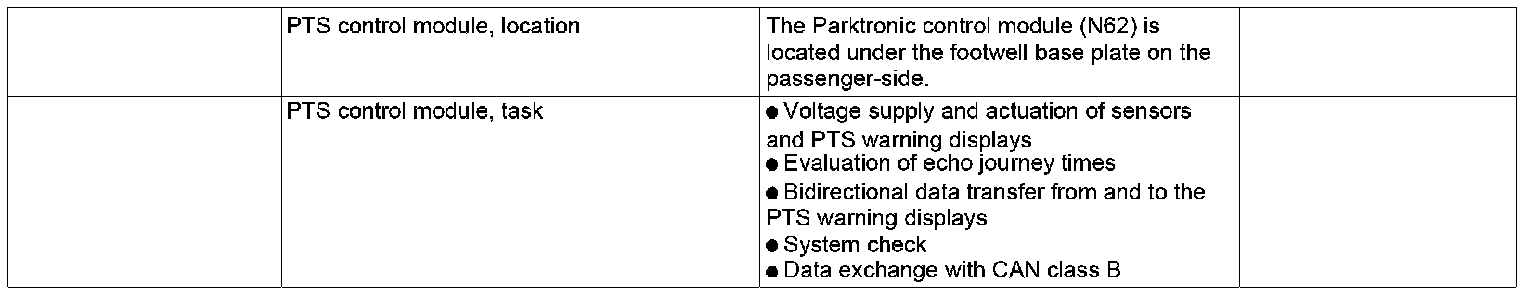

GF54.65-P-4100Q PTS Control Module, Location / Task



GF54.65-P-4100Q PTS Control Module, Location / Task
- with CODE (220a) Parktronic system (PTS)

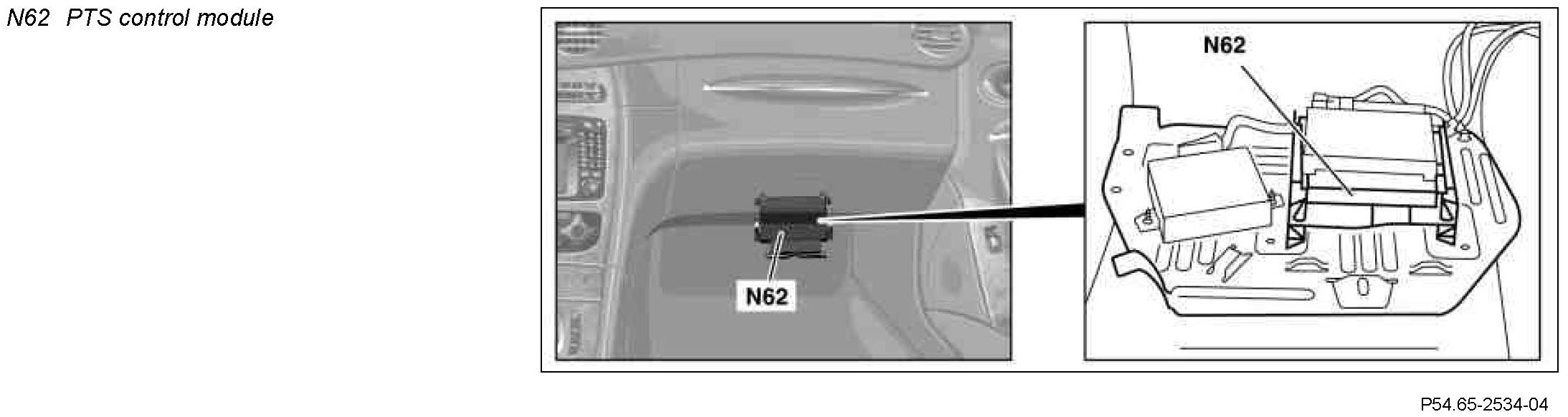

Component Identification:
