AZ82.70-P-0005QQ Retrofit Hands-Free System

AZ82.70-P-0005QQ Retrofit Hands-free System
- MODEL 209 up to 30.11.02
- with CODE (273) Provision for D-network handy telephone
- with CODE (354) CTEL antenna (GSM 900 and 1800 MHz)
for Mercedes-Benz Freisprecheinrichtung FSE10

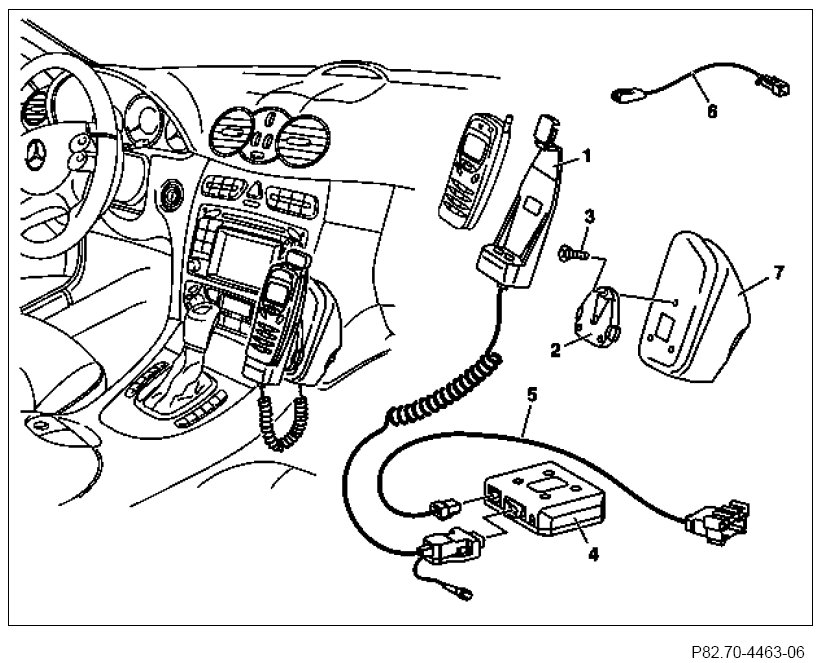

1 Portable CTEL mount (portable CTELspecific)
2 Base bracket
3 Sheet metal screws (3)
4 Interface box 5 VDA connection line
6 Microphone
7 Telephone console
