Keyless GO Control Module, Rear PE80.61-U-2102BB

Rear Module Keyless Go Control Module PE80.61-U-2102BB
- except CODE (P98) Black Series
- with CODE (889) Keyless Go
- control module N102

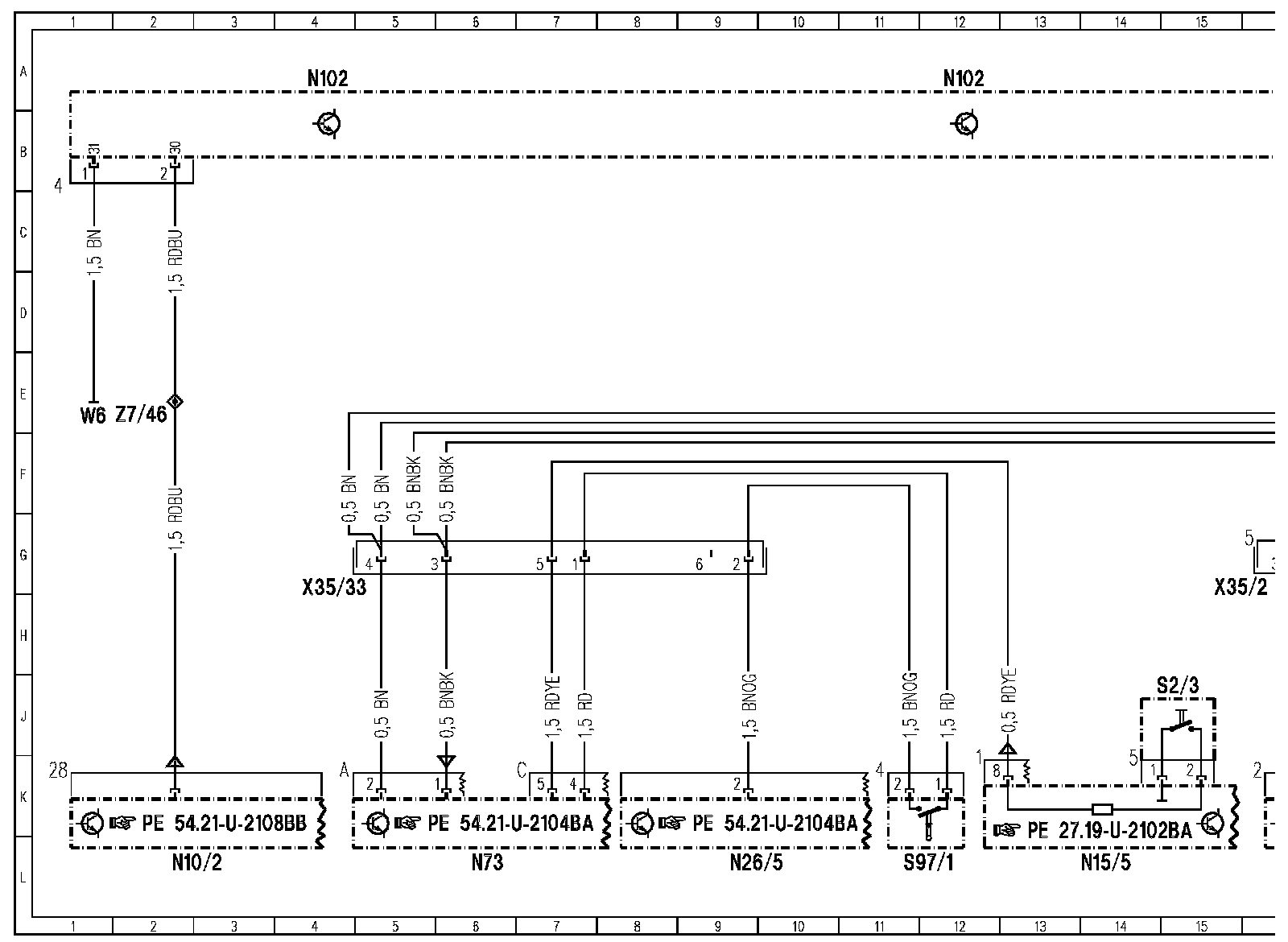

Wiring Diagram (Part 1):

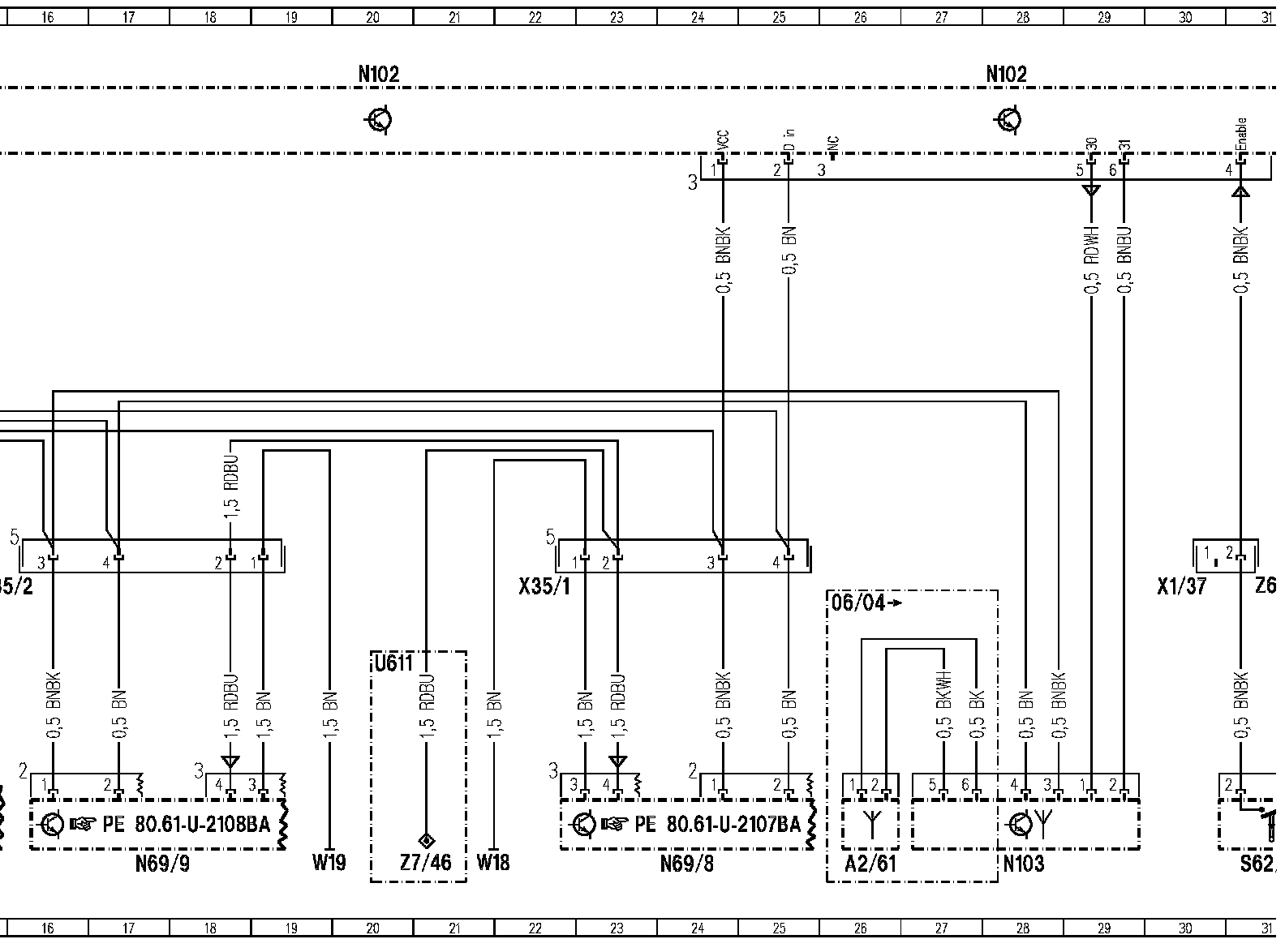

Wiring Diagram (Part 2):

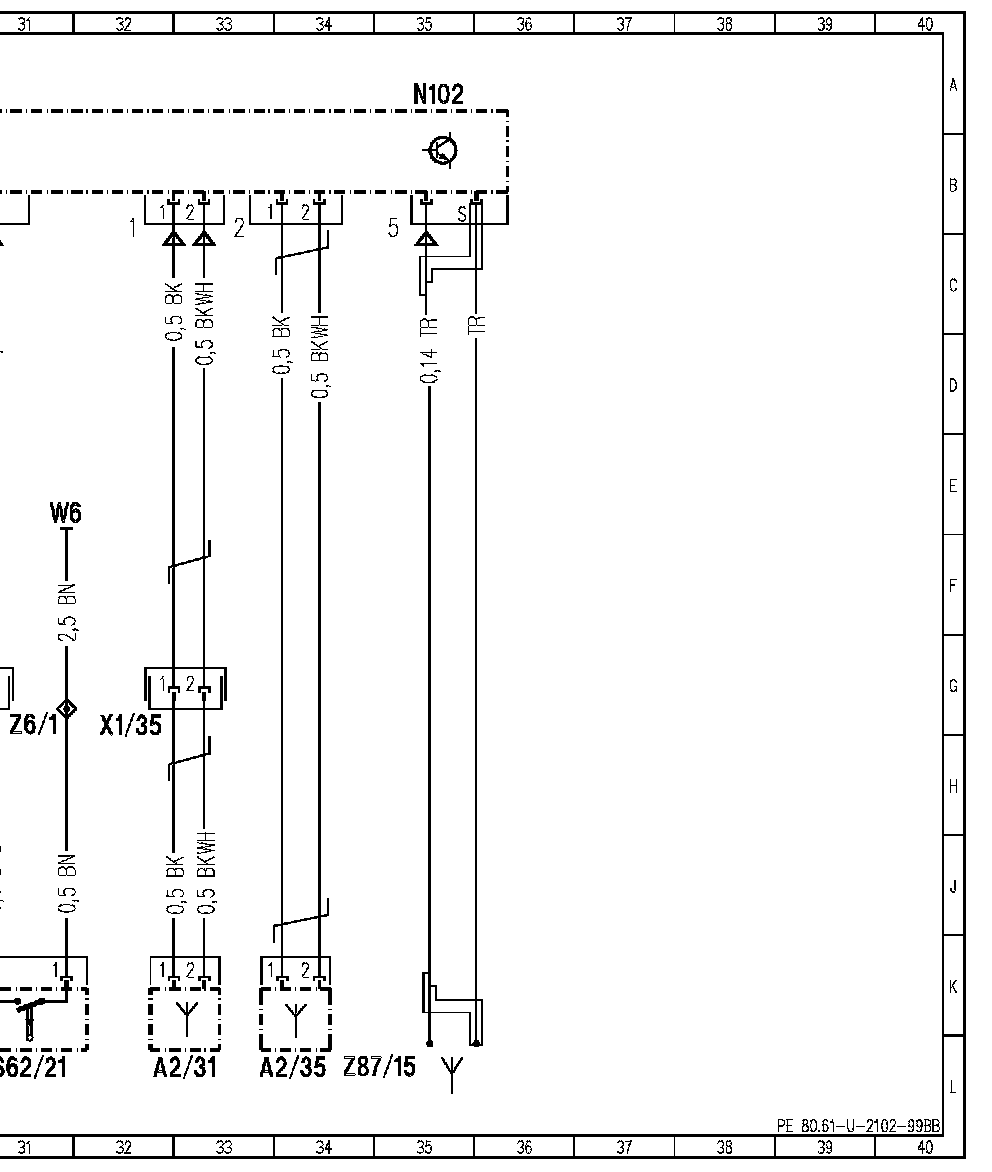

Wiring Diagram (Part 3):

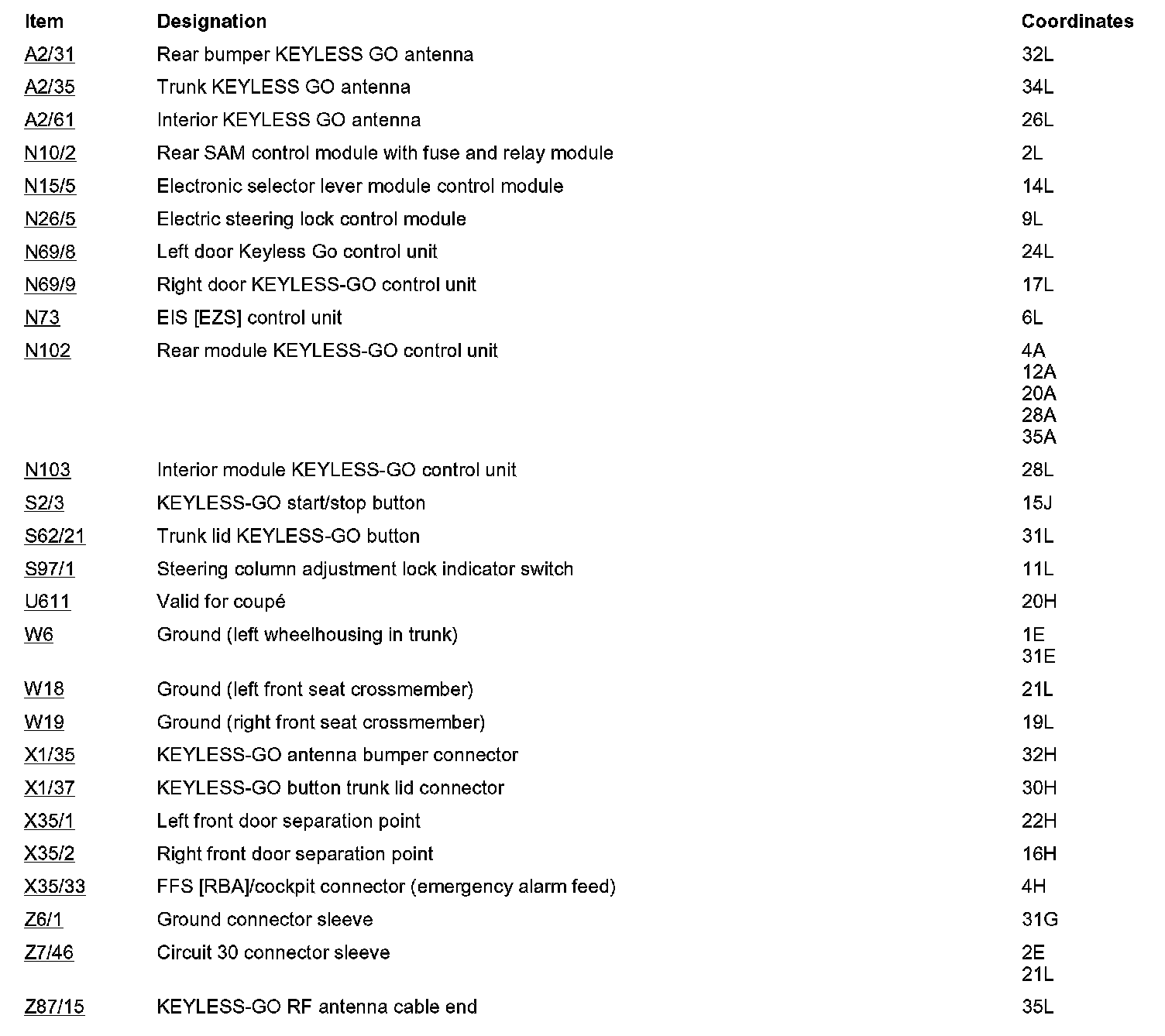

Component Description/Coordinates, A2/31 To Z87/15:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
