Antenna, Navigation: Service and Repair

AN82.61-P-7474-04QQ Retrofit Antenna For Global Positioning System (GPS)
- except CODE (352) COMAND operating and display system

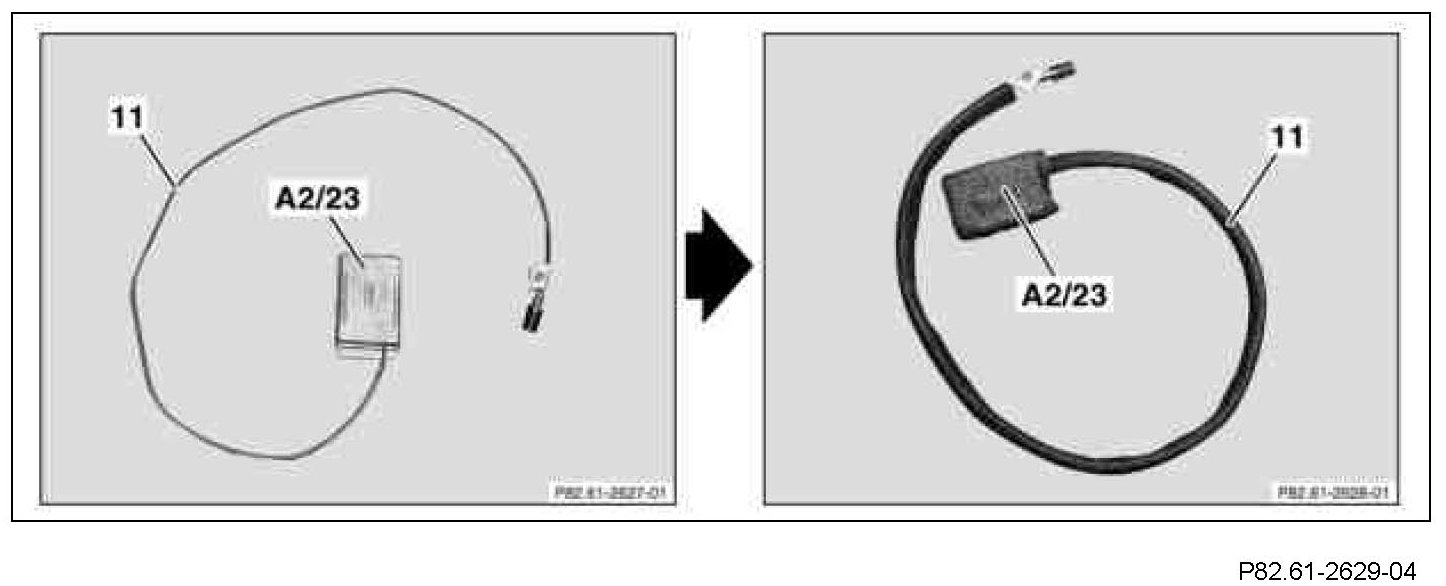

1 Glue felt tape to top of GPS antenna (A2/23).

Top of GPS antenna (A2/23) has no laminated film

2 Wrap felt tape around antenna line (11) of GPS antenna (A2/23).

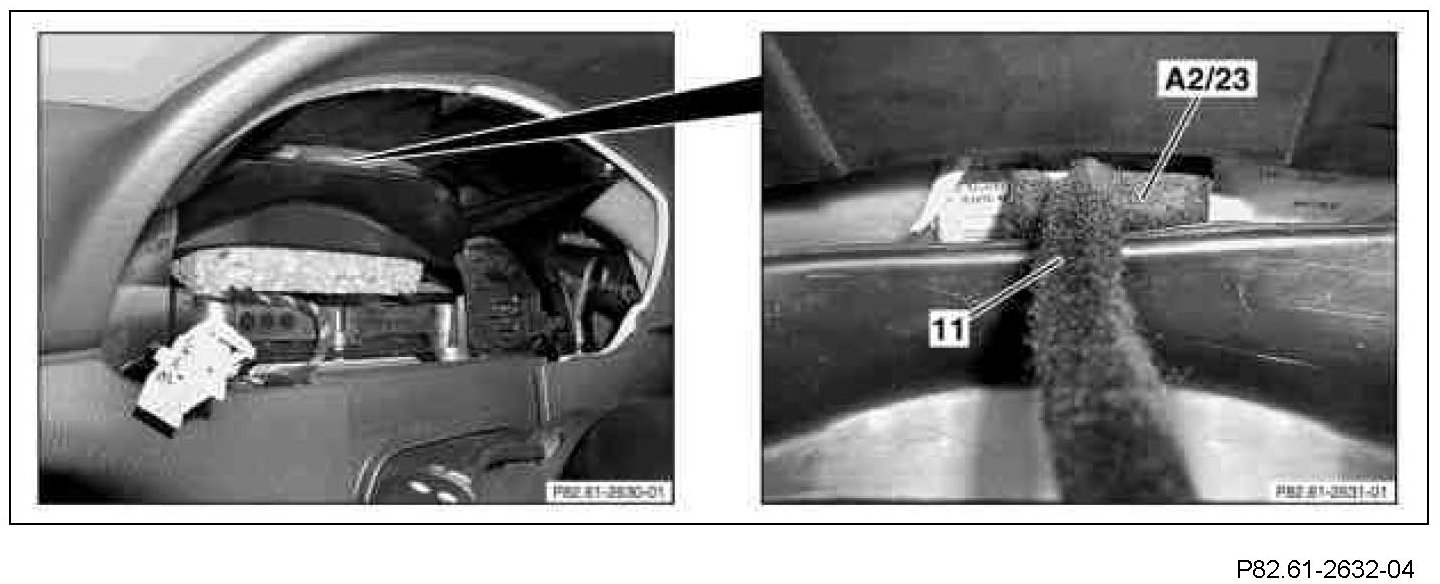

3 Remove laminated film from underside of GPS antenna (A2/23) and glue GPS antenna (A2/23) in top opening of instrument cluster opening.

The GPS antenna (A2/23) opening must point in the direction of the top of the dashboard. The antenna line (11) points in the direction of the steering wheel.

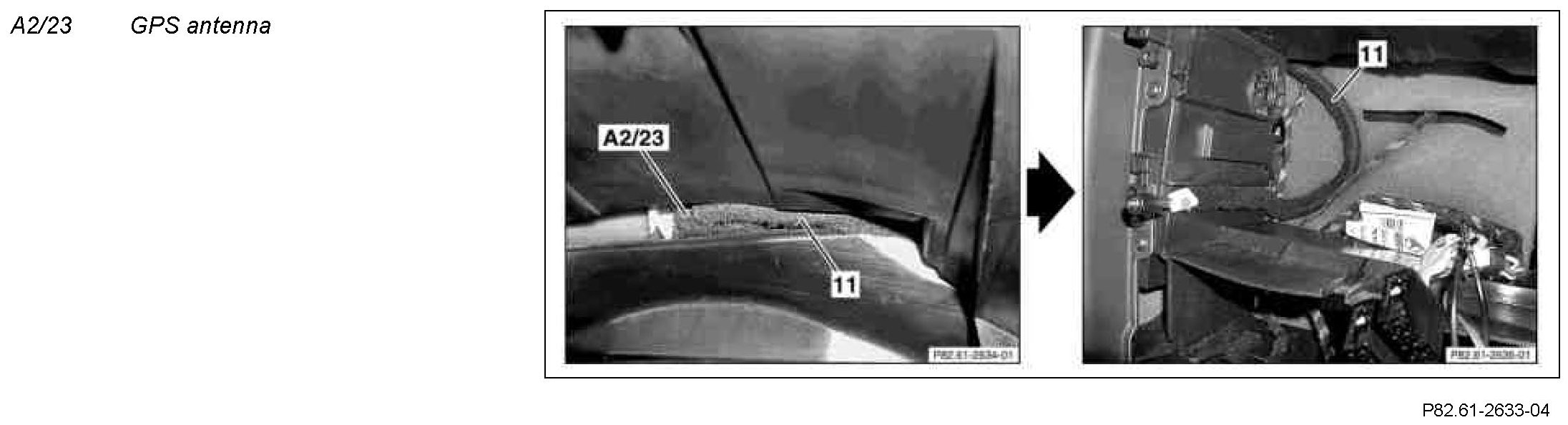

4 Route antenna line (11) to radio recess in center console.

Component Identification:
