AR41.10-P-0100-02I Press Grooved Ball Bearing Out of Rubber Mount of Propeller Shaft, Press In

AR41.10-P-0100-02I Press grooved ball bearing out of rubber mount of propeller shaft, press in

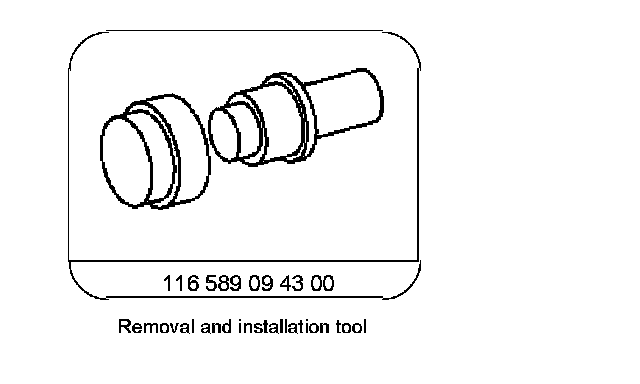

Special Tools:

Component Identification:

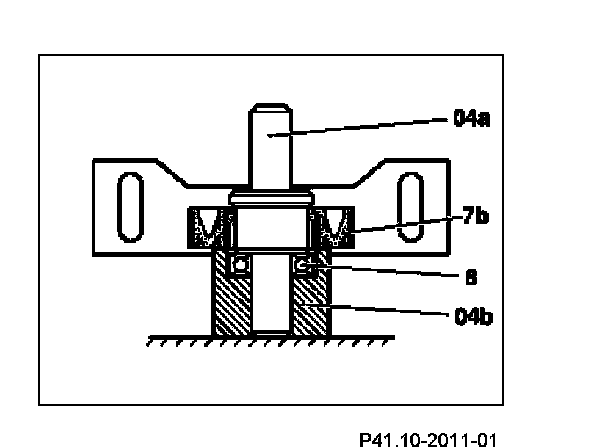

Press out
1 Use the removal and installation tool (04a, 04b) to press the grooved ball bearing (8) out of the rubber mount (7b).

Component Identification:

Pressing in
2 Press grooved ball bearing (8) into the rubber mount (7b) as far as contact surface (arrows) using press out/in tool (04a, 04b).

Ensure that grooved ball bearing (8) is seated correctly in rubber mount (7b).
