Rear Knuckle: Testing and Inspection

Checking Alignment Of Wheel Carrier (removed)



















Removing
1 Remove wheel carrier

Measuring
2 Place wheel earner for measurement with the wheel hub or brake disc on parallel supports

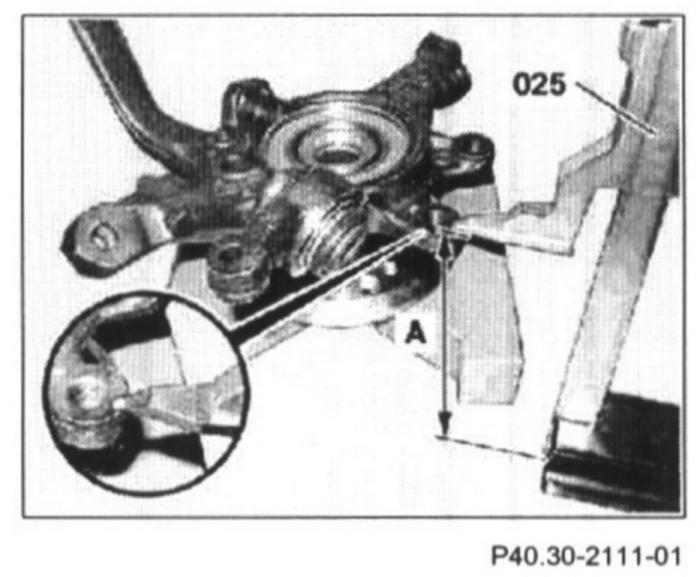

3 Measure and note height dimension "A" as a comparative measurement with the height marking device (025)
- Measure at the flat surface of the brake caliper fixing (arrow)

4 Measure and note height dimension "B1-B4" at the lowest point of the respective bore

NOTE:
- The test values are derived from the difference between height dimension "A" and height dimensions

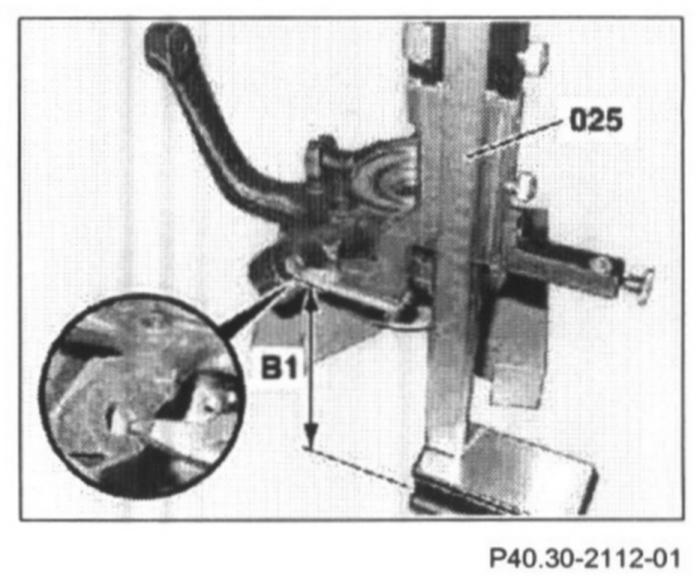

- "B1" = Torque strut fixing

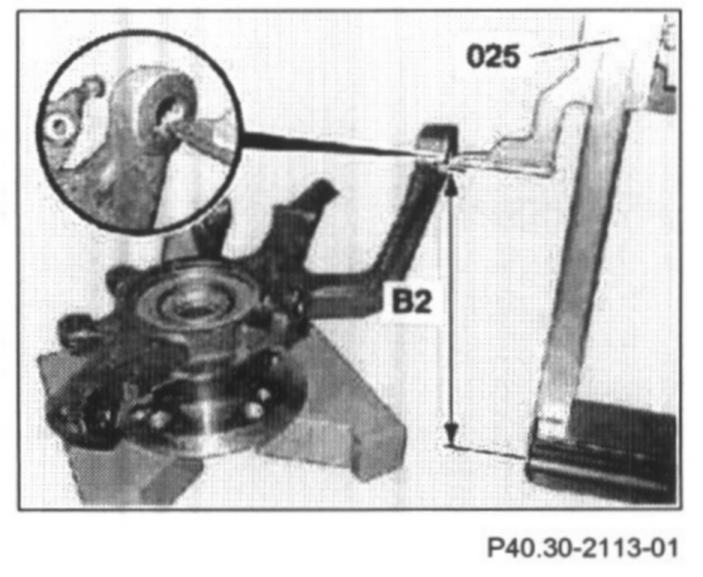

- "B2" = Camber strut fixing

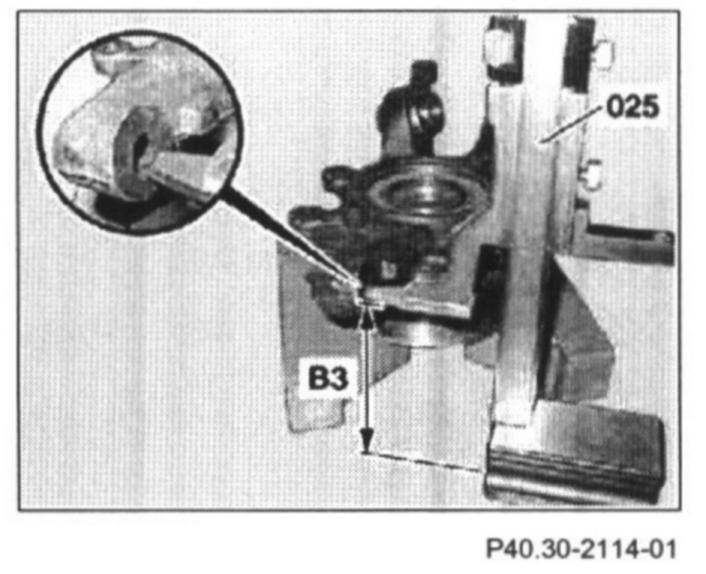

- "B3" = Track rod fixing

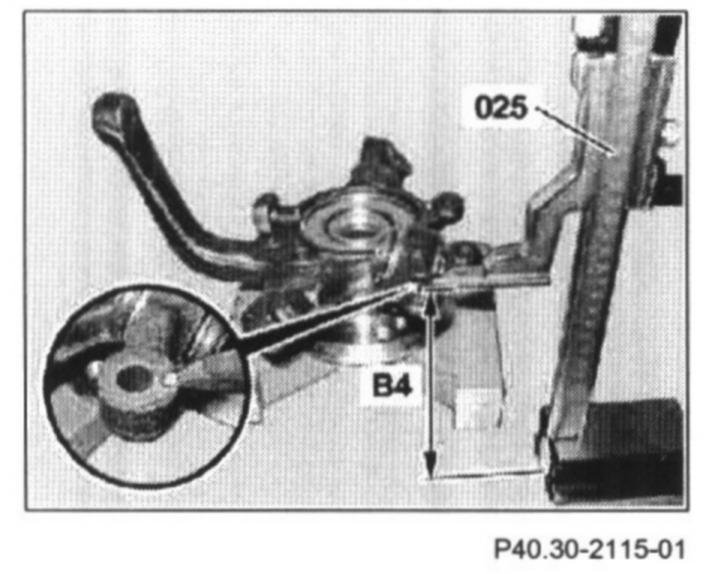

- "B4" = Connecting rod fixing
Torsion bar

Installing
5 Install wheel carrier.
