AR35.20-P-0116I Replace Rear Supporting Joint

Remove/Install Supporting Joint At Wheel Carrier (wheel Carrier Installed)

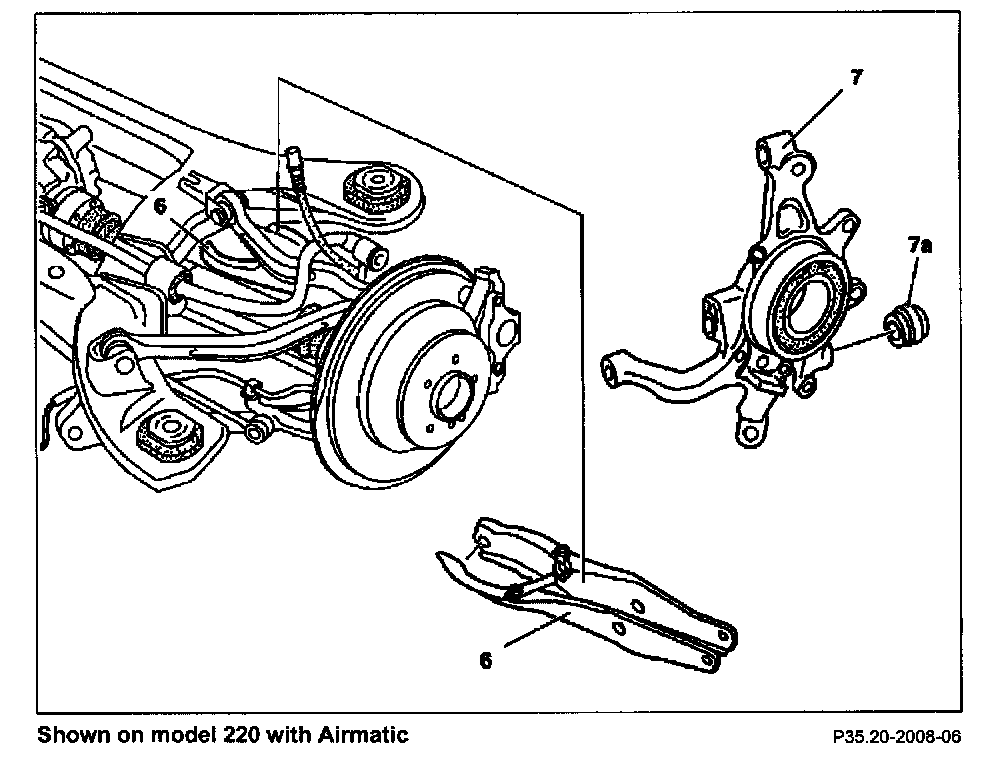

Shown On Model 220 With Airmatic:

CAUTION: When working on the rear axle, ensure that the surfaces of all aluminum parts are kept free of scratches, cracks and indentations. Otherwise the service life of the parts will be affected

1 Remove rear wheels
2 Remove spring link (6)
3 Remove supporting joint (7a) from wheel carrier (7)
4 Install in the reverse order.
