AR33.20-P-0440I Replace Supporting Joint

Replace Supporting Joint
- except CODE (Z07) Top Protection
- except CODE (979) Special protection version

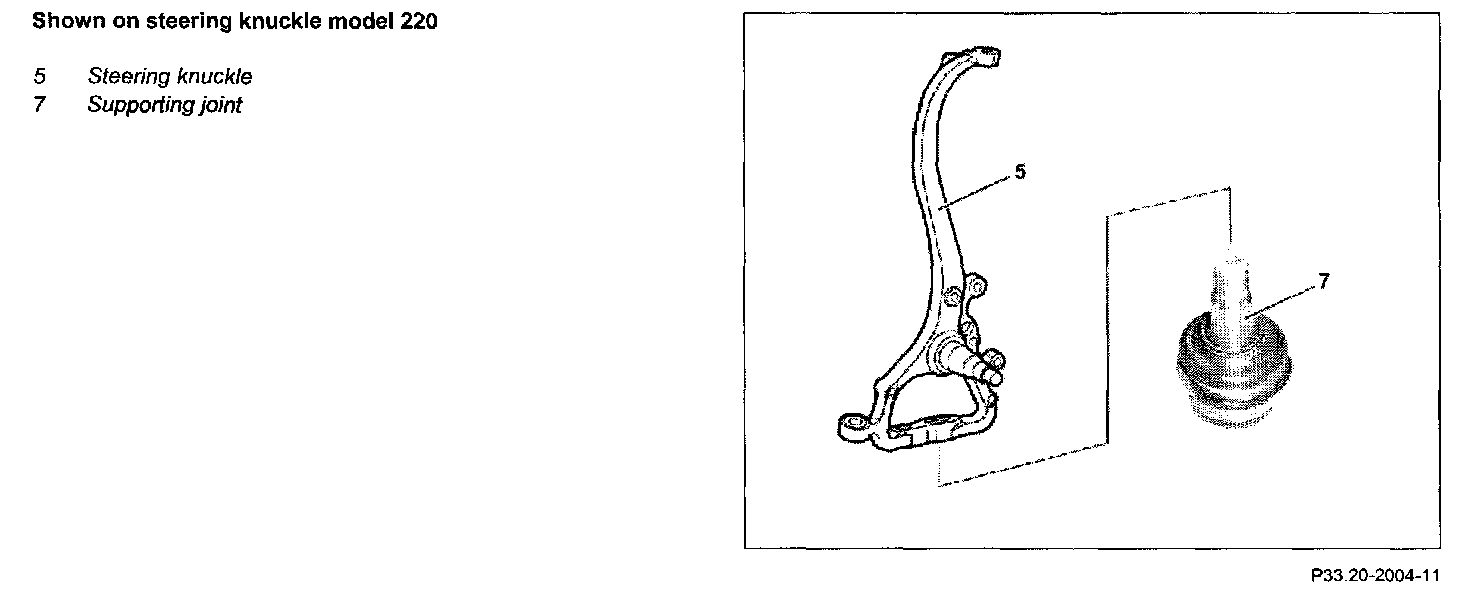

Shown On Steering Knuckle Model 220:

CAUTION: When carrying out service and repair operations on the front axle, always take great care to prevent leaving scratches, notches or fissures in the aluminum components. Otherwise the service life of the parts will be affected

1 Remove steering knuckle (5)

NOTE: Do not remove front wheel hub.

2 Check supporting joint (7)
3 Press the supporting joint (7) out of steering knuckle (5)
4 Install in the reverse order.
