Electrical - Drivers' Door Electrical System Inoperative

Date: July 31, 2003

Order No.: GP-B-54.18/97

Supersedes:

Group: 54

SUBJECT:
Model 215.373/374/375/376/378
Model Years 2000 through 2003

Electrical System in Driver or Front Passenger Door Nonfunctional

If you receive customer reports in the above models of a partial or a complete electrical system malfunction within the driver or front passenger door please refer to WIS document SM54.18-P-0016A for repair procedures.

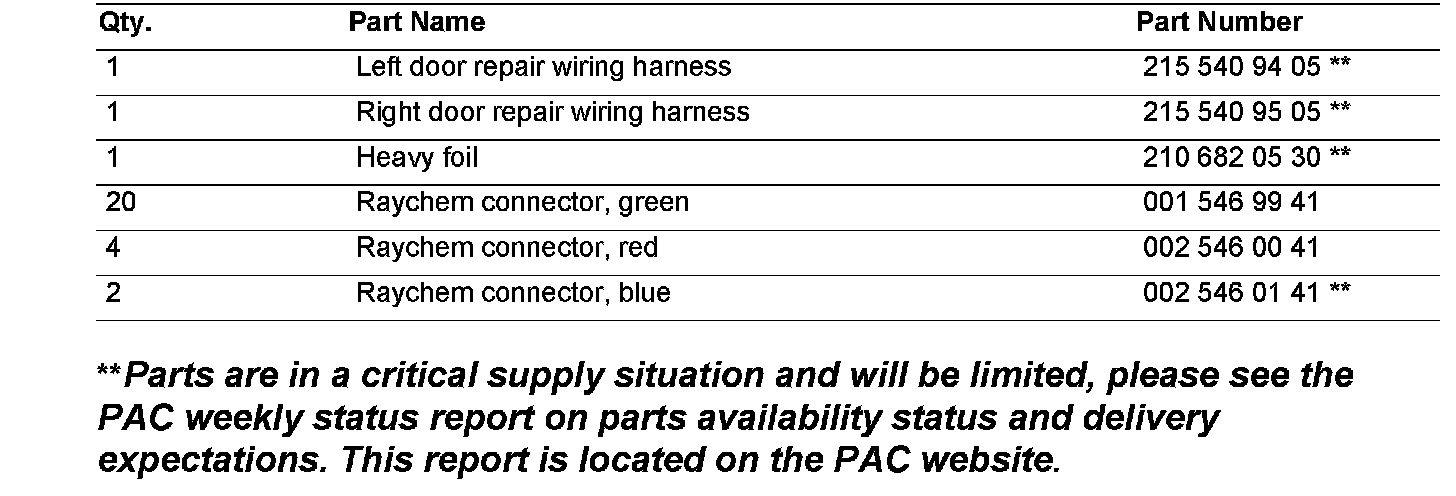

Parts Information

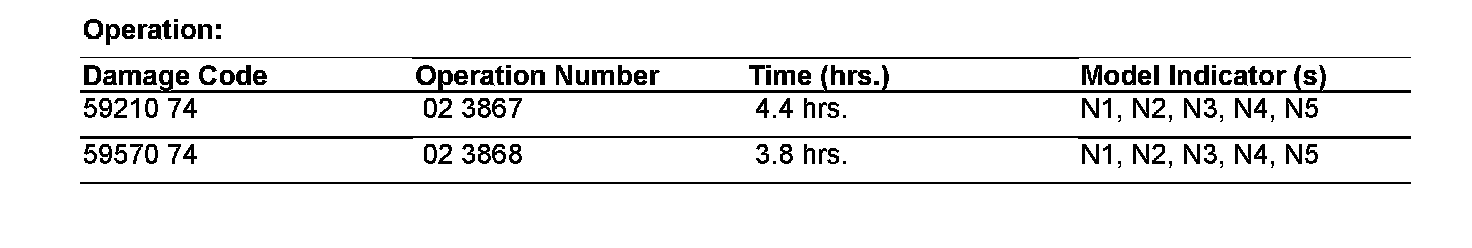

In Case of Warranty
