Climate Control Exhaust Gas Sensor: Service and Repair

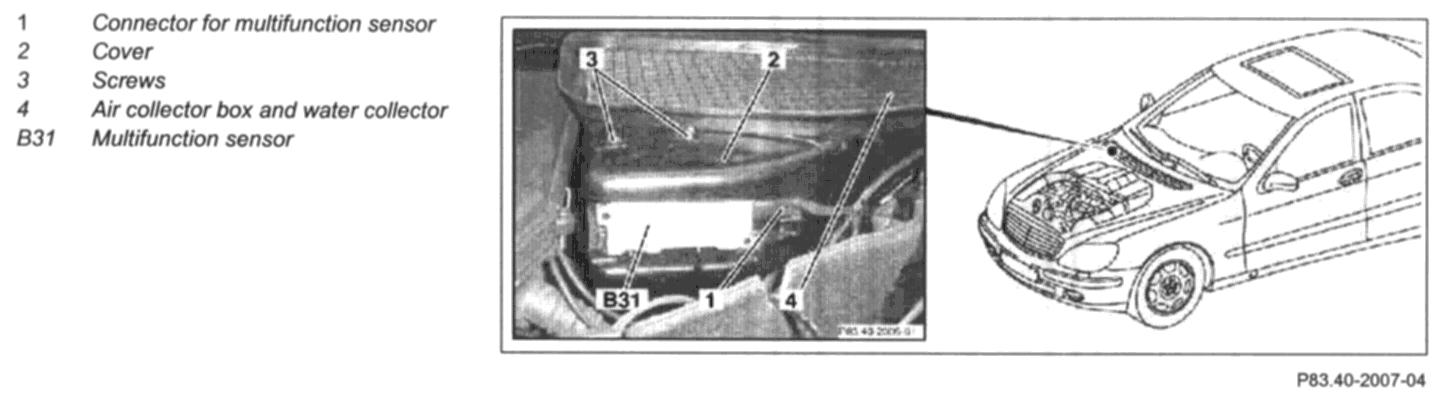

AR83.40-P-6730M Remove/Install Multifunction Sensor







1 Unscrew screws (3)
2 Remove cover (2)
3 Disconnect connector on multifunction sensor (1)
4 Remove multifunction sensor (B31)
5 Install in opposite order.
