Climate Control Exhaust Gas Sensor: Description and Operation
The multifunction sensor measures the humidity in the air, the ambient temperature, pollutant concentration in the outside air and controls the output of the A/C compressor, i.e; provides a control signal to the automatic A/C pushbutton control module for switching the system to 100% recirculated air when required.

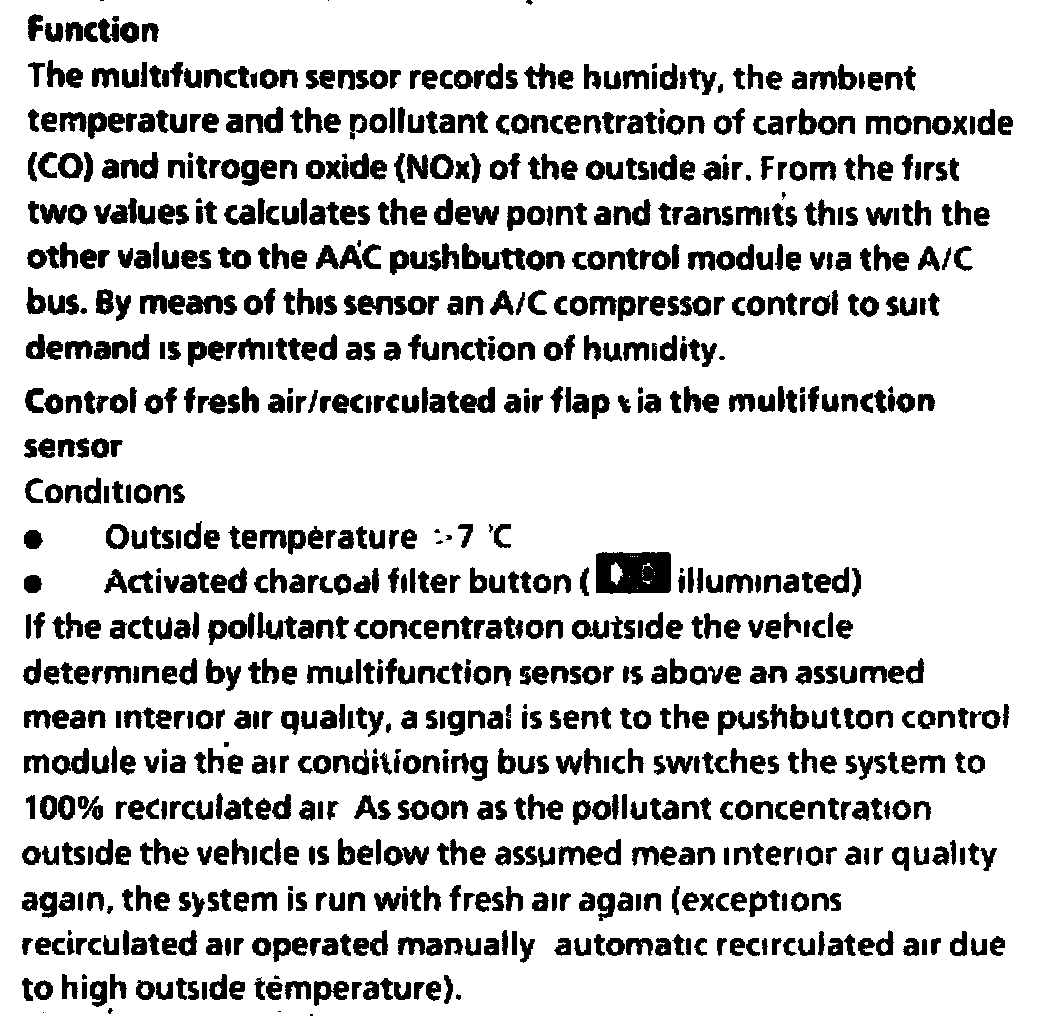

Function:
