Parking Assist Distance Sensor
>>
Locations
Parking Assist Distance Sensor: Locations

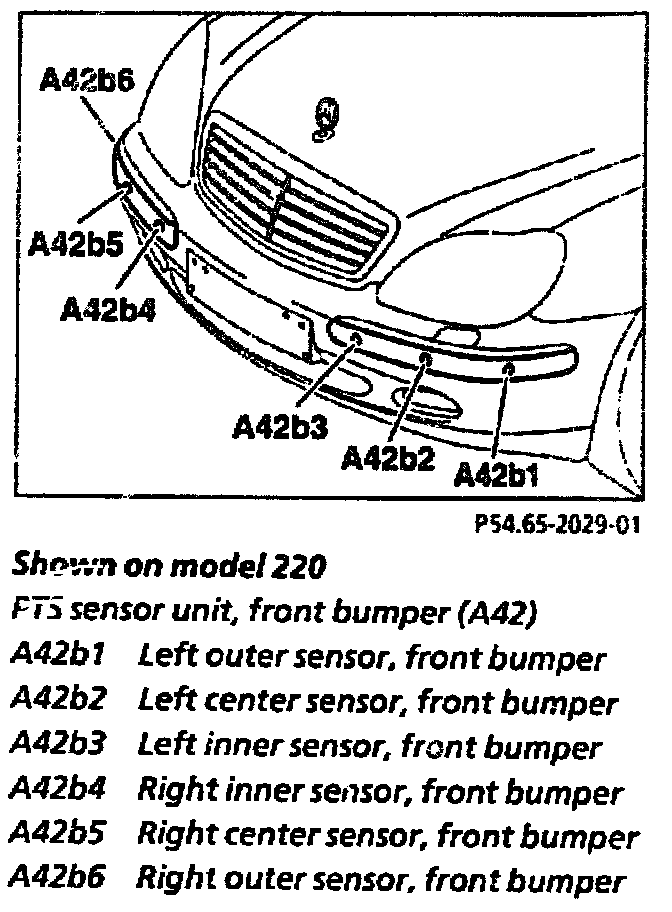

Shown On Model 220:

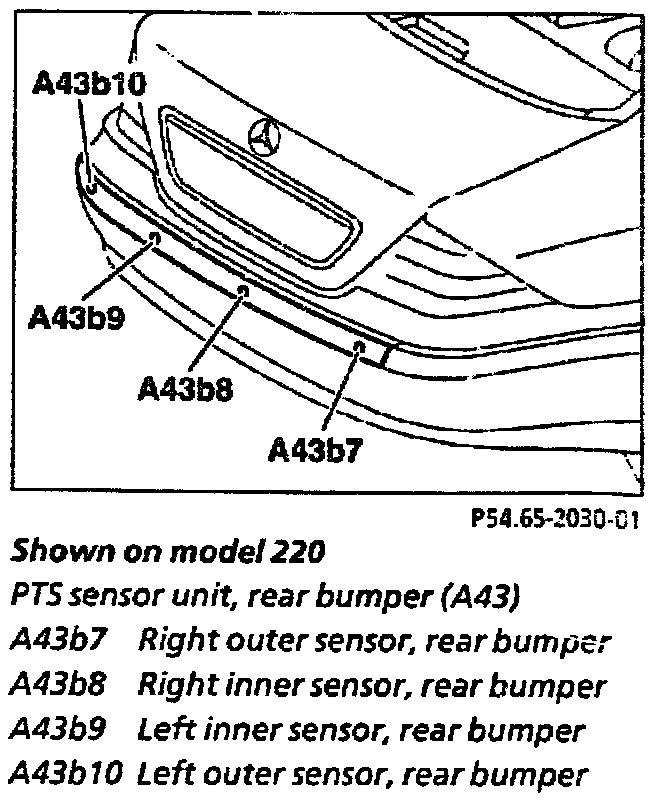

Shown On Model 220:
