Steering Wheel Heater Control Module: Diagrams

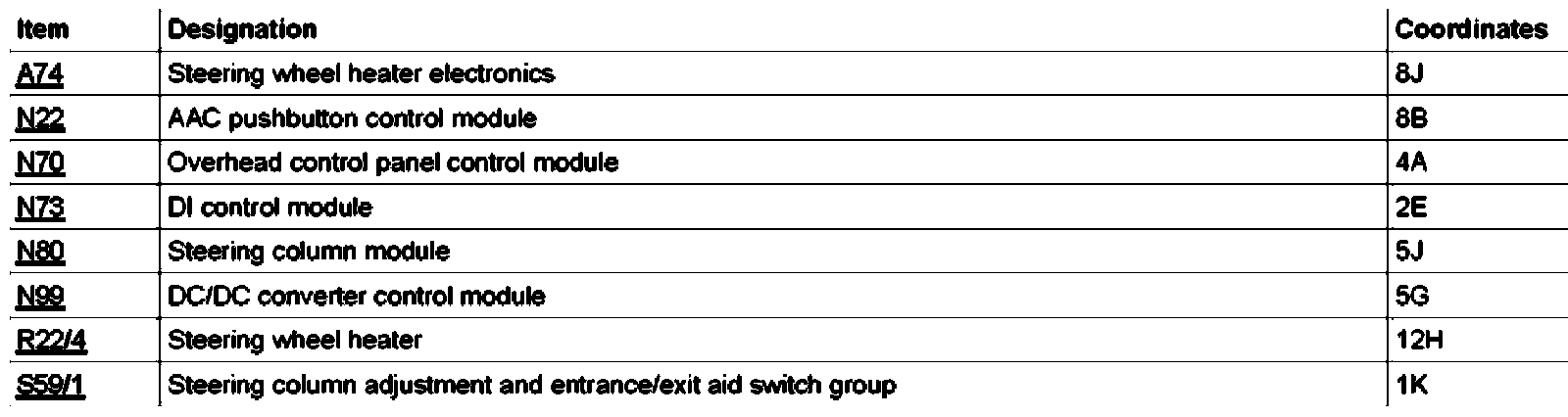

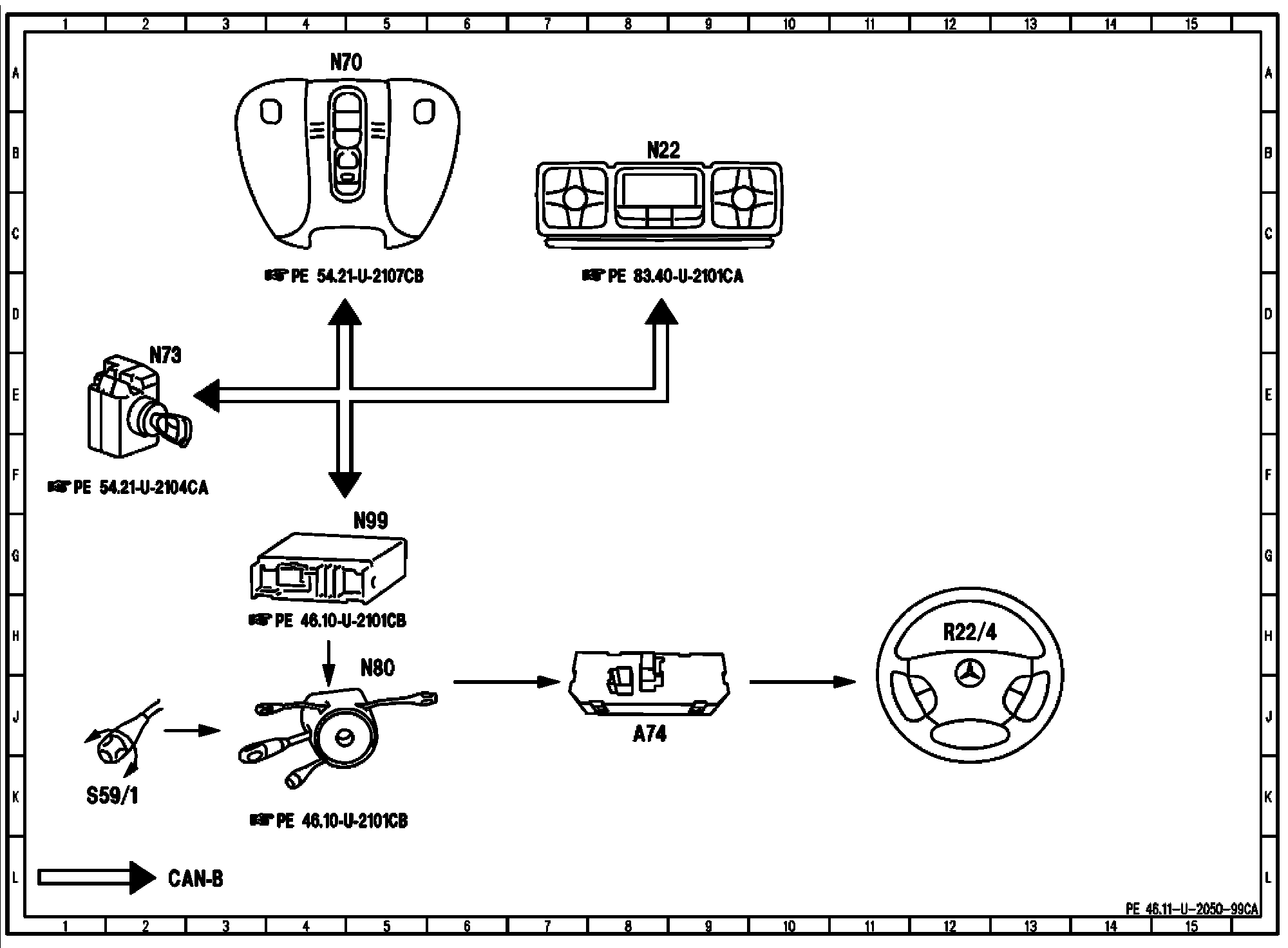

PE46.11-U-2050CA Function Diagram of Electrical System For Steering Wheel Heater
Model 215
