Home >> Mercedes Benz >> 2003 >> CL 55 AMG (215.374) V8-5.5L SC (113.991) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Emergency Contact Module >> Diagrams >> PE82.95-U-2101CE TELE AID System Control Module

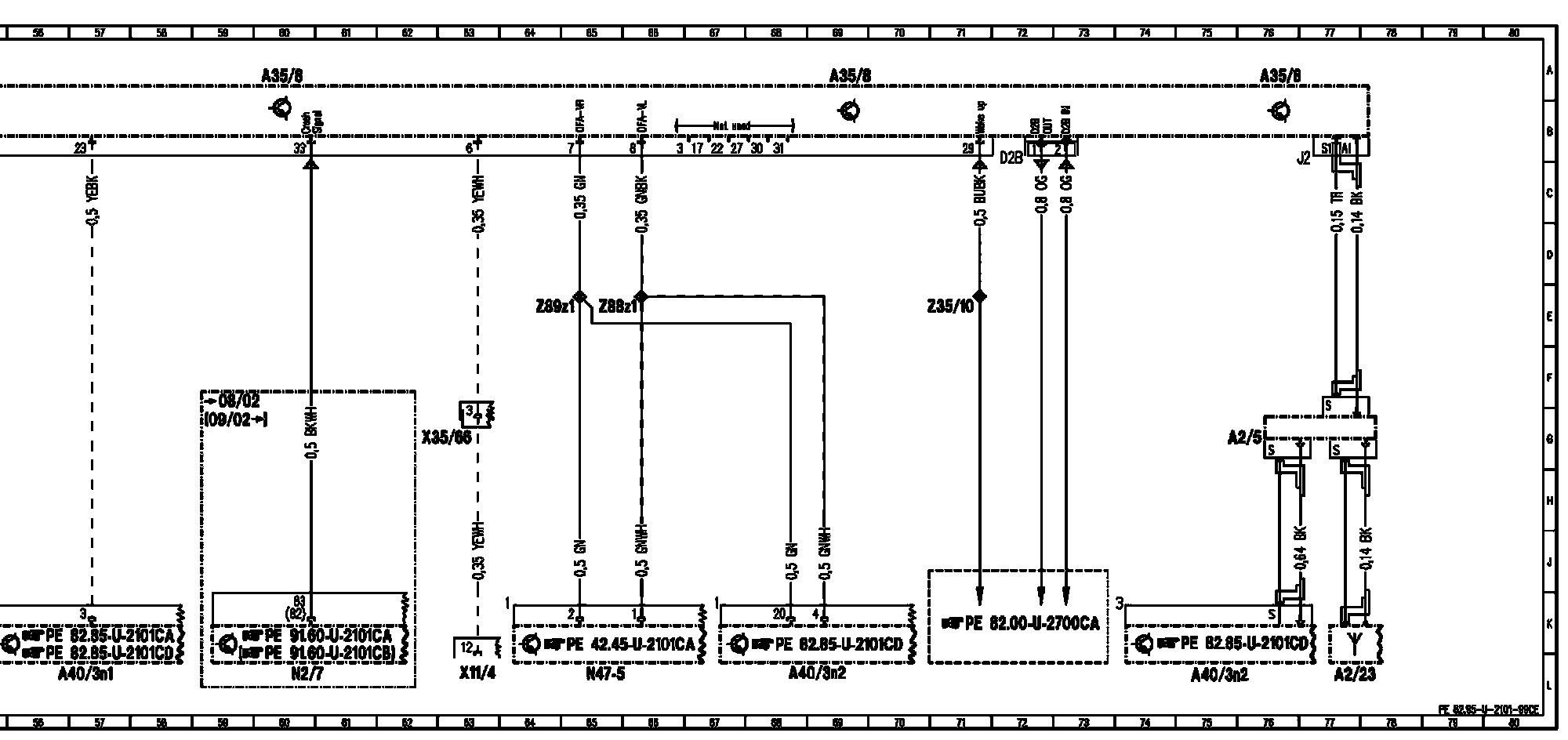

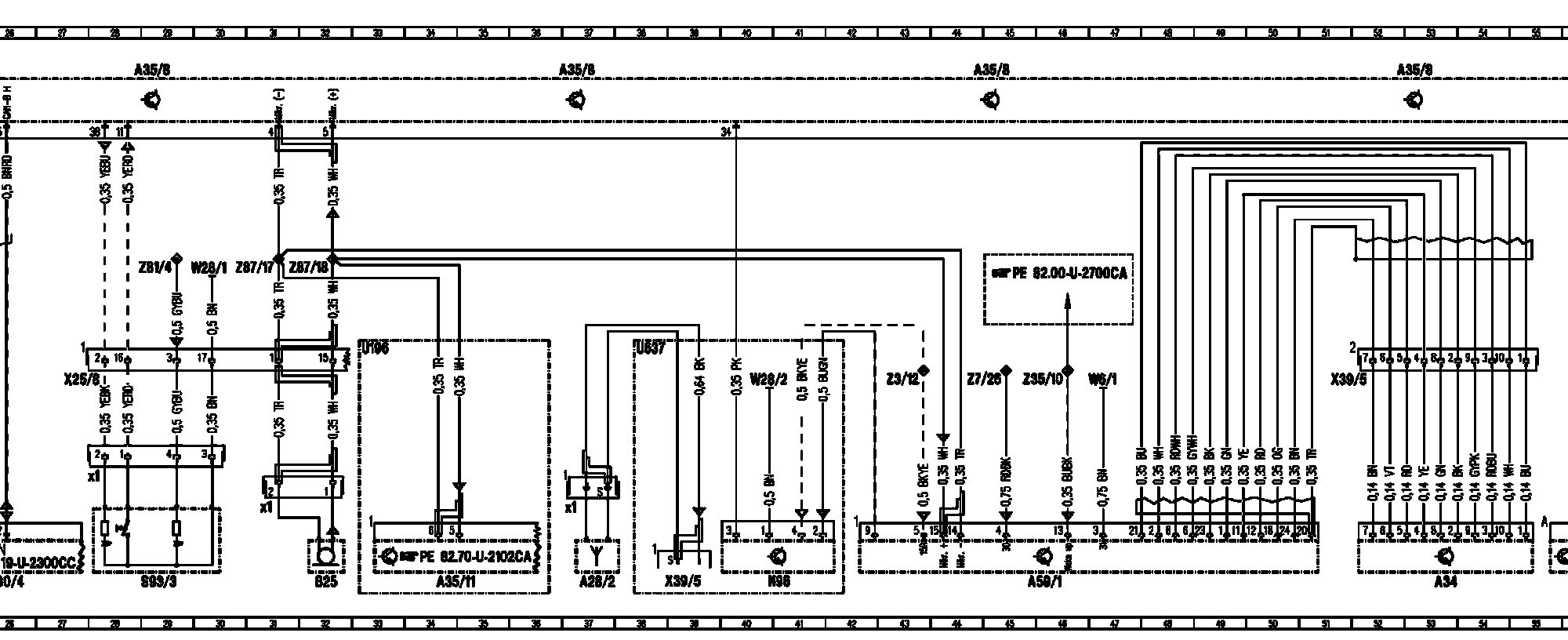

PE82.95-U-2101CE TELE AID System Control Module



PE82.95-U-2101CE TELE AID System Control Module
Model 215 as of 06/01/00 up to 08/31/03 with CODE (348) EMERGENCY CALL system
Control Module A35/8
