Pinout Values and Diagnostic Parameters

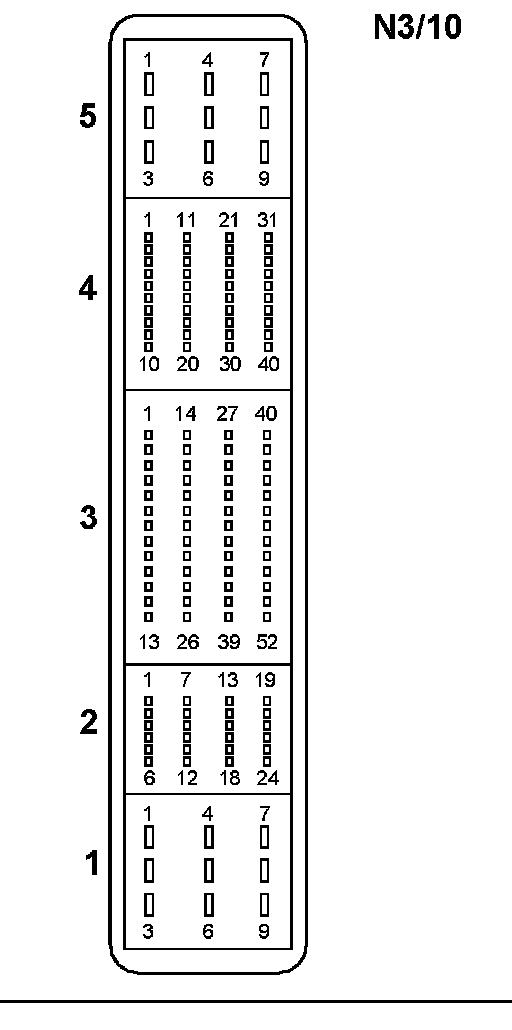

Connector View:

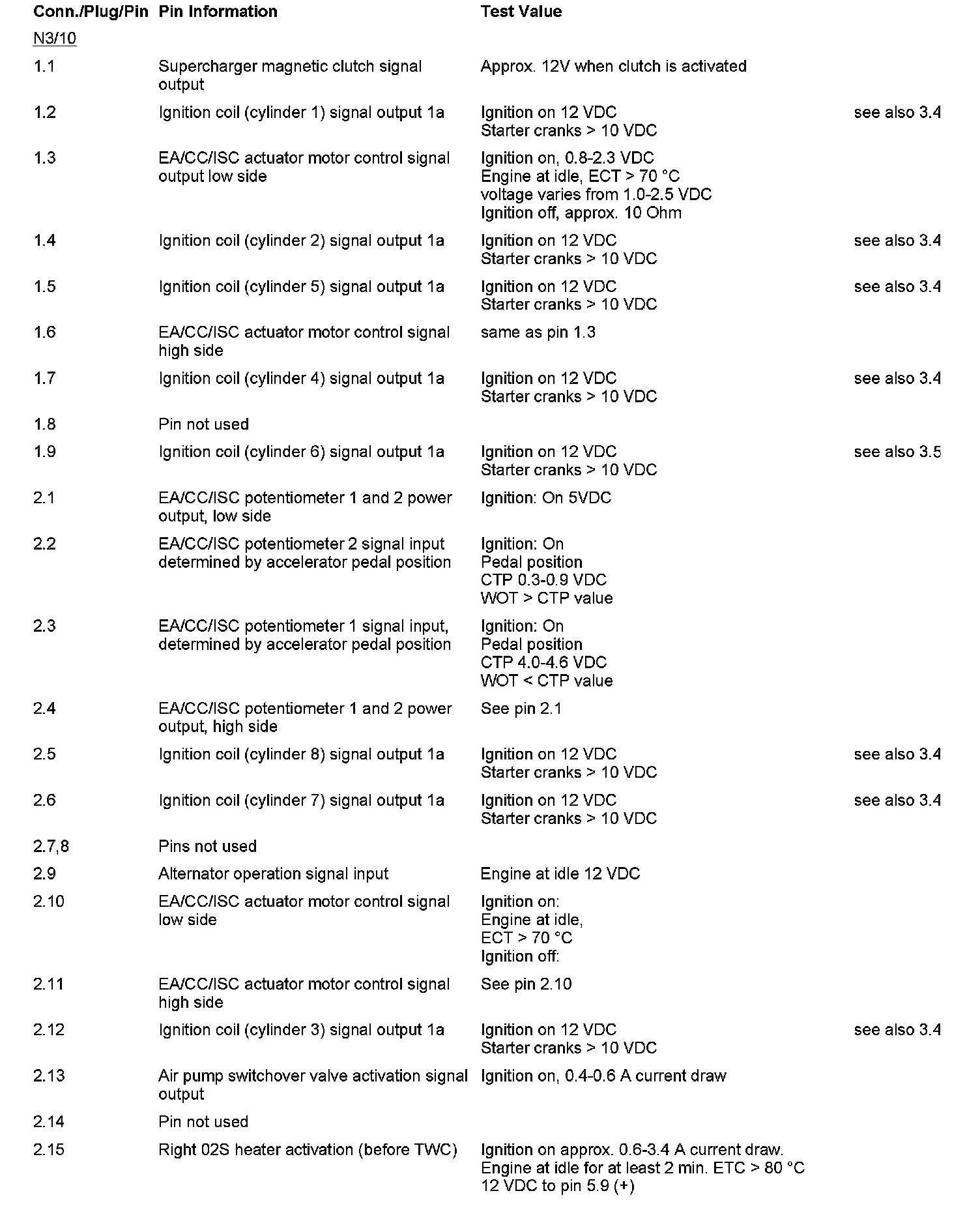

Pinouts Part 1:

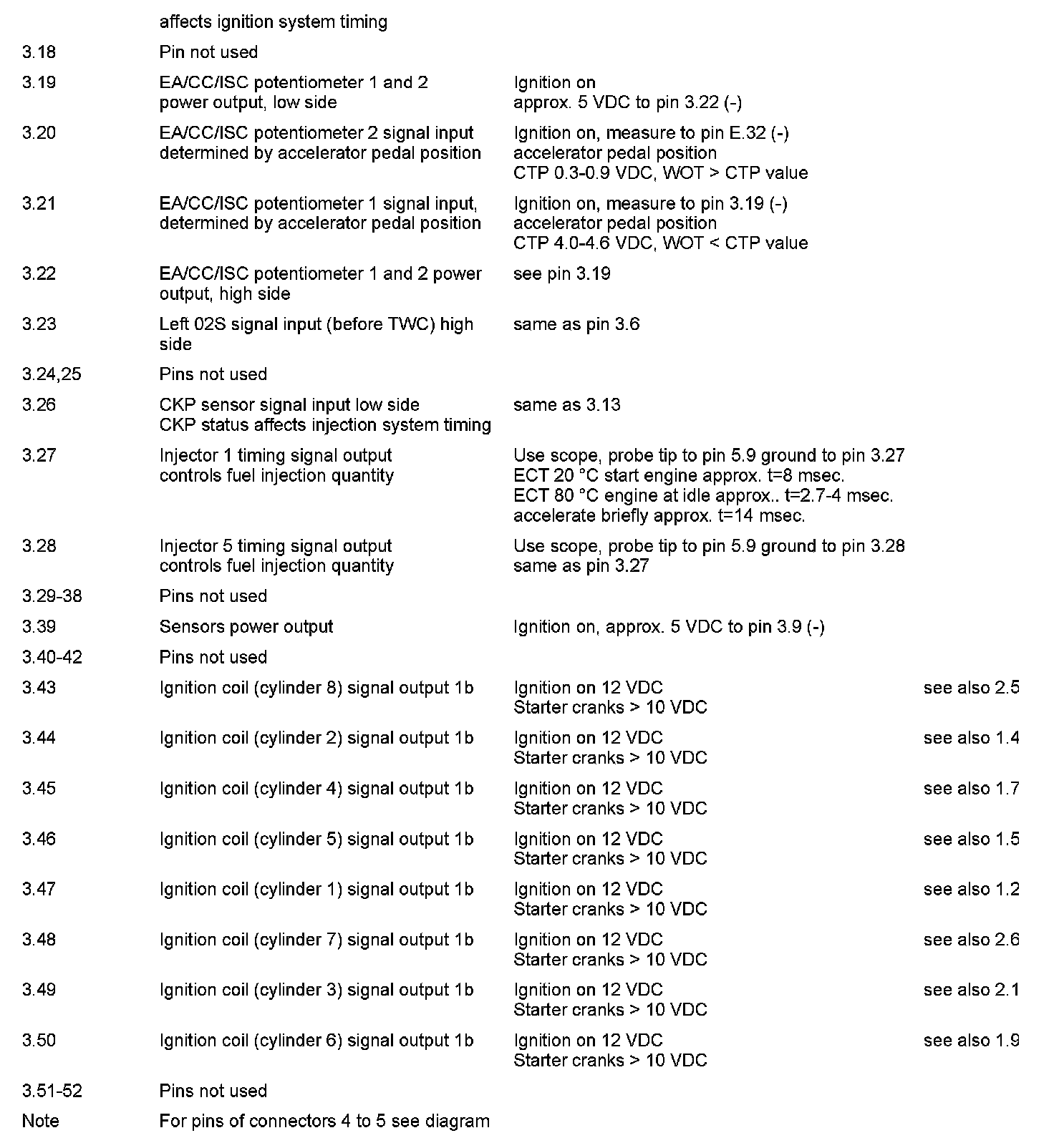

Pinouts Part 2:

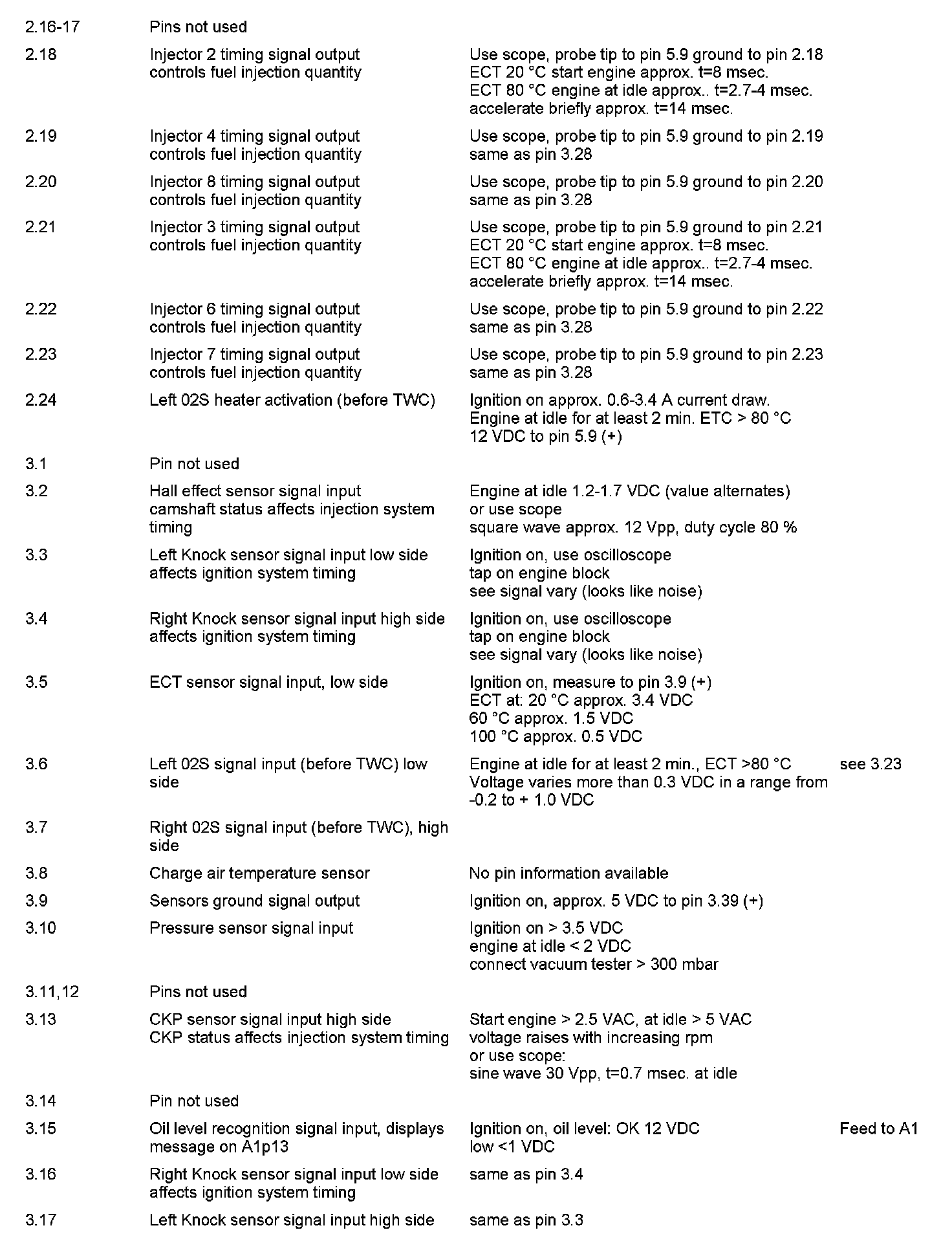

Pinouts Part 3:

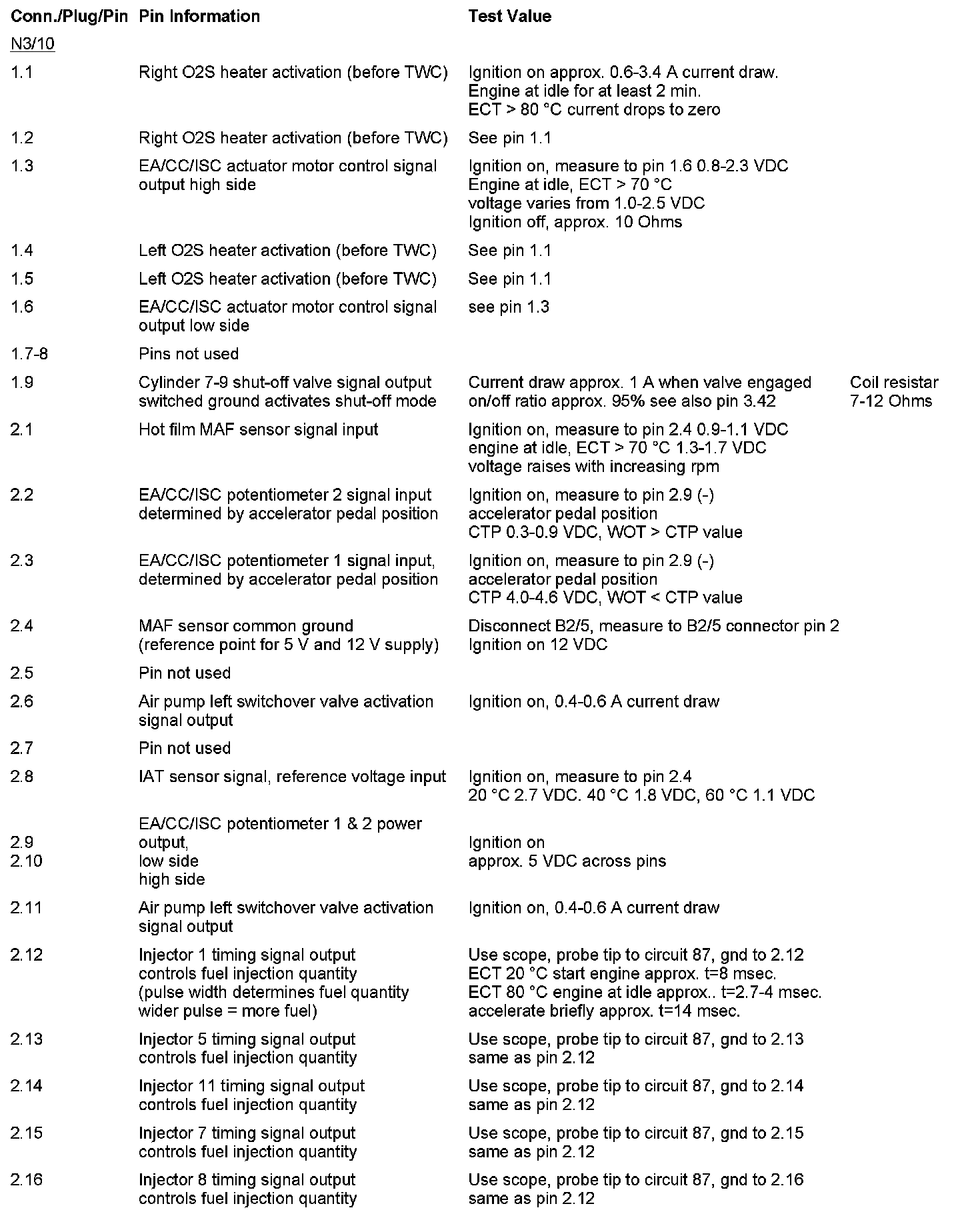

Pinouts Part 4:

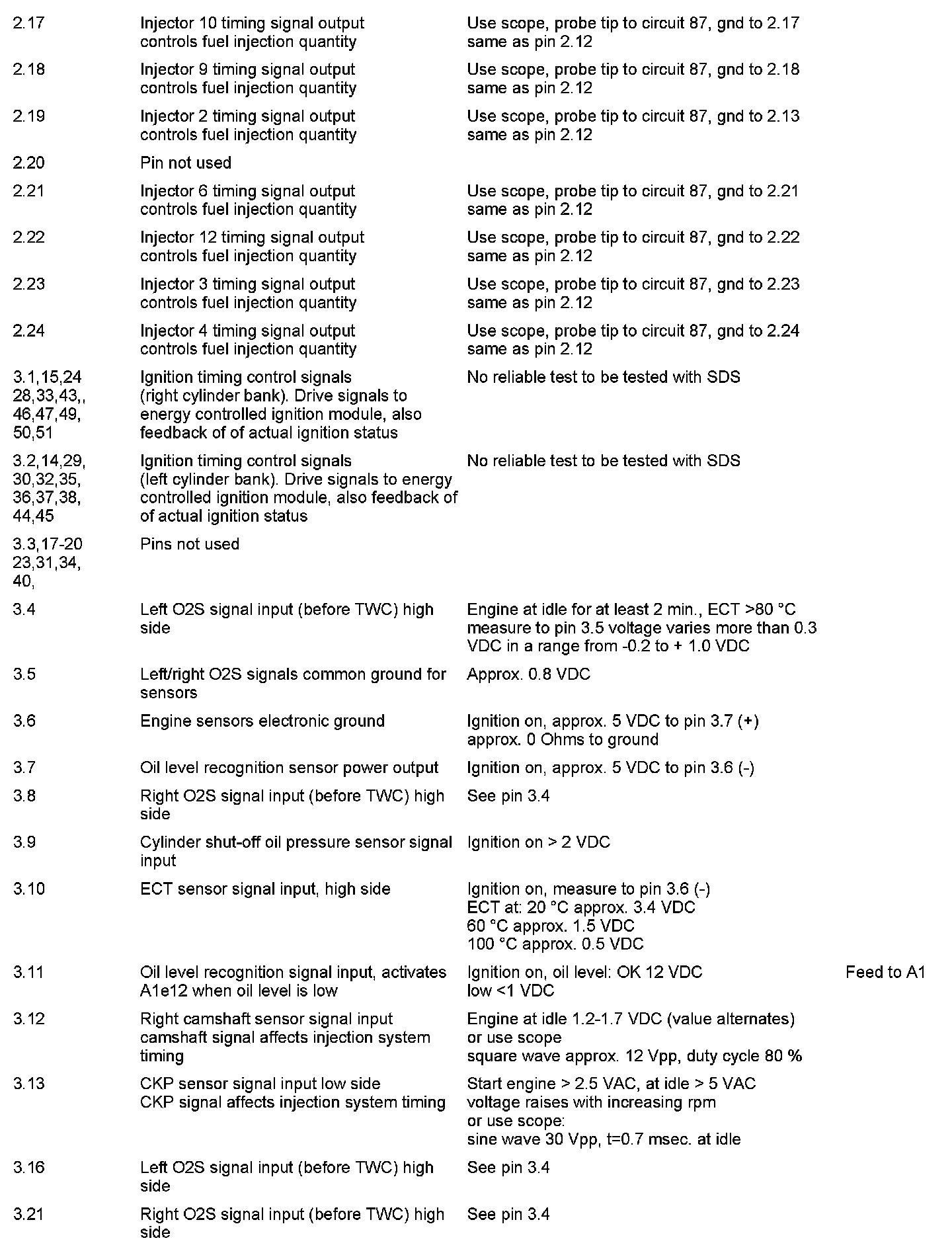

Pinout Part 5:
Pinouts Part 6:
