Vent Valve, Task

Vent Valve, Task

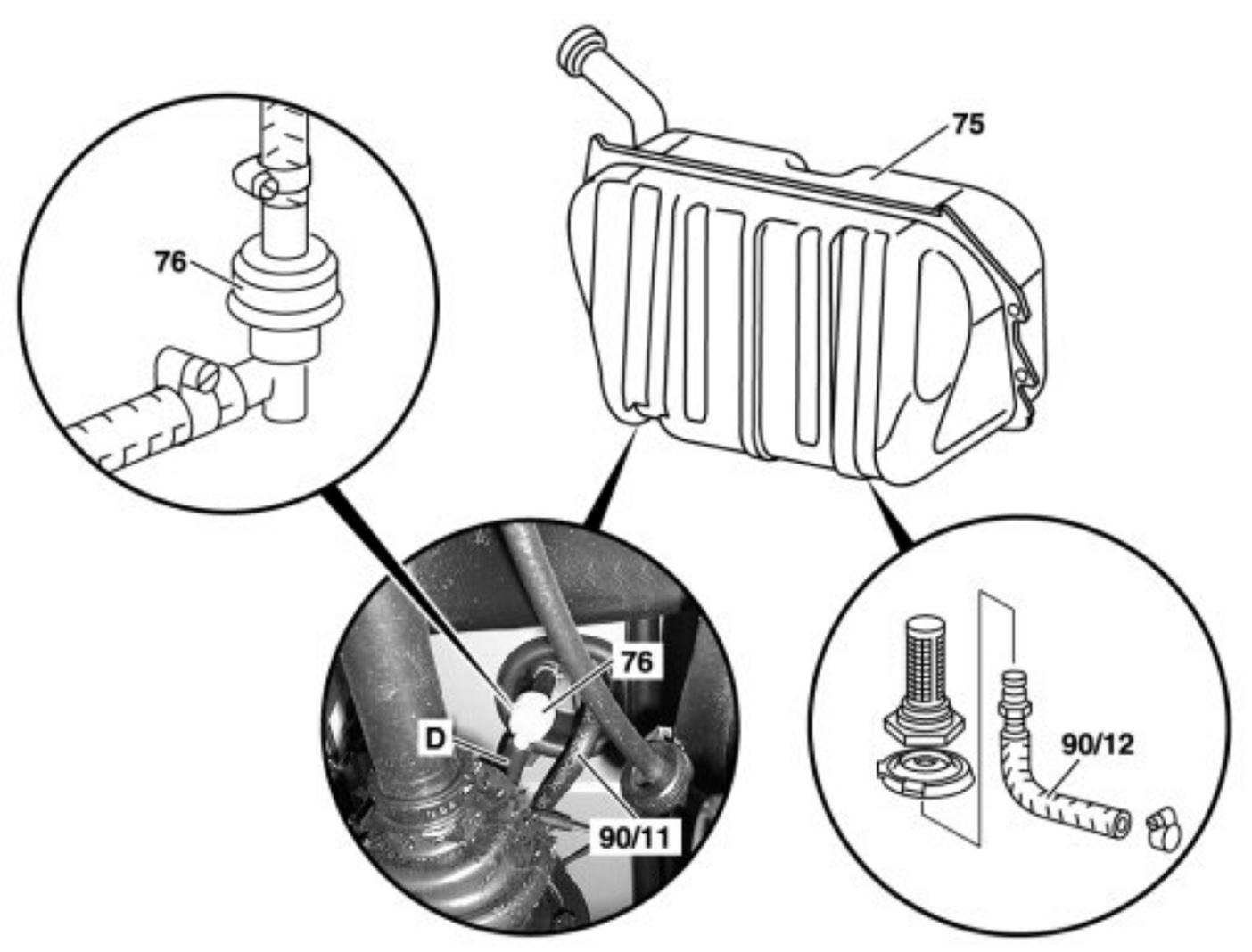

Shows model 220
75 Fuel tank
76 Vent valve
90/11 Fuel return line
90/12 Fuel pressure line
D Vent line to activated charcoal canister

- Air admission and ventilation of fuel tank
- Prevent overfilling
