Data Link Connector: Diagrams



PE54.22-U-2000Cd Data Link Connector/Diagnostic Socket
Model 215 up to 06/01/01

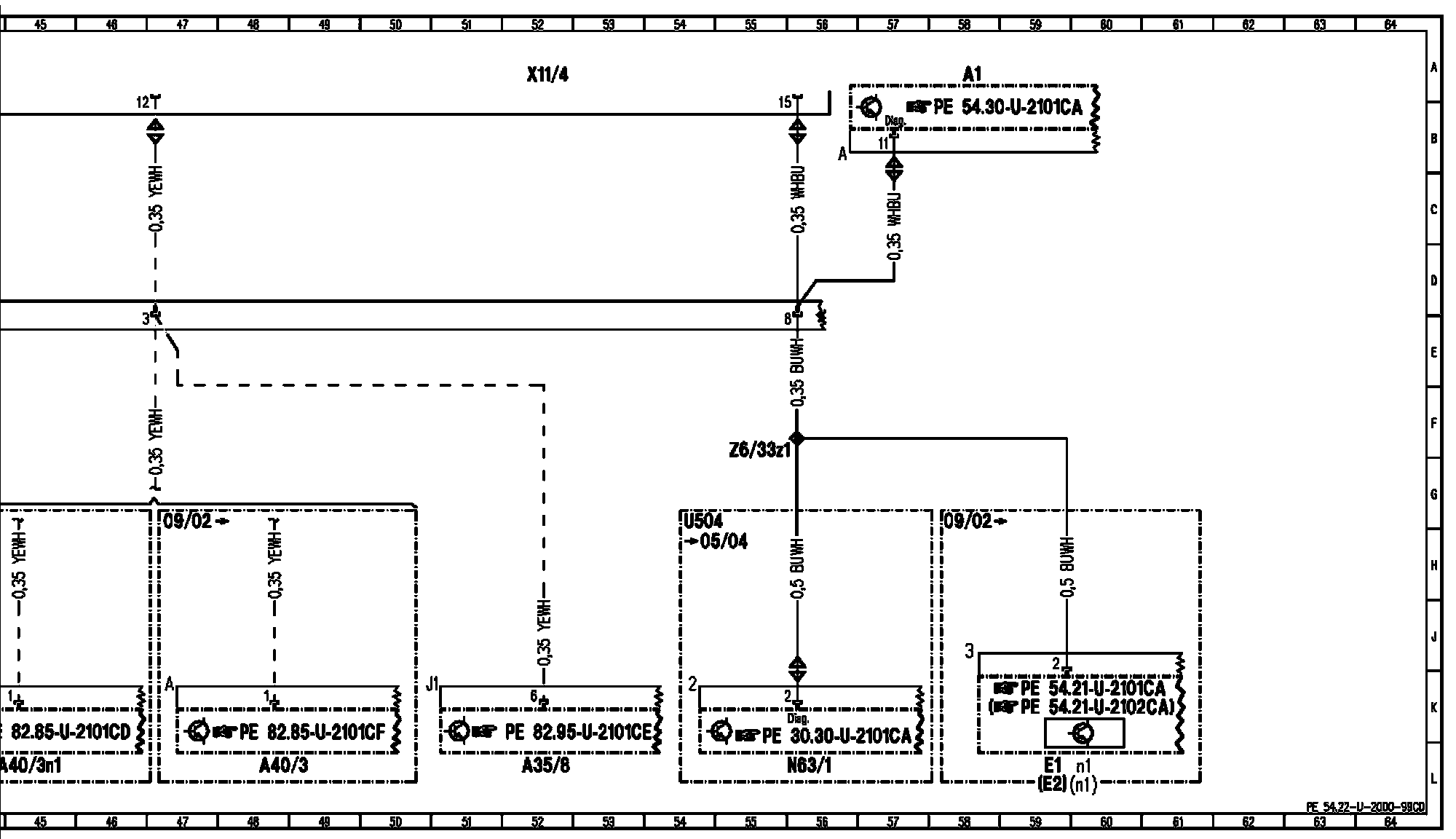

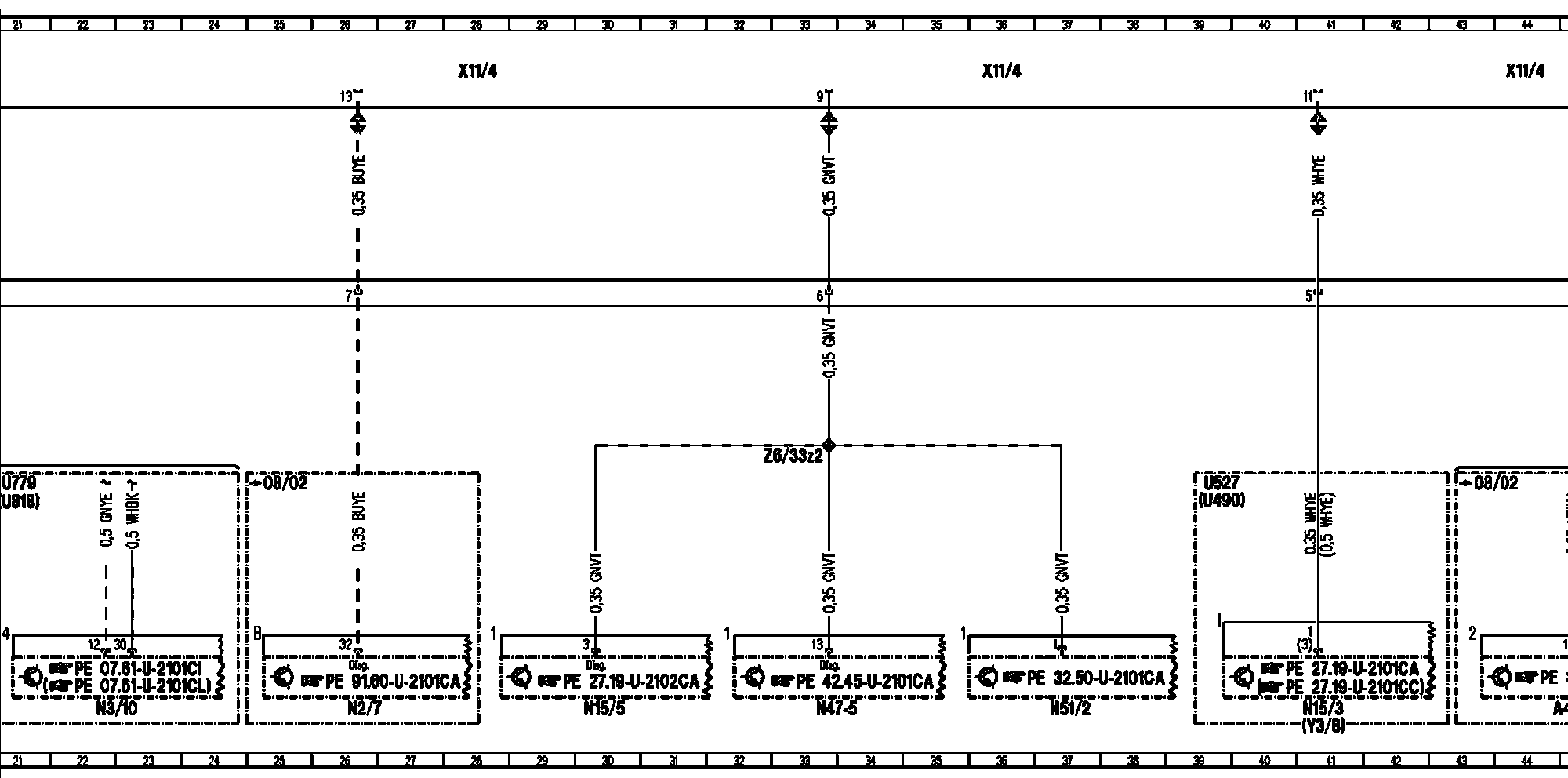

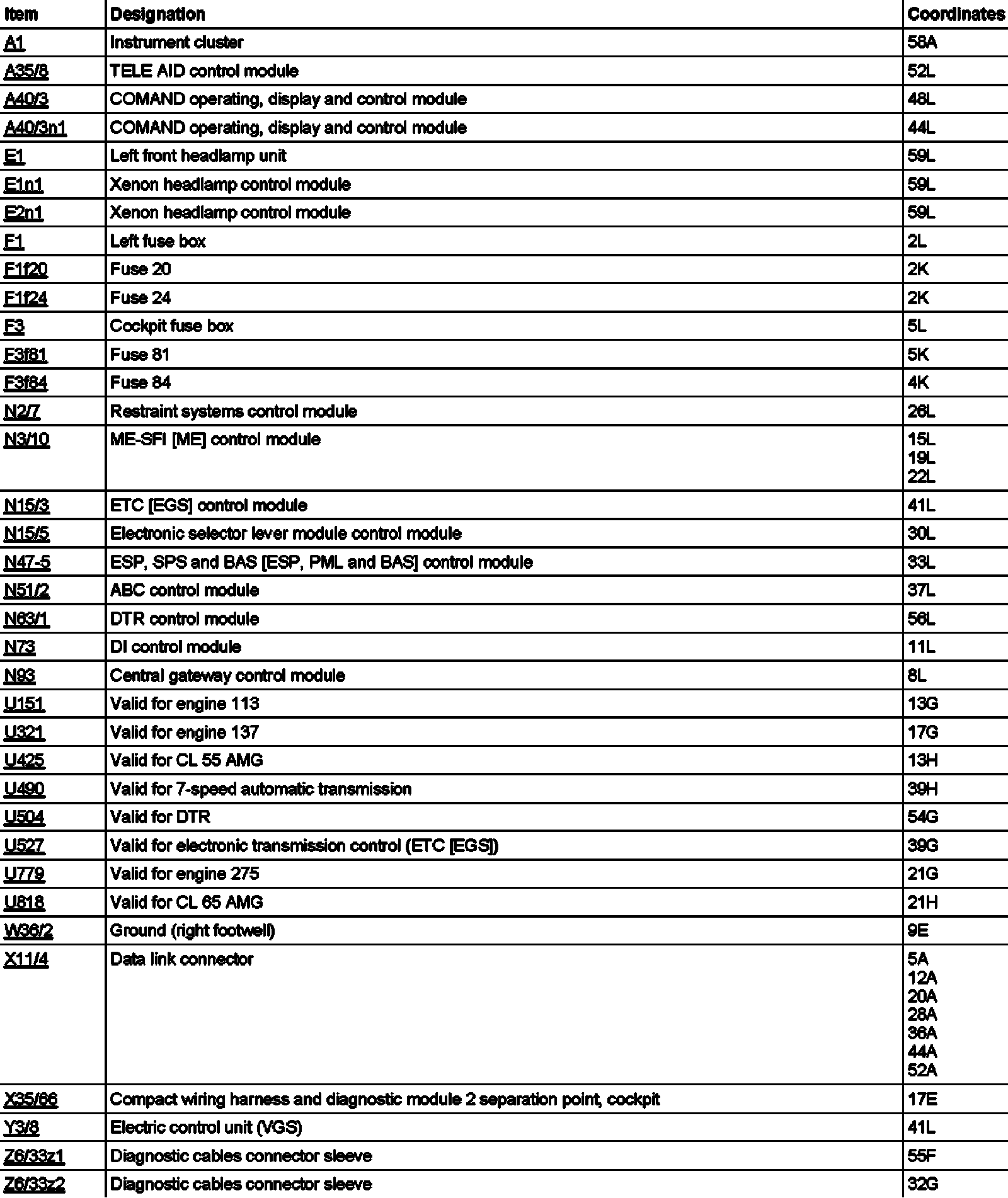

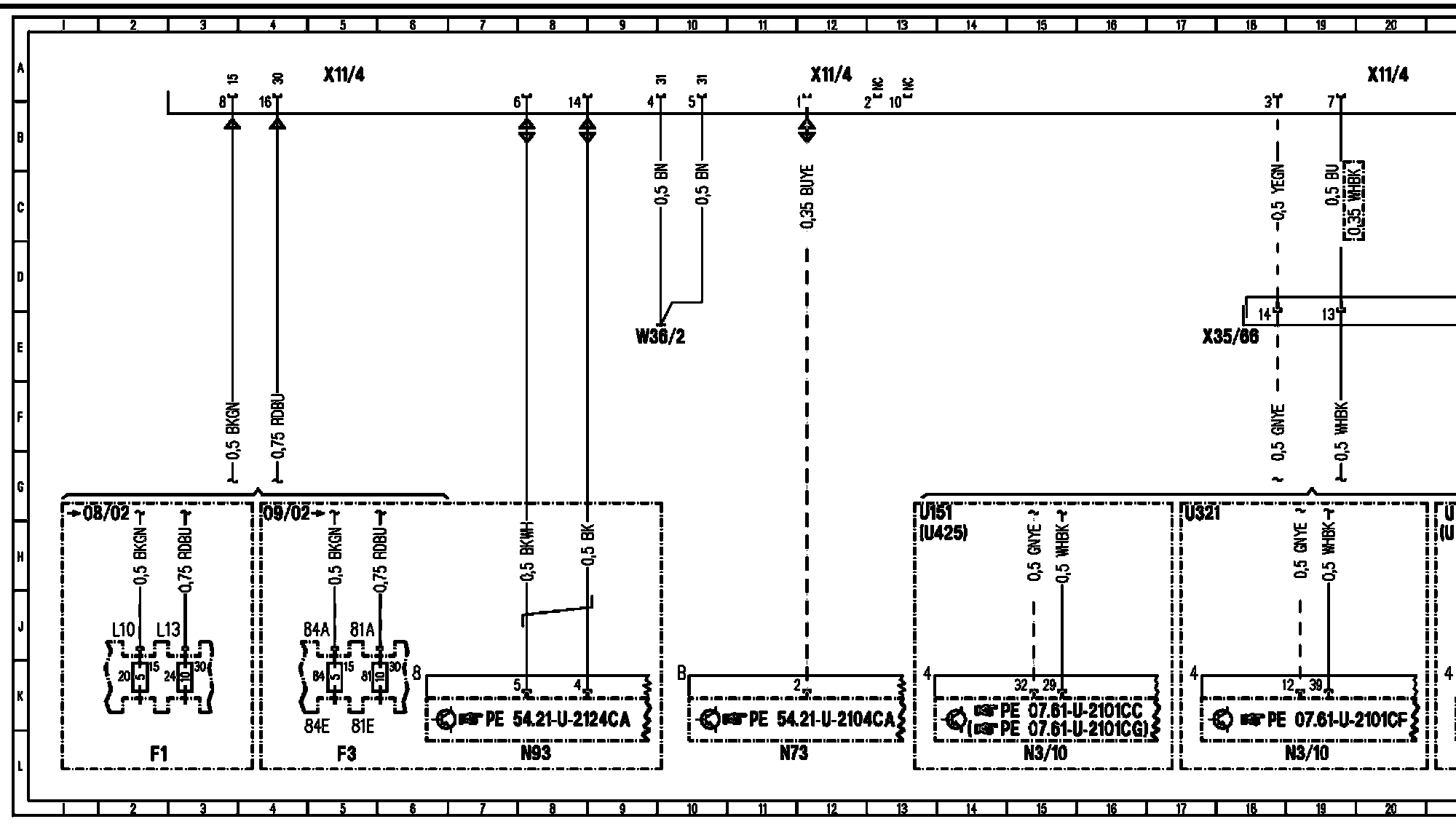

Data link connector (X11/4)
