Home >> Mercedes Benz >> 2003 >> CL 55 AMG (215.374) V8-5.5L SC (113.991) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> PE83.40-U-2102CA Center Outlet Electronics Control Module

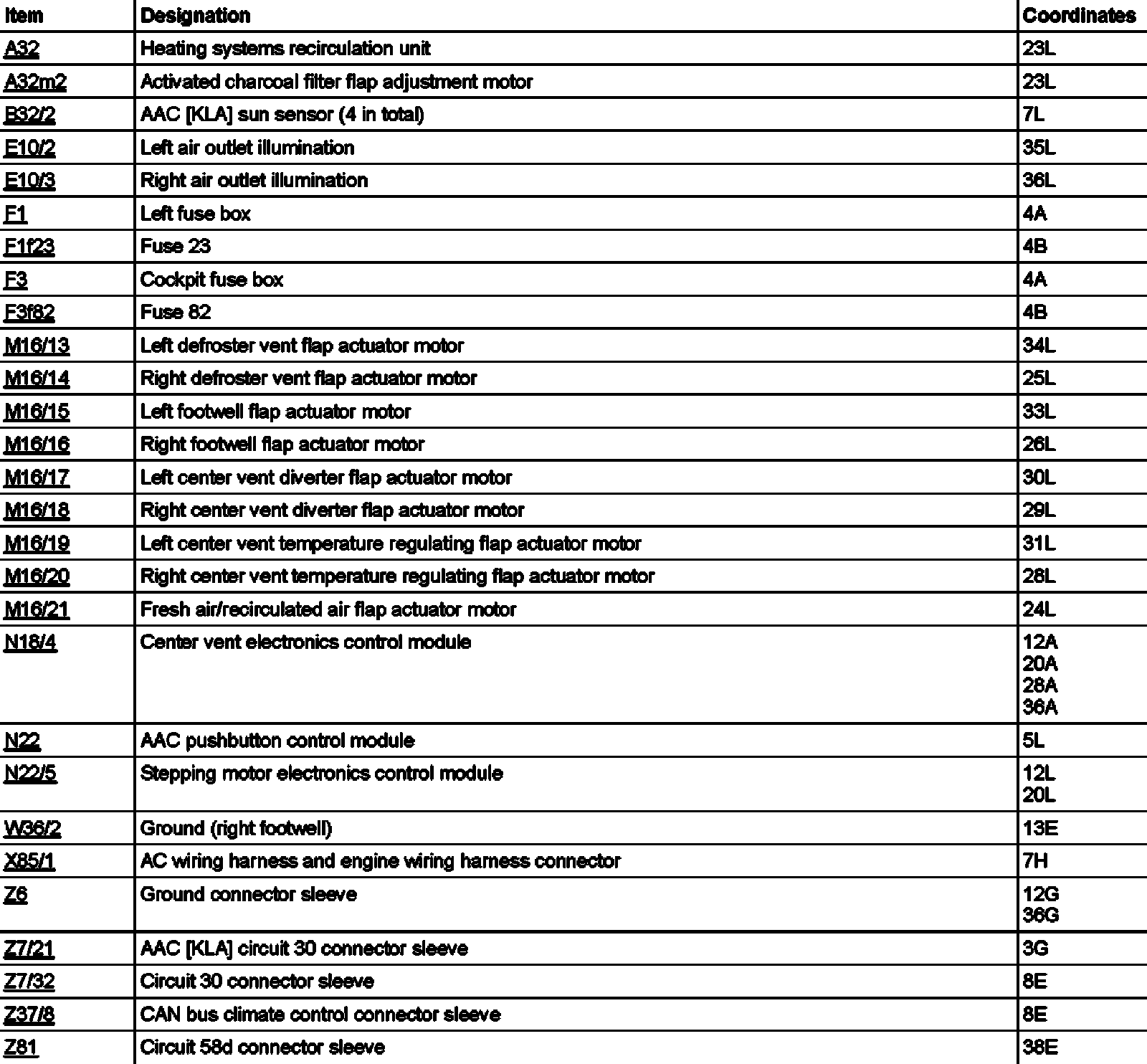

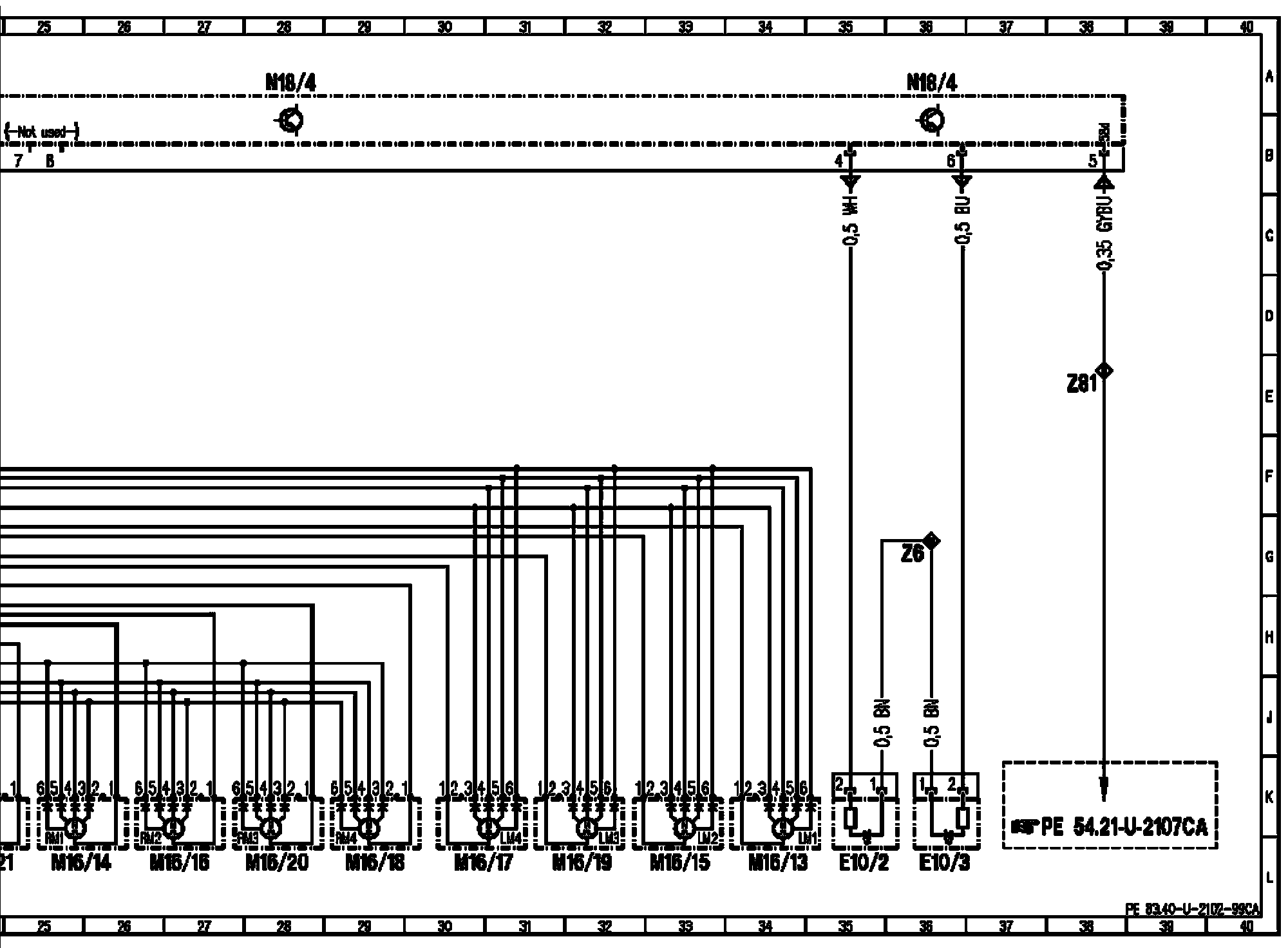

PE83.40-U-2102CA Center Outlet Electronics Control Module



PE83.40-U-2102CA Center Outlet Electronics Control Module
Model 215 with Code (581) Automatic air conditioning
Control Module N18/4
