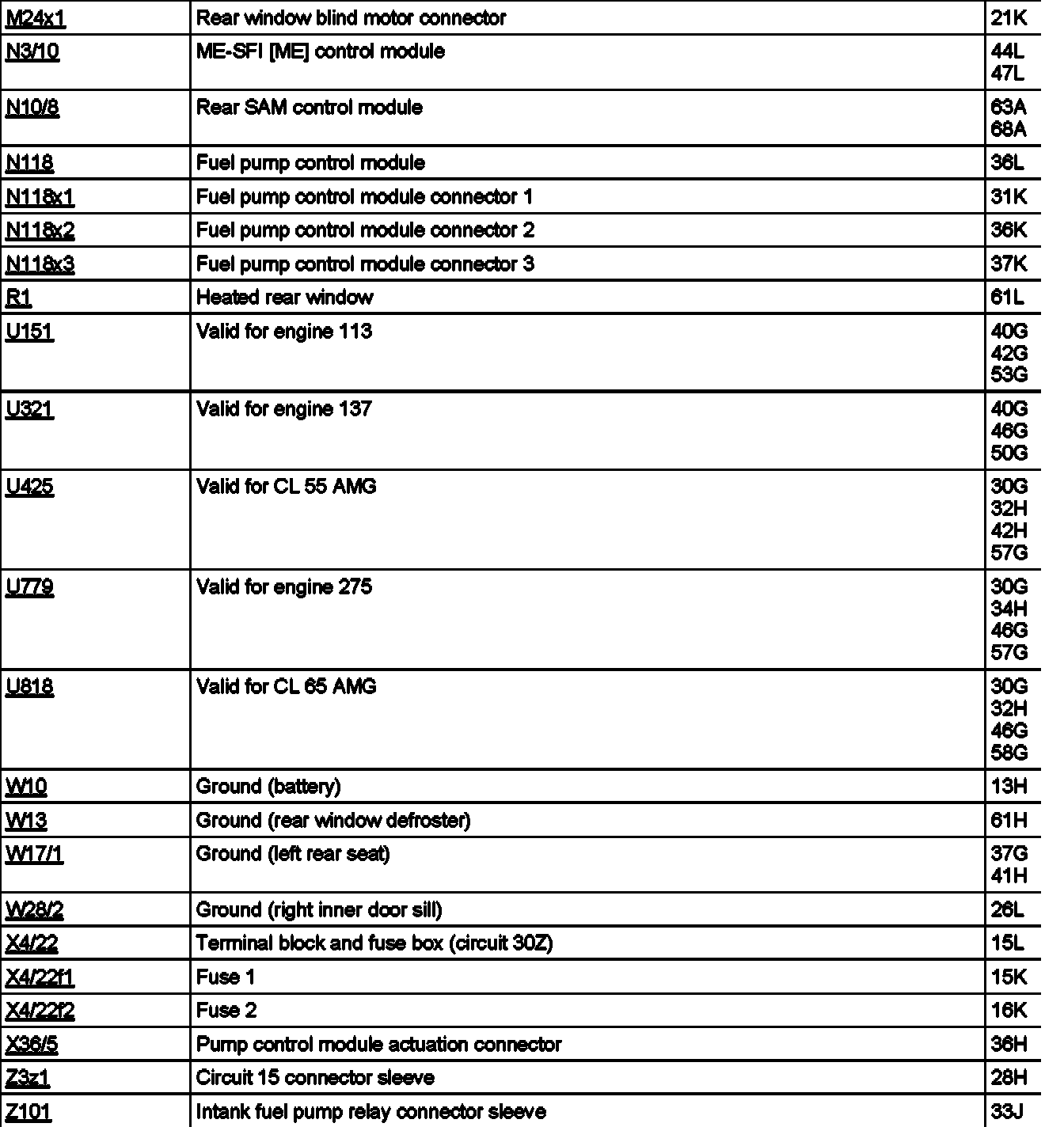

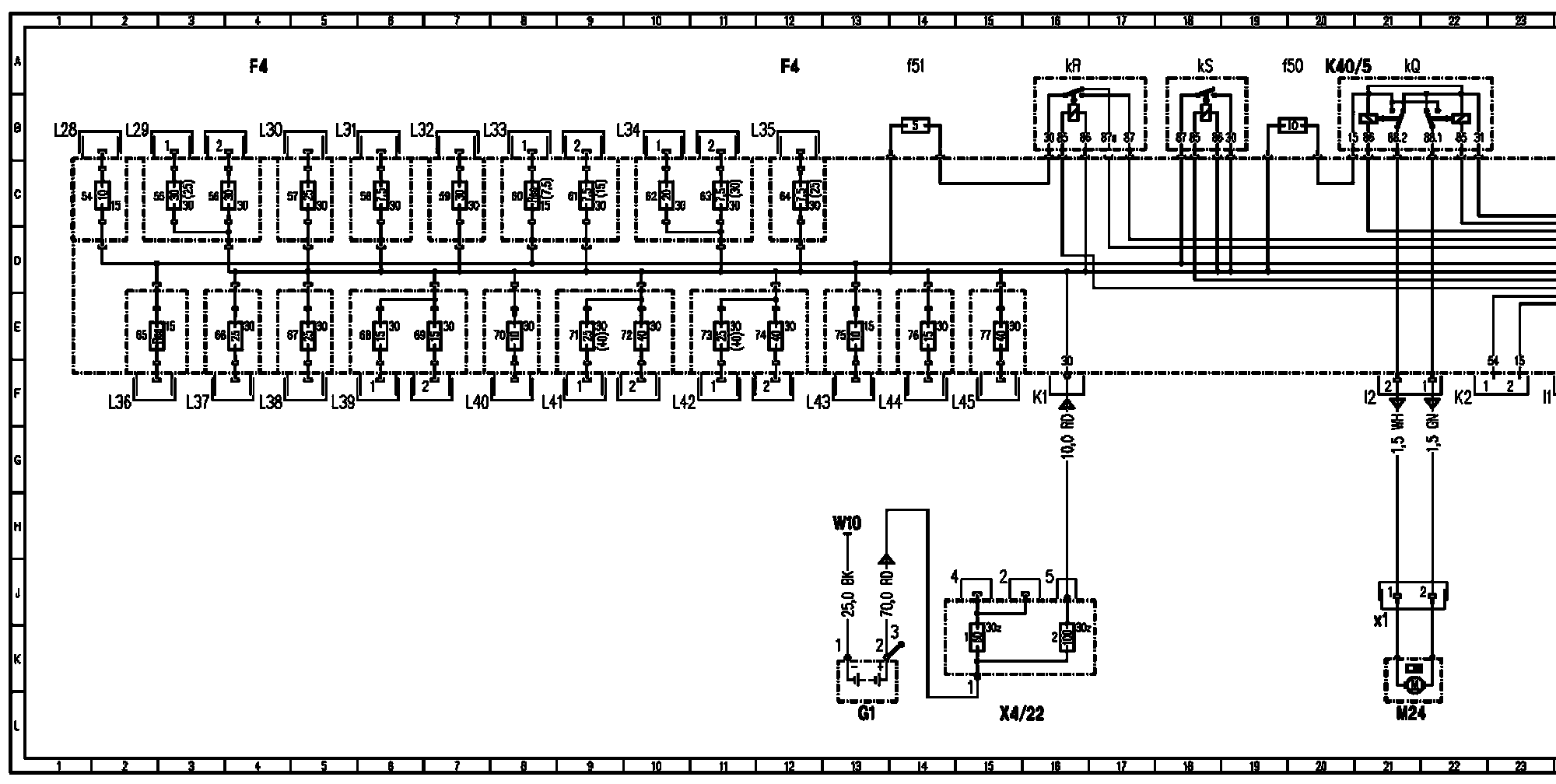

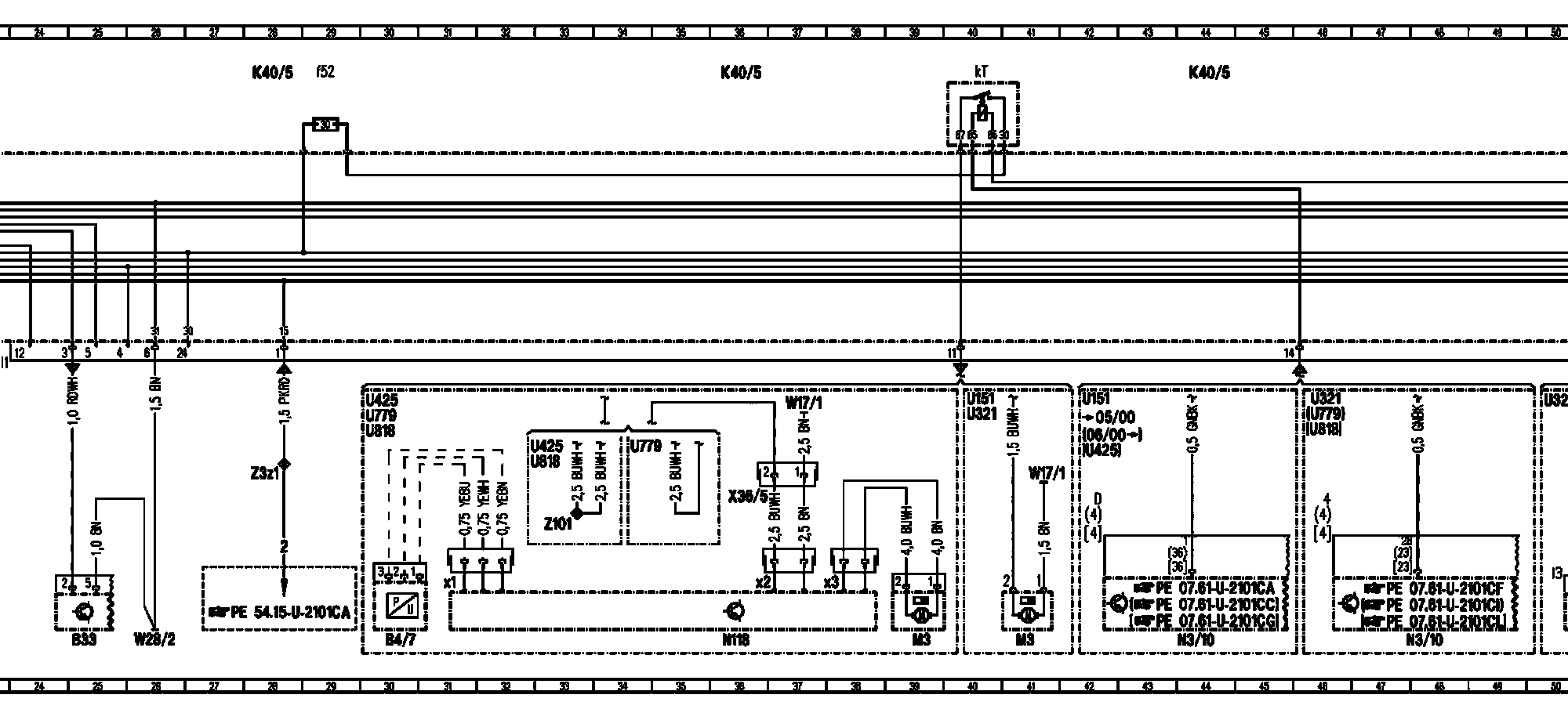

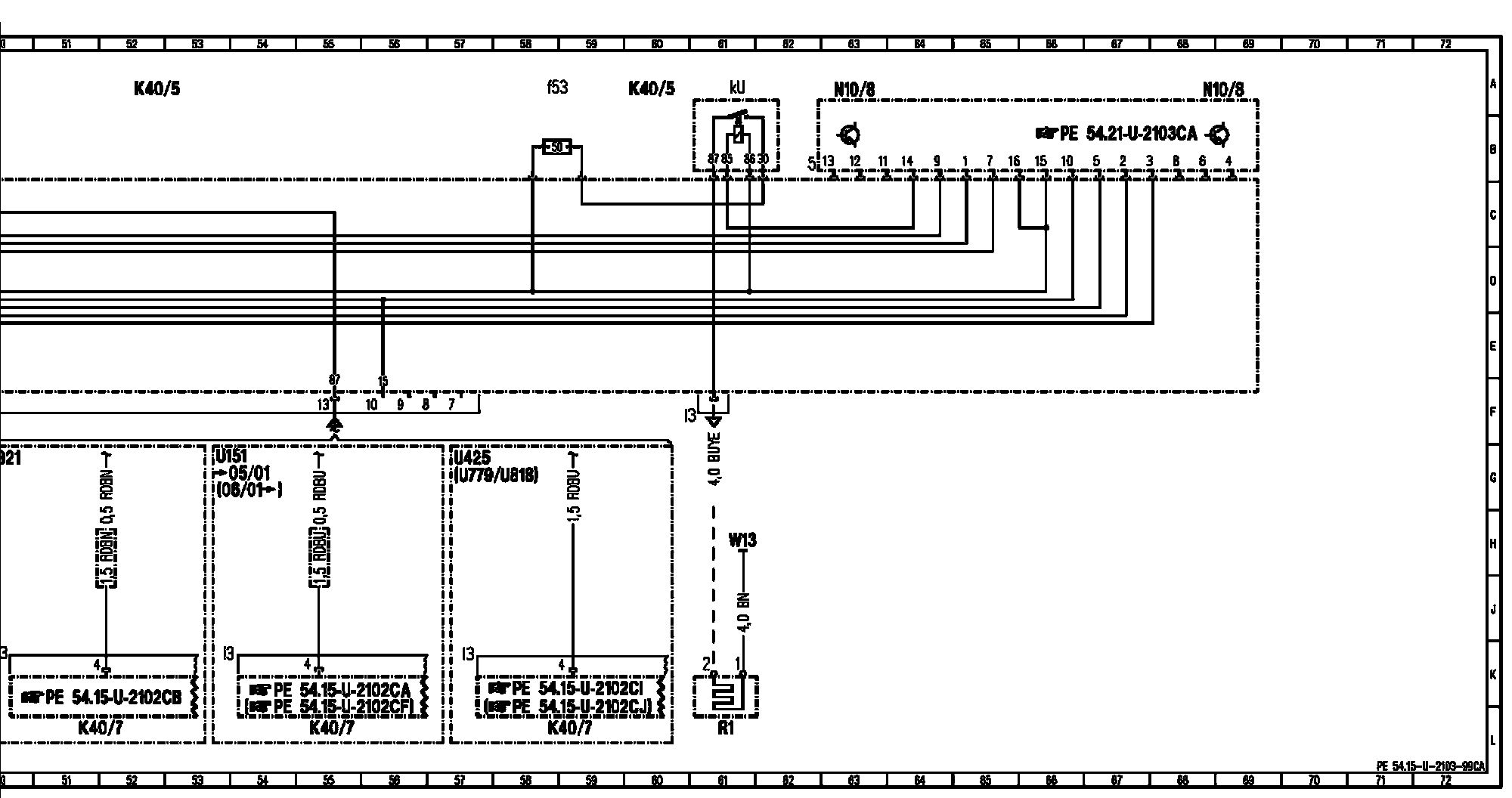

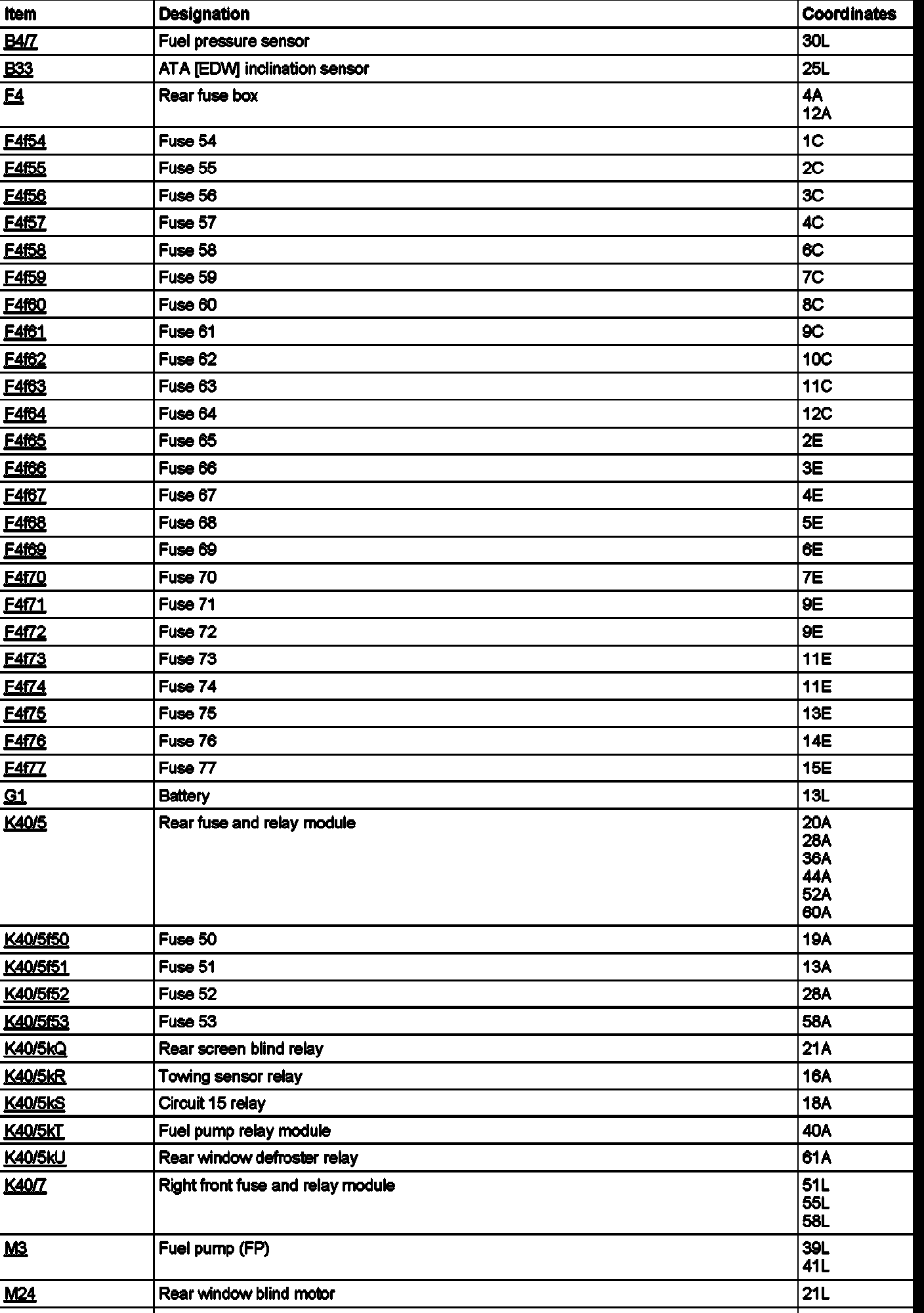

PE54.15-U-2103CA Fuse and Relay Box, Rear
PE54.15-U-2103CA Fuse and Relay Box, Rear
PE54.15-U-2103CA Fuse and Relay Box, Rear
Supply of fuses in rear fuse box
