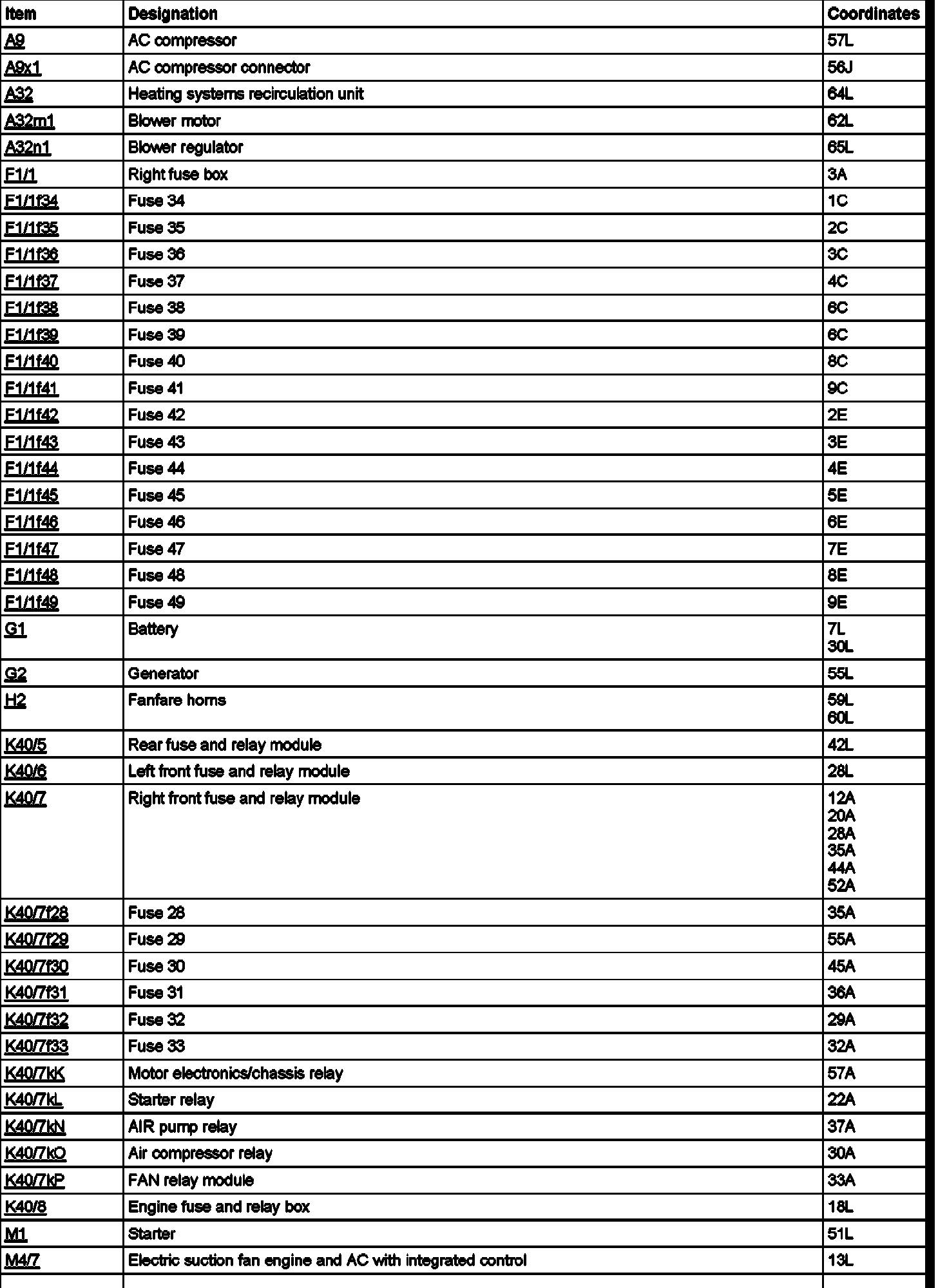

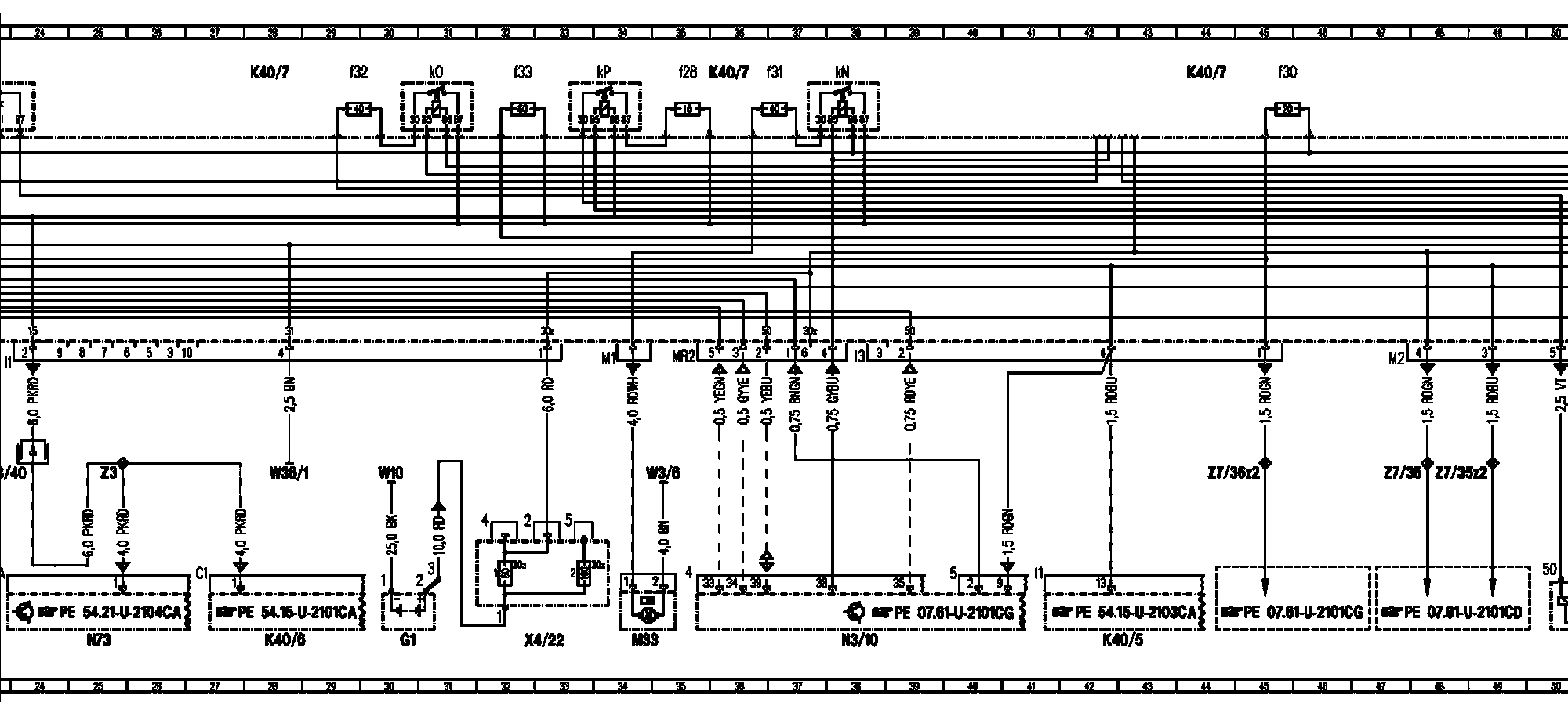

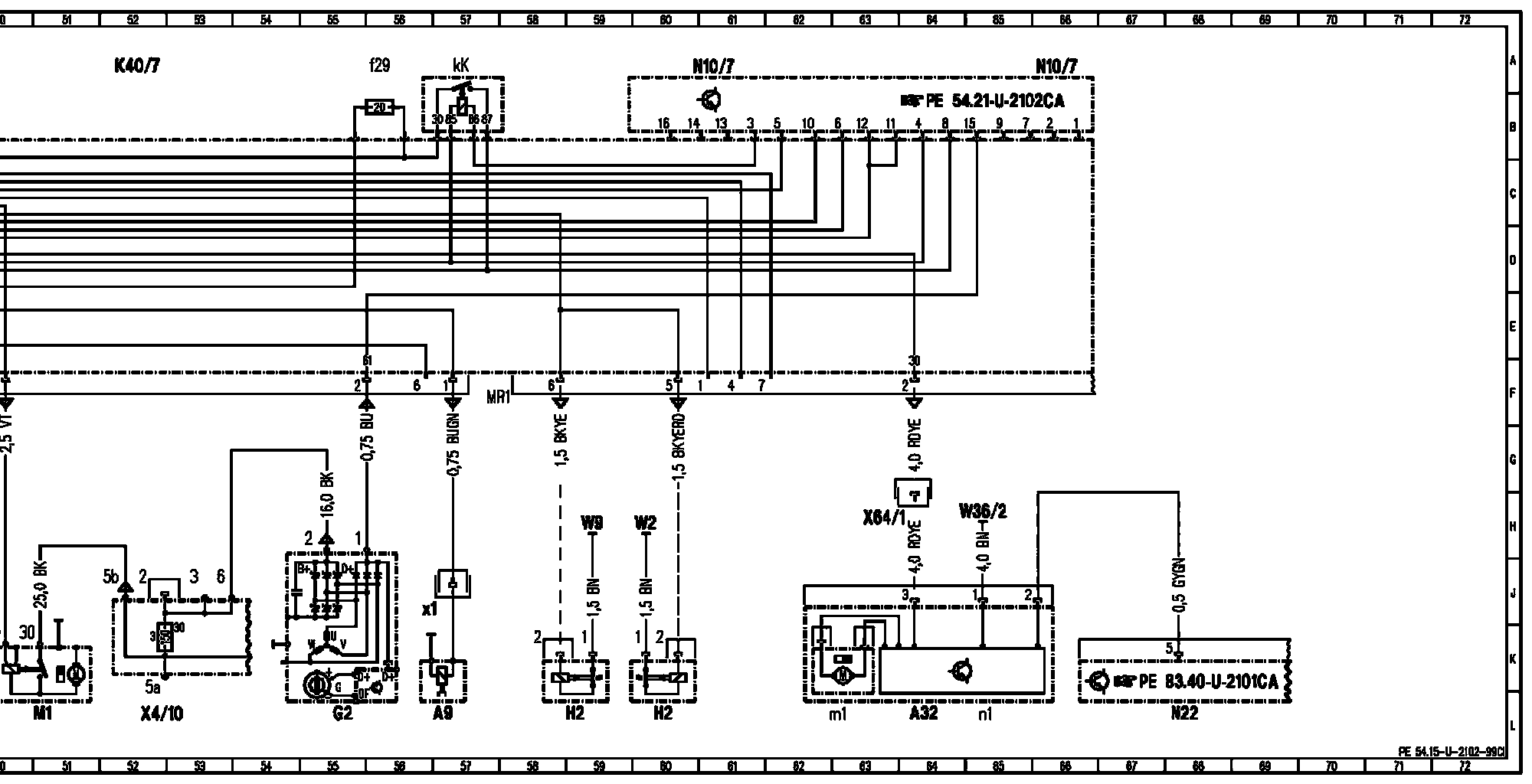

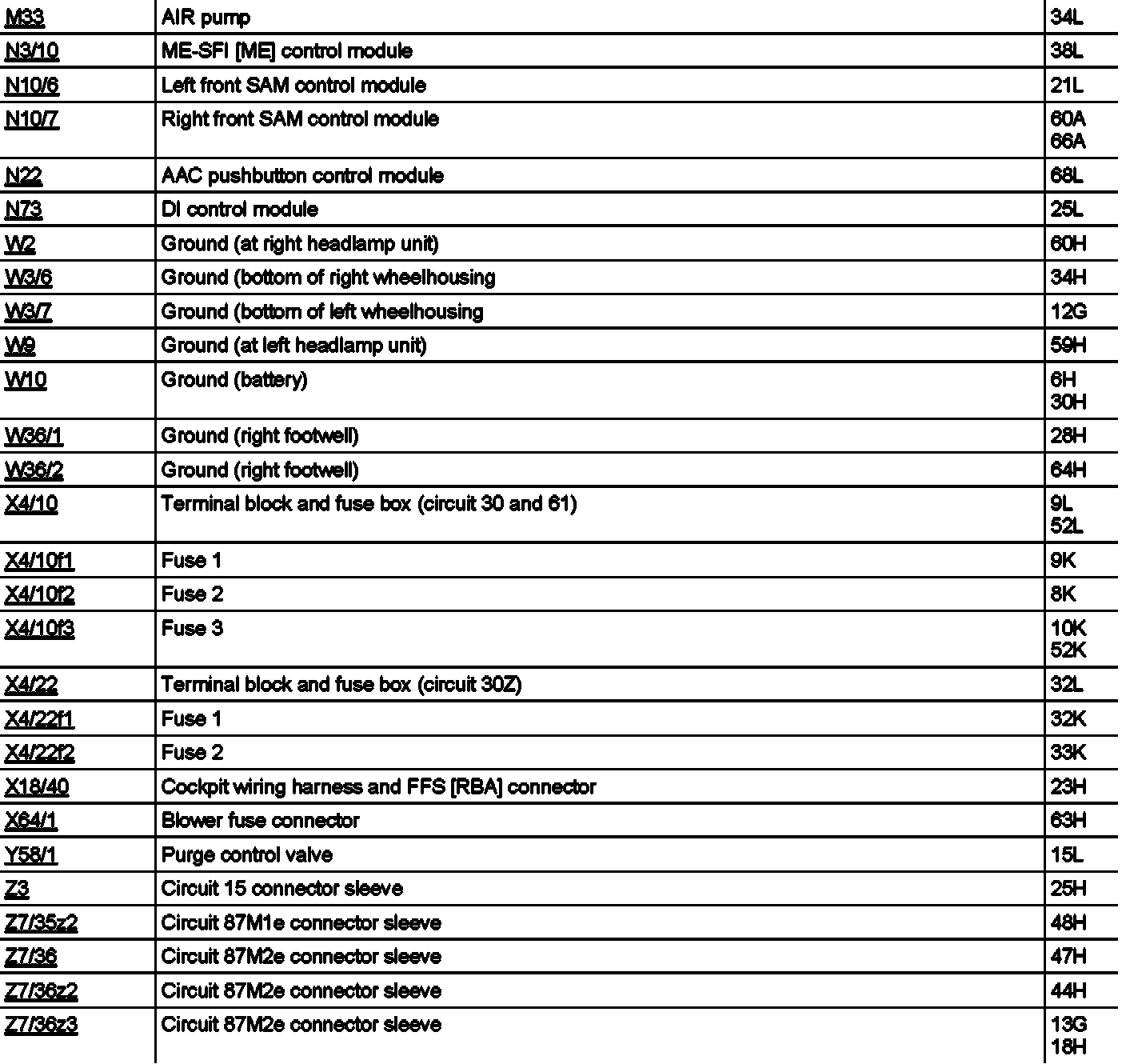

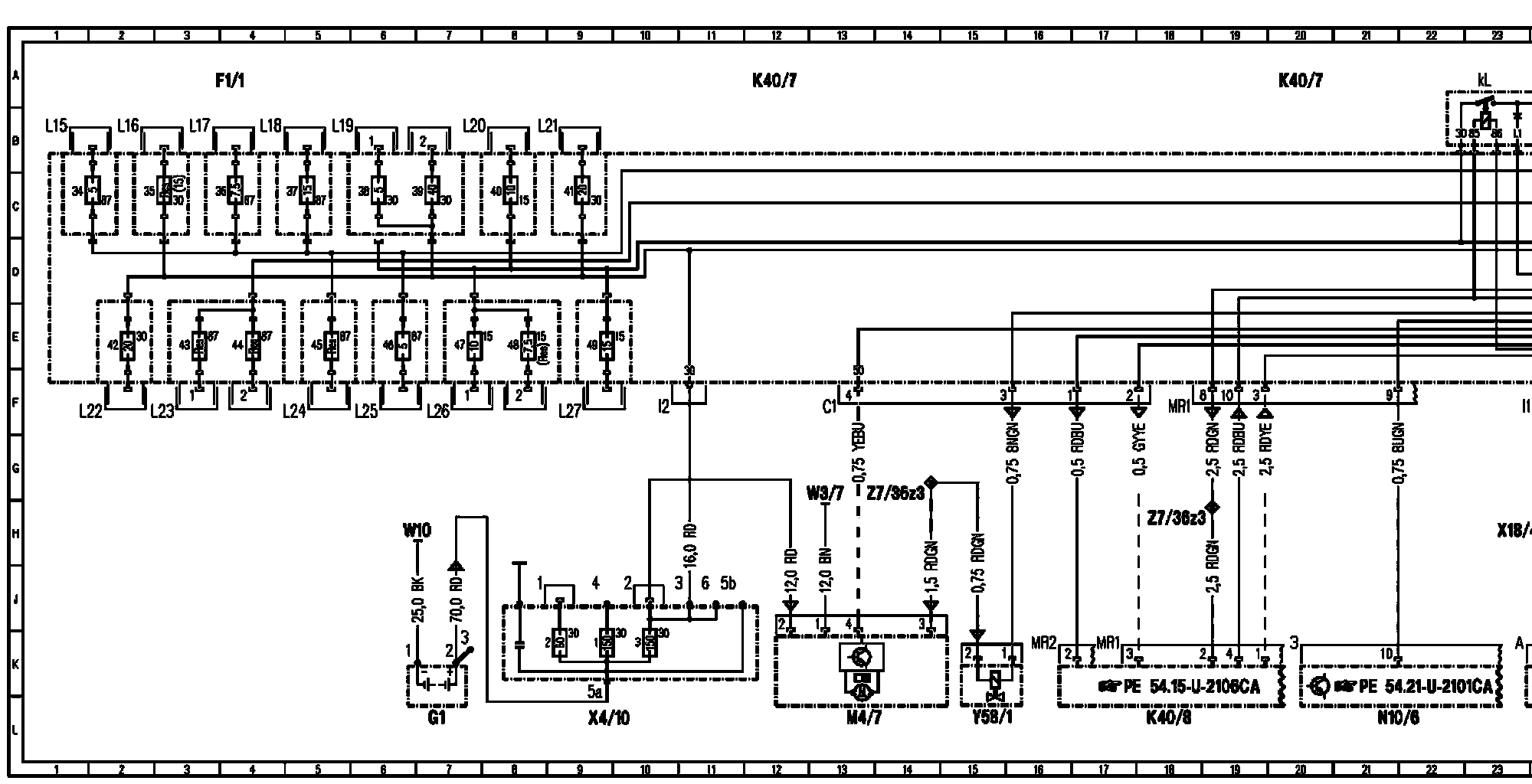

PE54.15-U-2102CI Fuse and Relay Box, Right



PE54.15-U-2102Ci Fuse and Relay Box, Right
Model 215 as of 09/01/02 with Engine 113.986 with CODE (990) AMG vehicles
