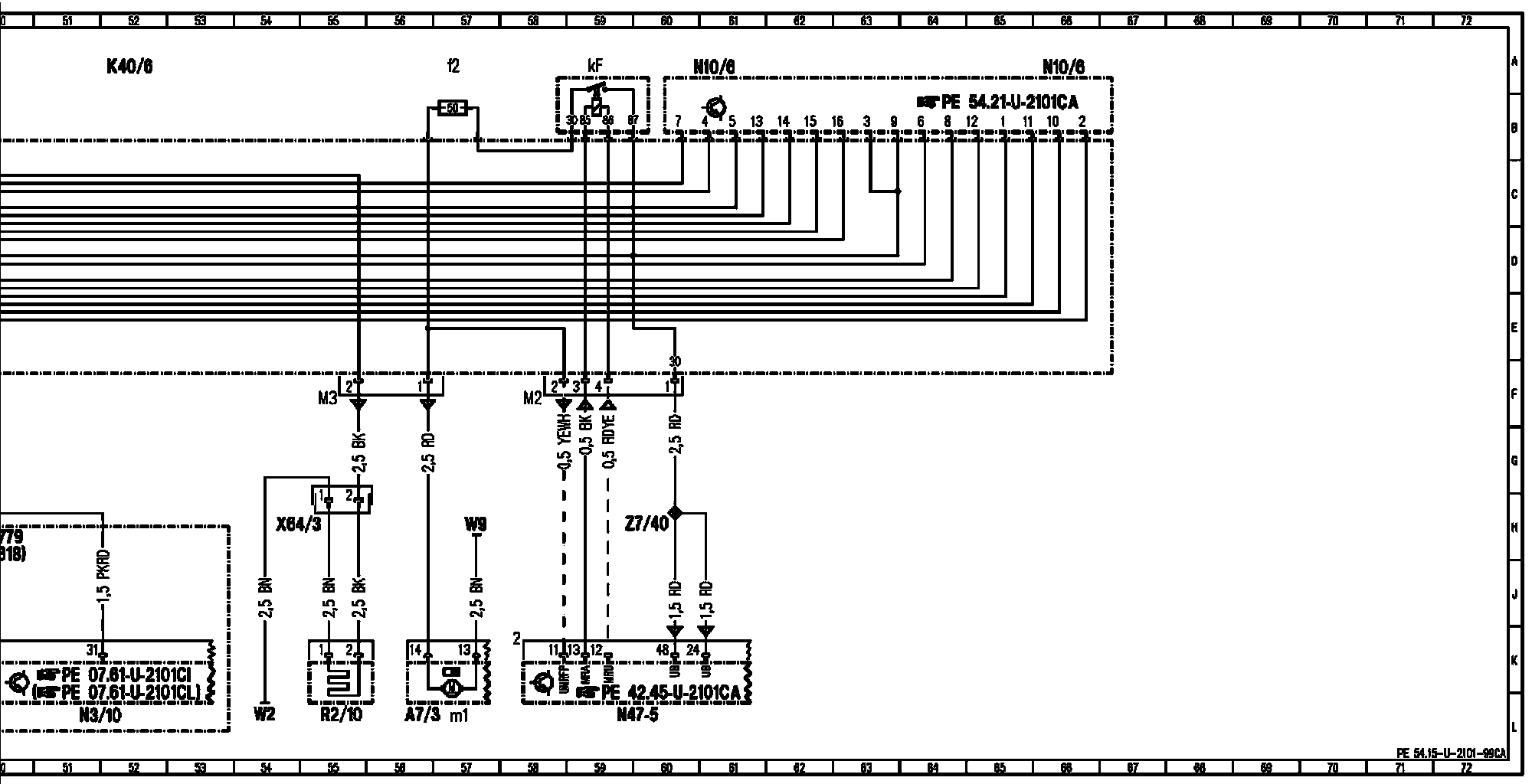

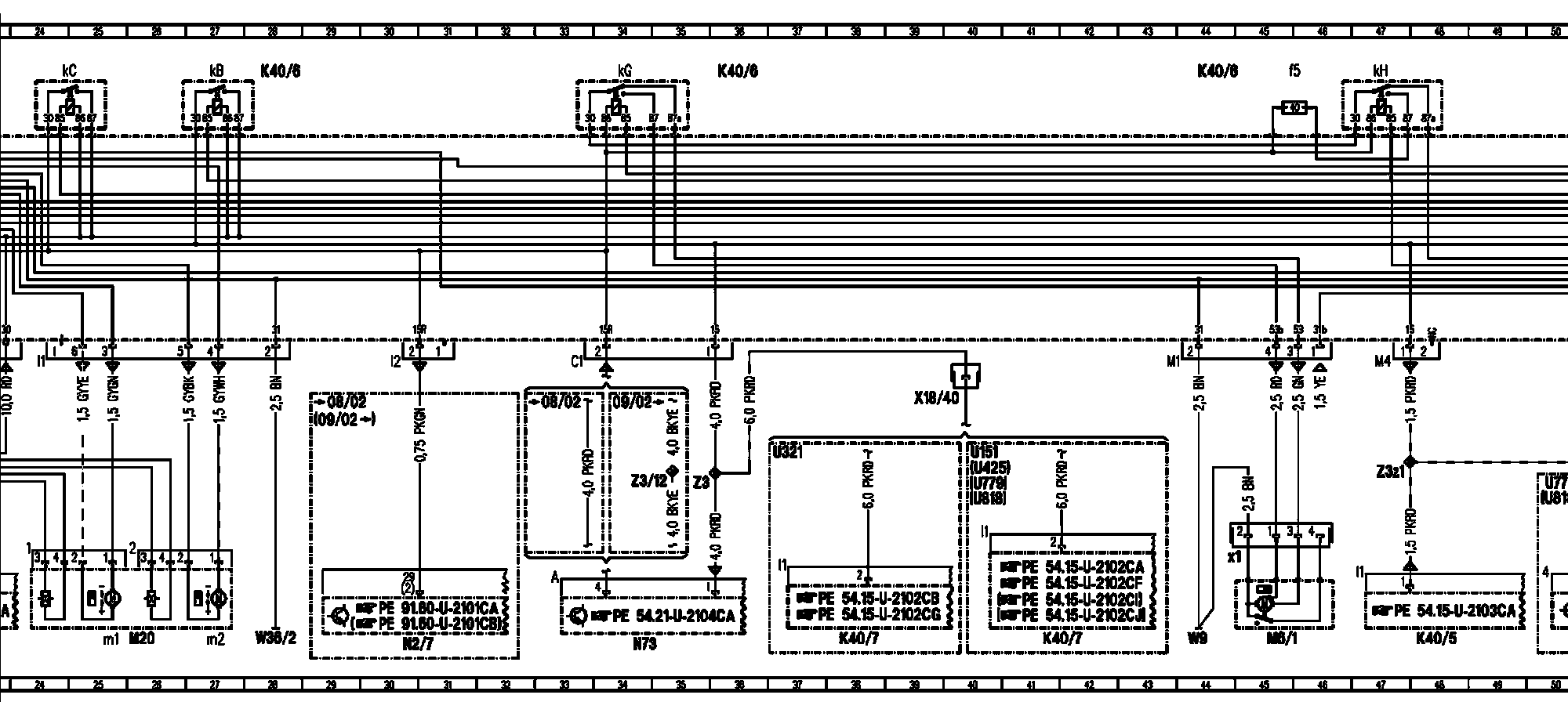

PE54.15-U-2101CA Fuse and Relay Box, Left
PE54.15-U-2101CA Fuse and Relay Box, Left
PE54.15-U-2101CA Fuse and Relay Box, Left

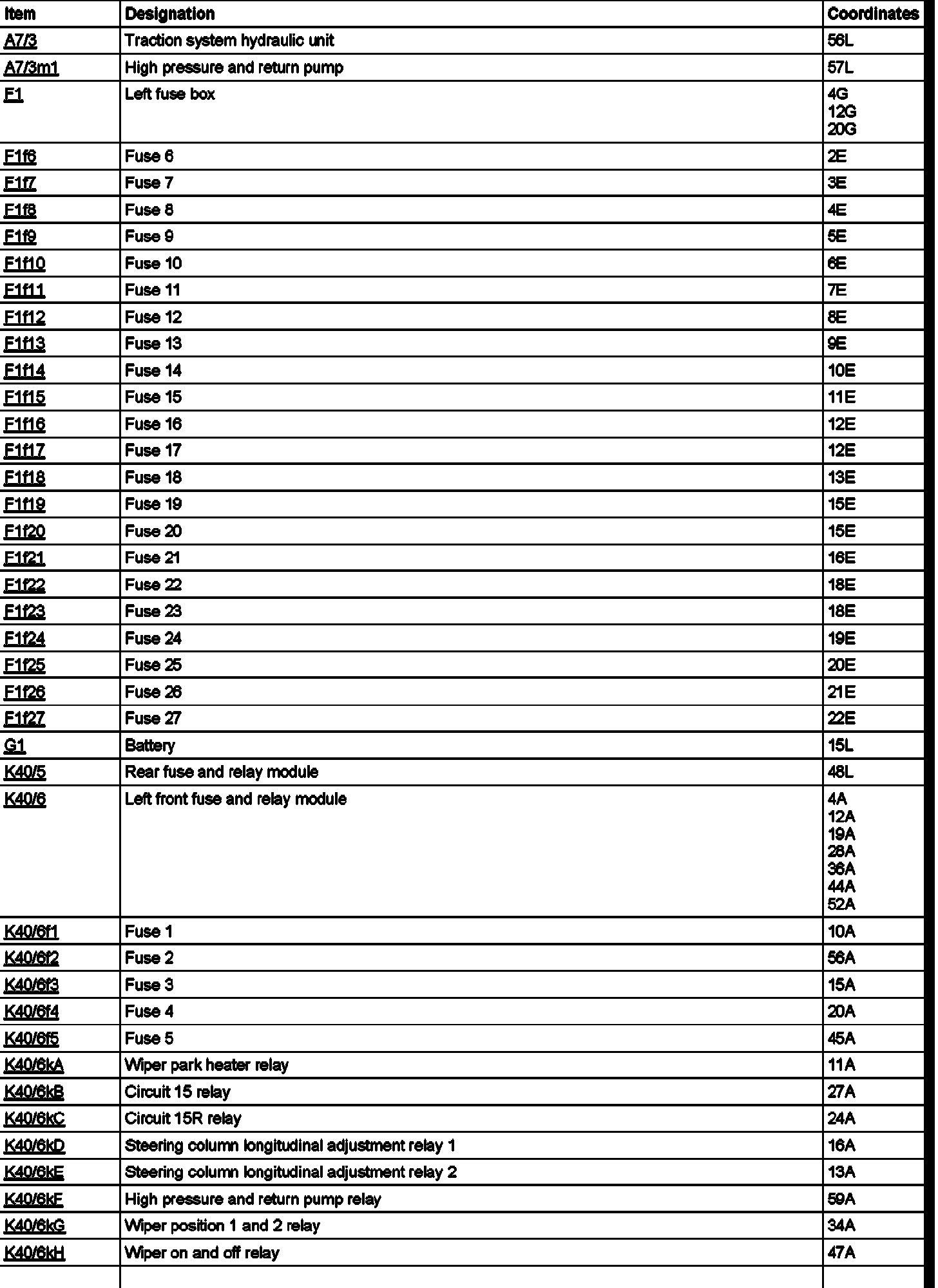

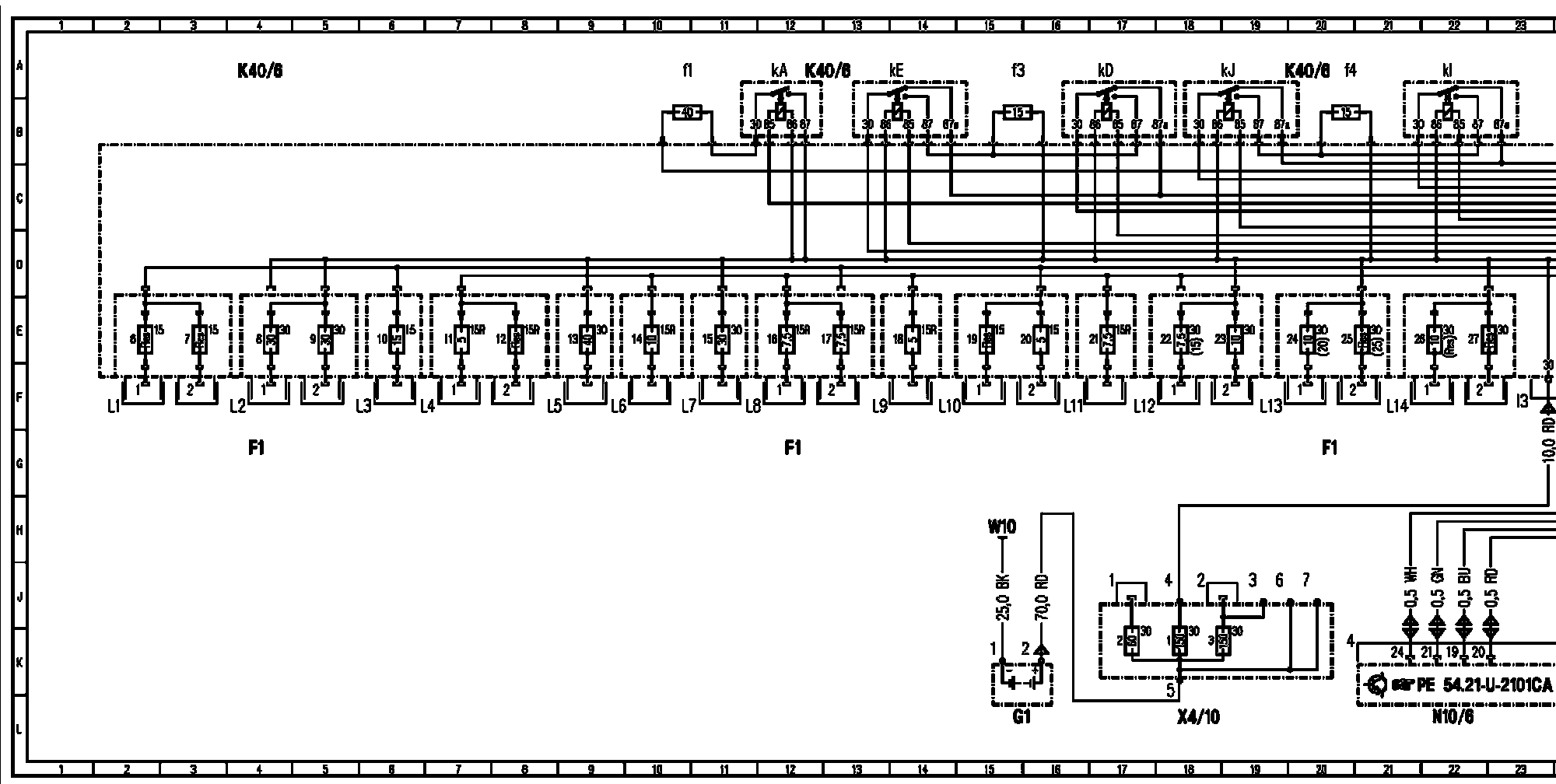

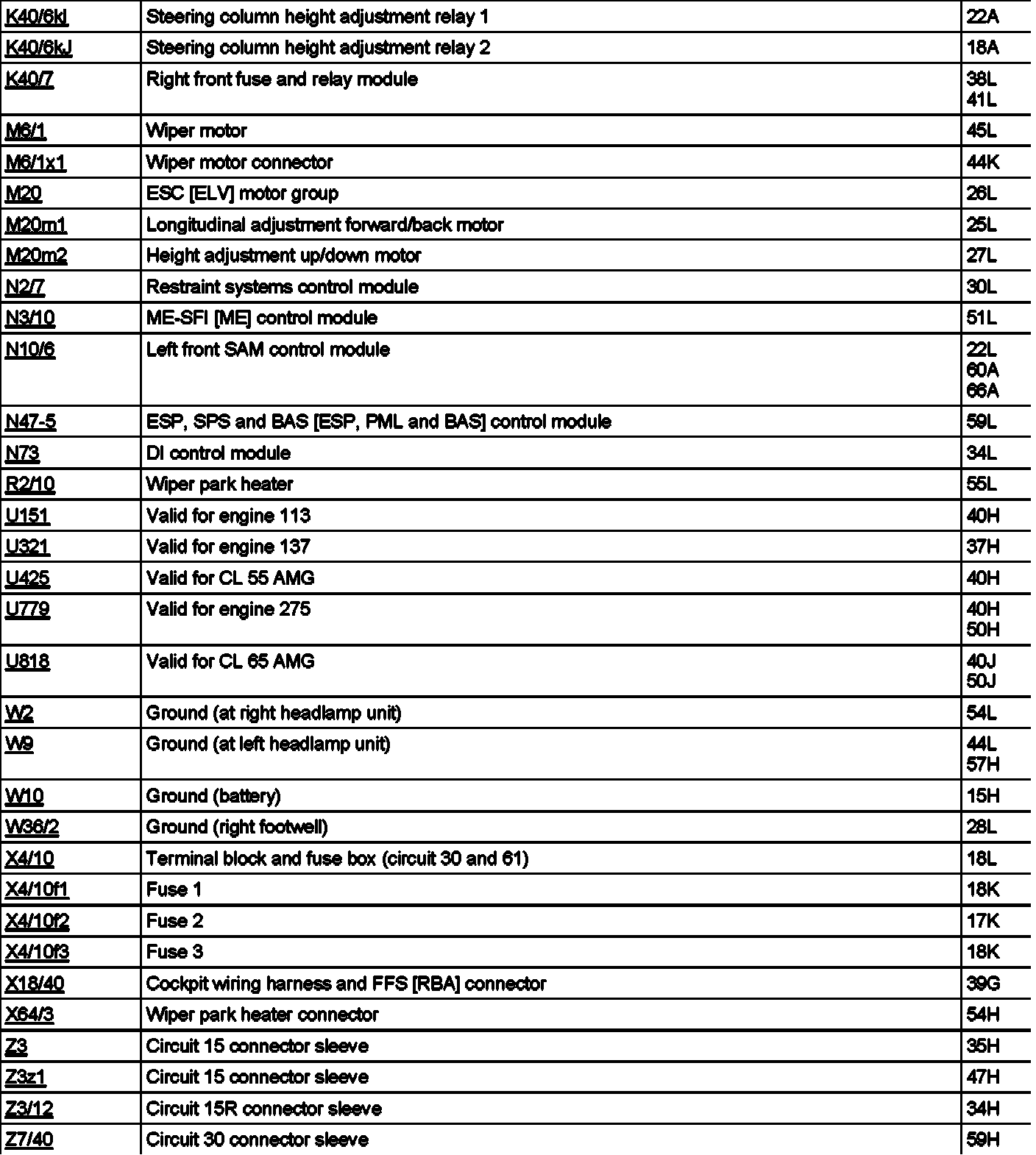

Supply of fuses in left fuse box
