PE07.61-U-2101CD ME-SFI Fuel Injection and Ignition System Control Module



PE07.61-U-2101CD ME-SFI Fuel Injection and Ignition System Control Module
Engine 113 as of 06/01/00 in Model 215

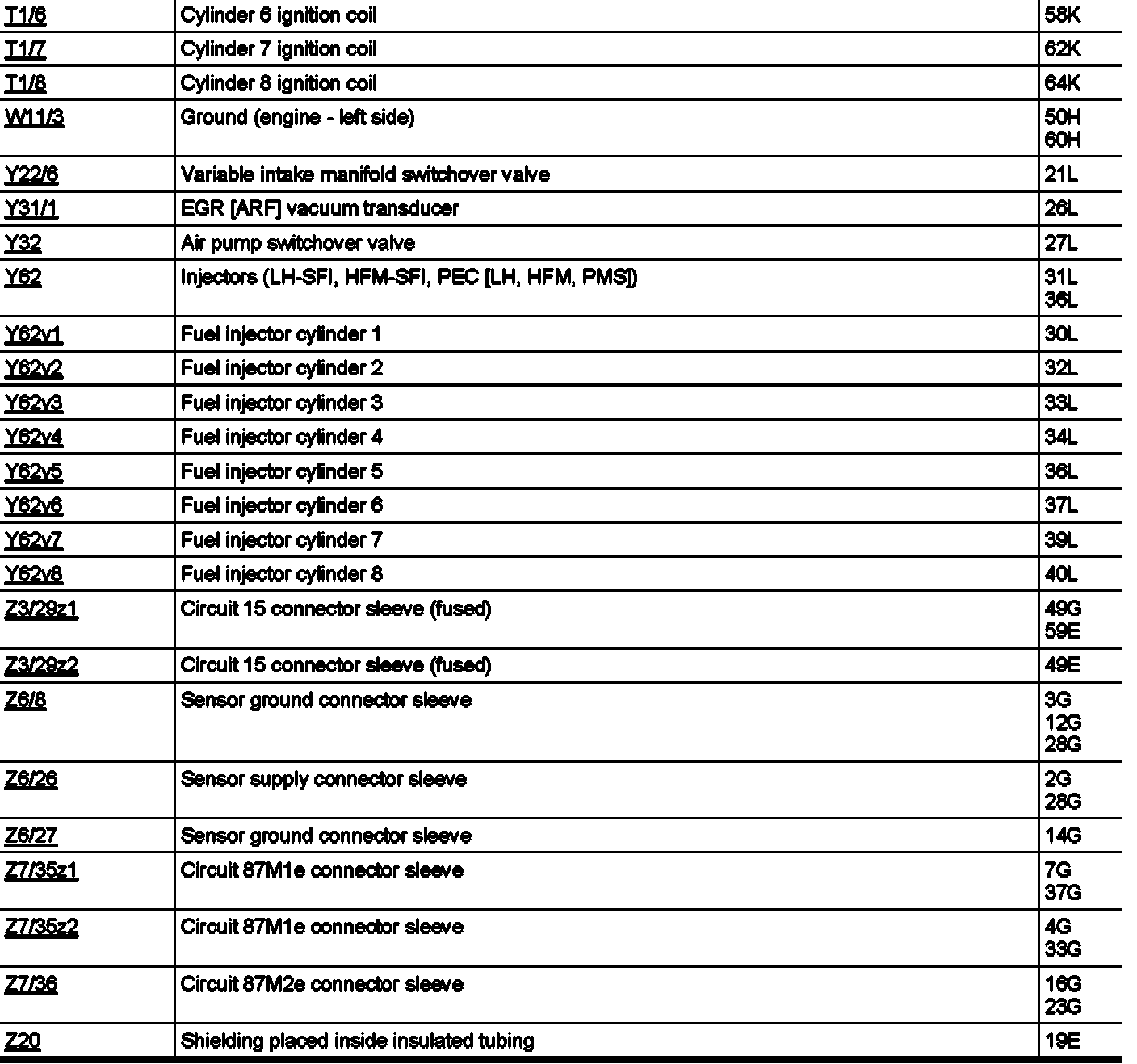

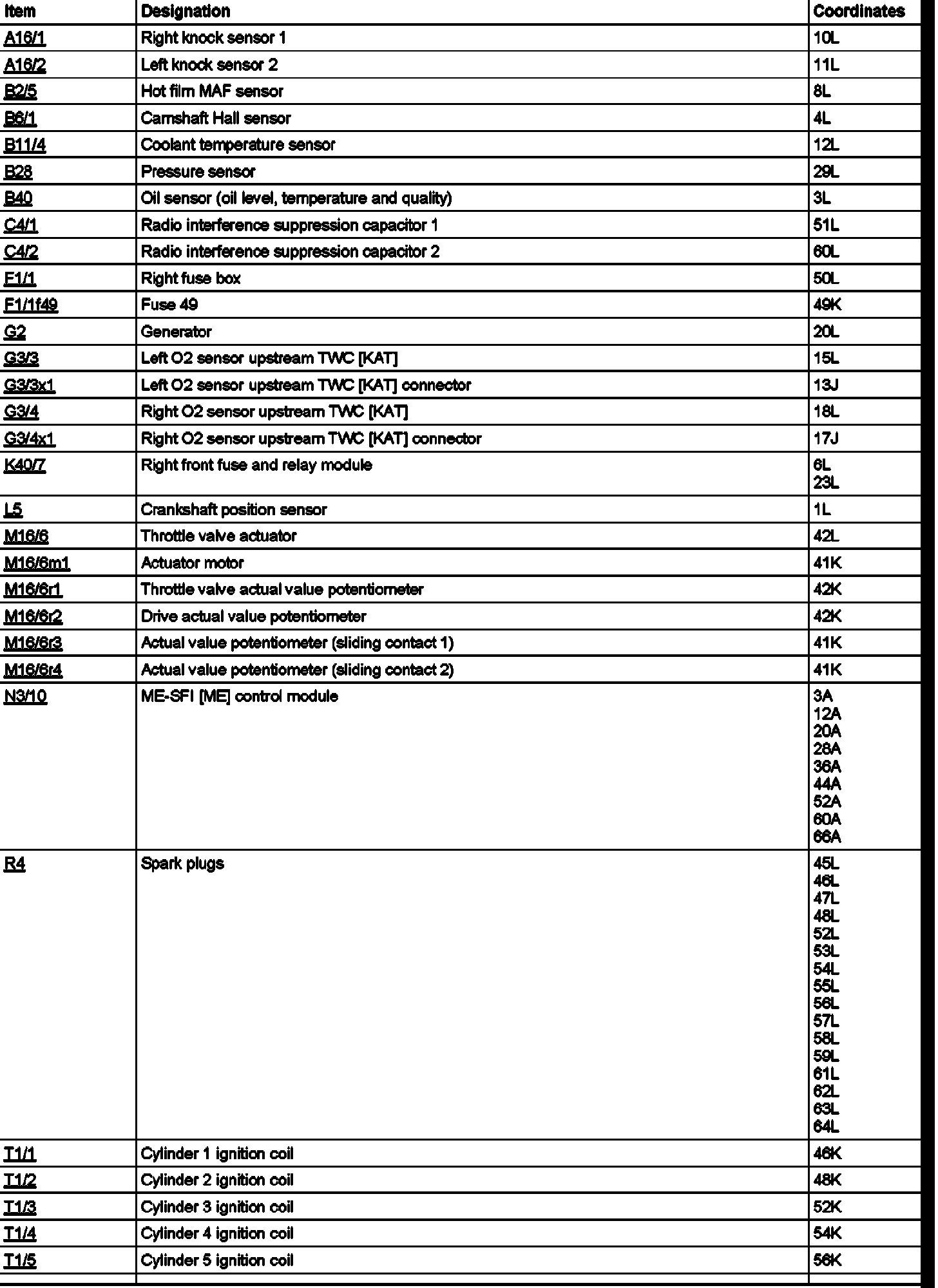

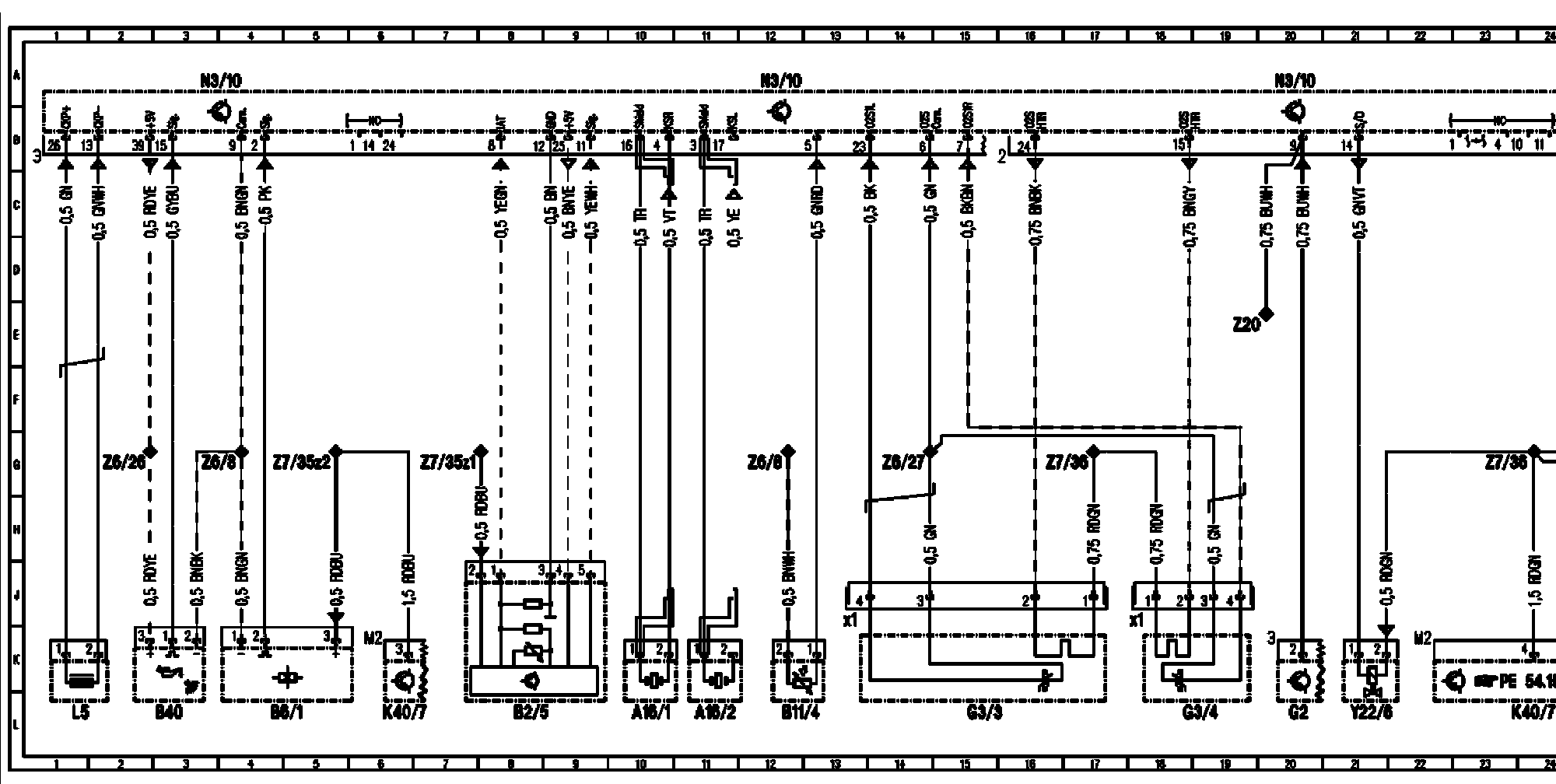

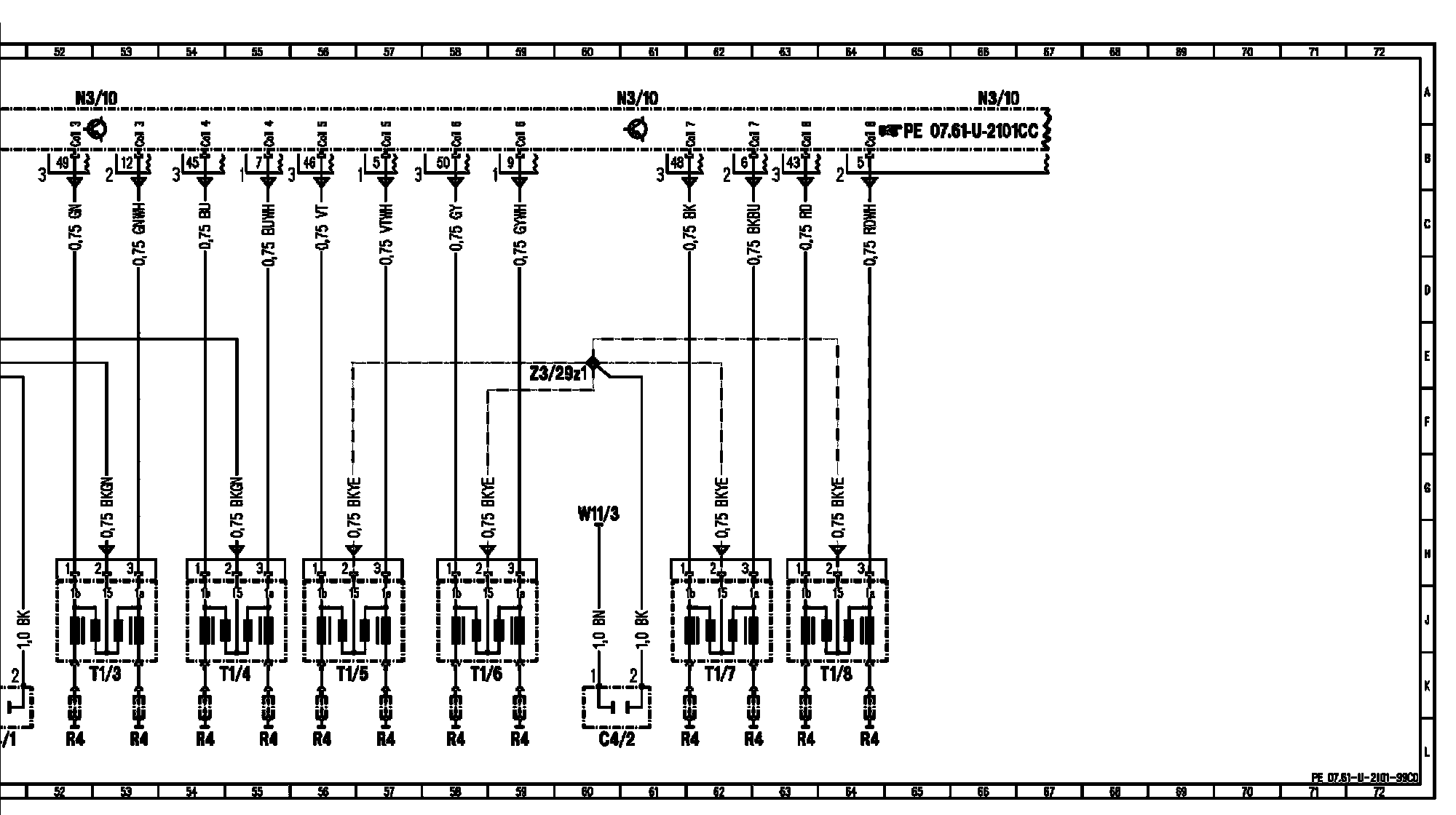

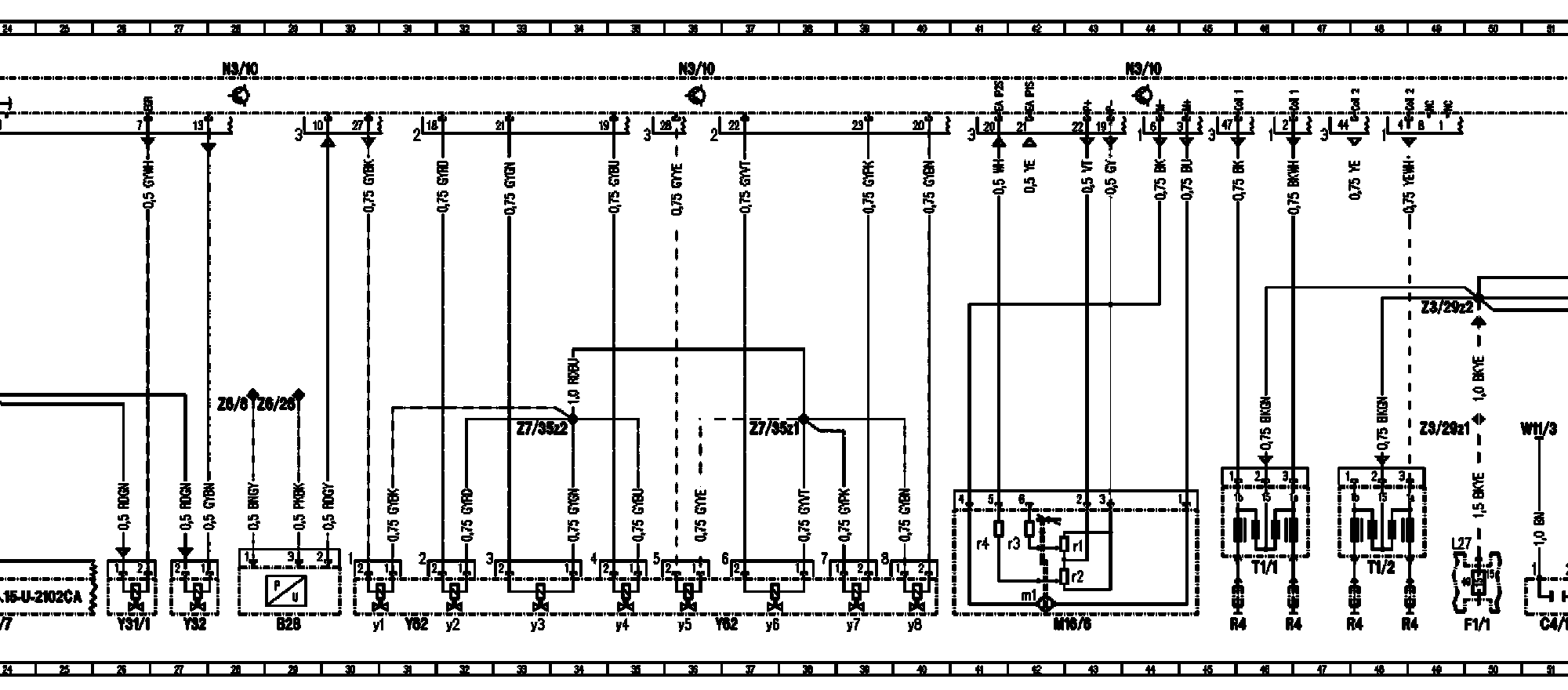

ME 2.8 F4, Control Module N3/10, Sheet 2
