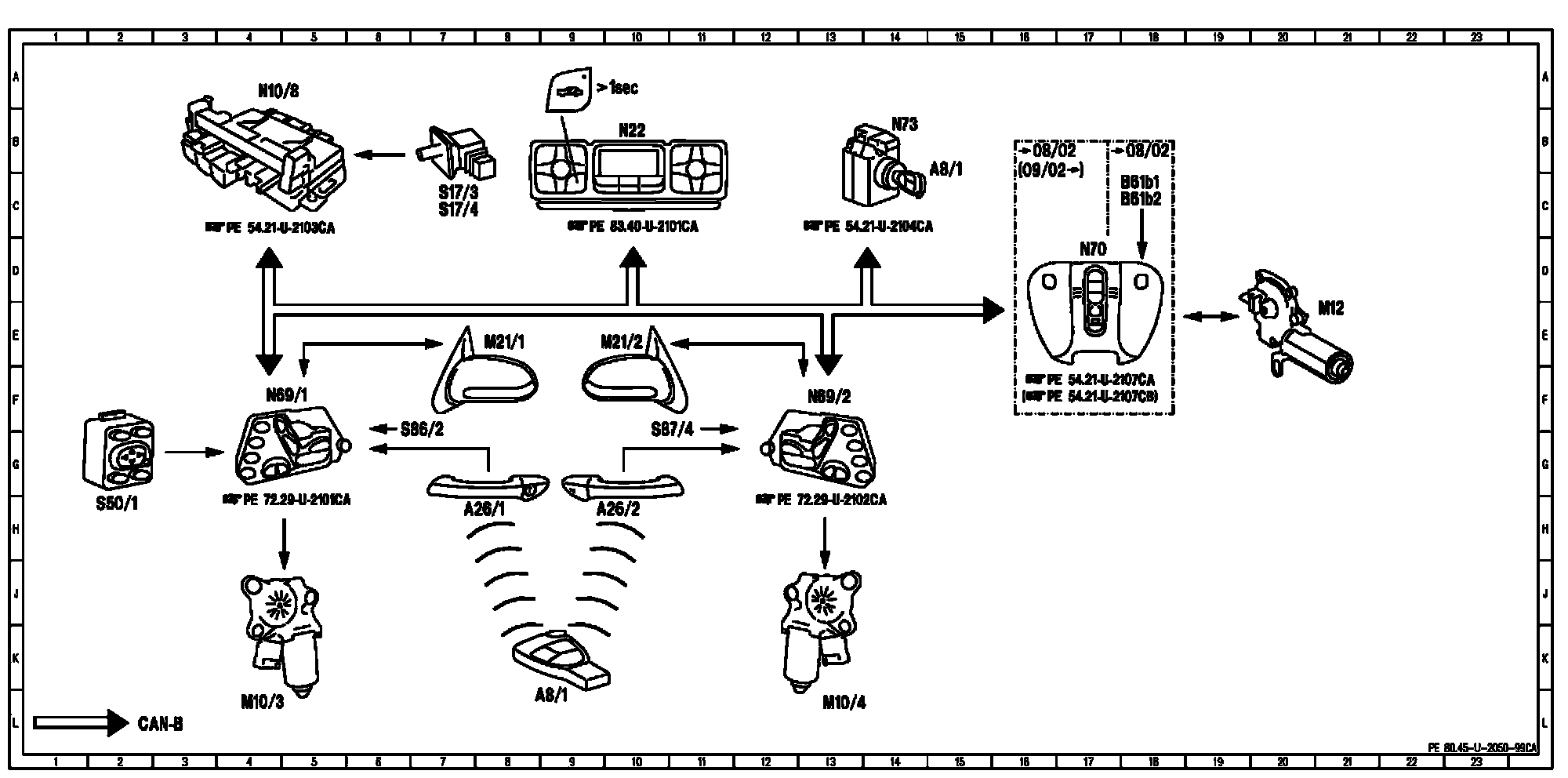

PE80.45-U-2050CA Function Schematic For Convenience Closing System Electrical System



PE80.45-U-2050CA Function Schematic for Convenience Closing System Electrical System
