Hydraulic Control Assembly - Antilock Brakes: Service and Repair

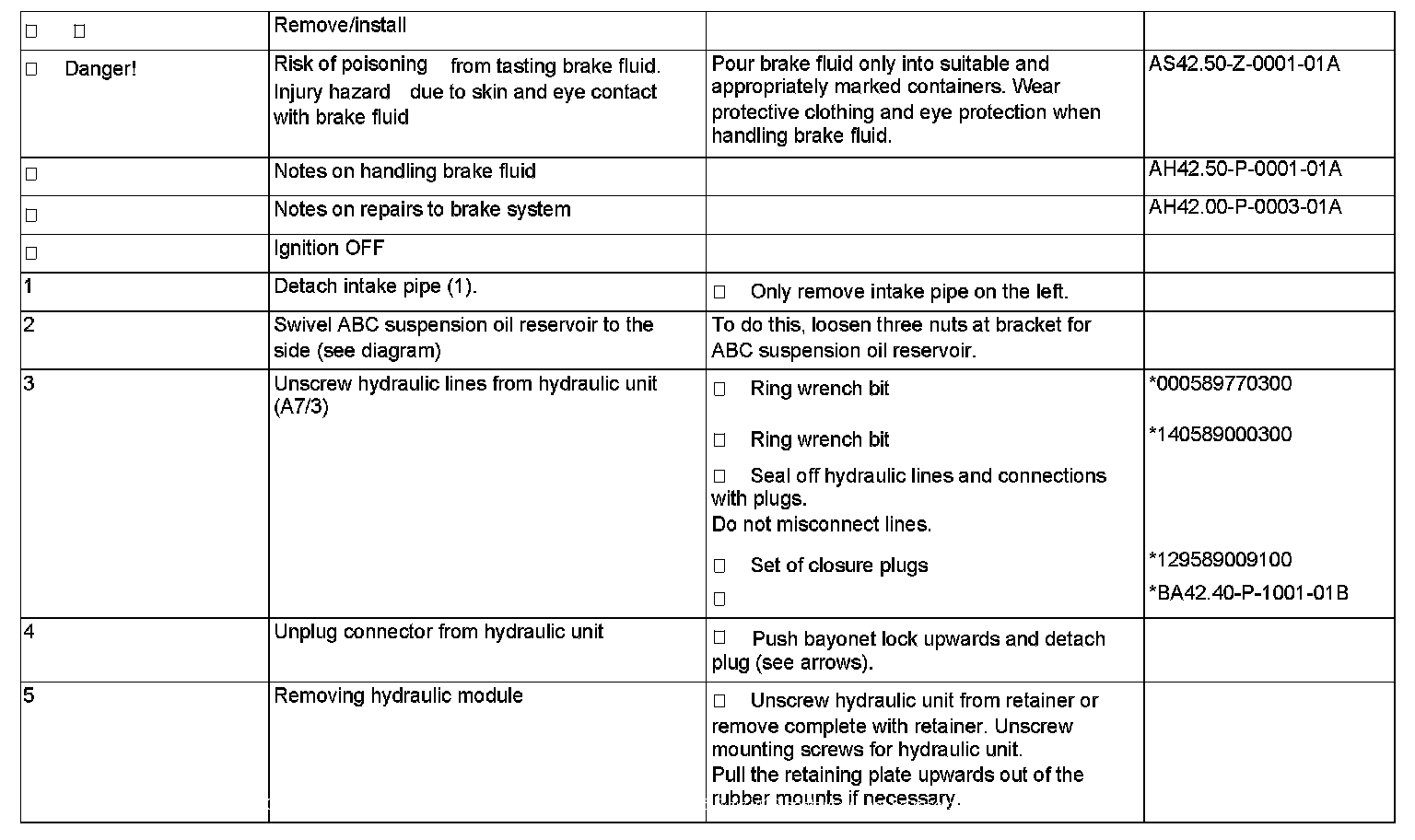

Remove/install ETS/ASR/ESP hydraulic unit
