Pinout Values and Diagnostic Parameters

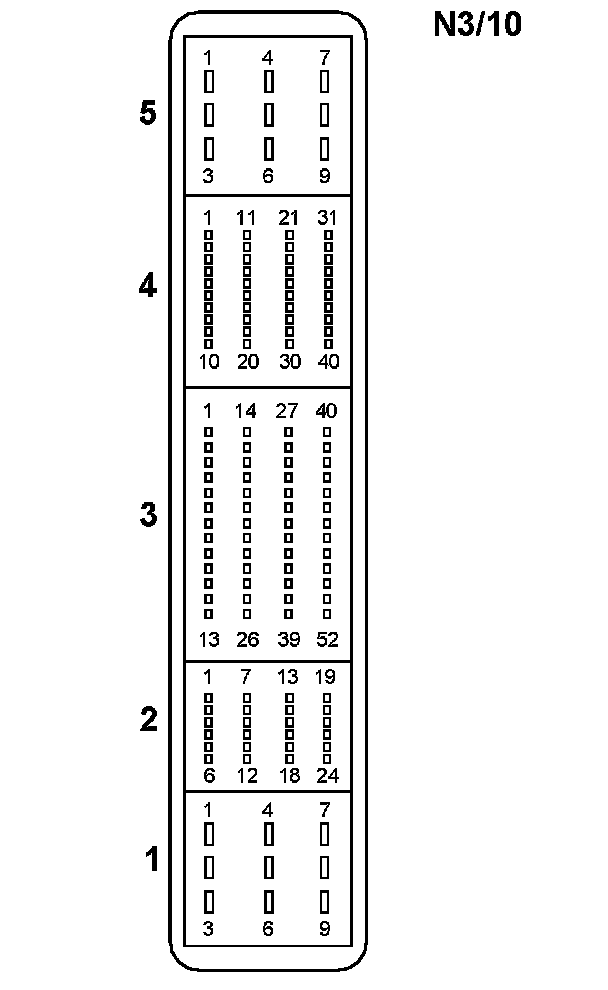

Connector View:

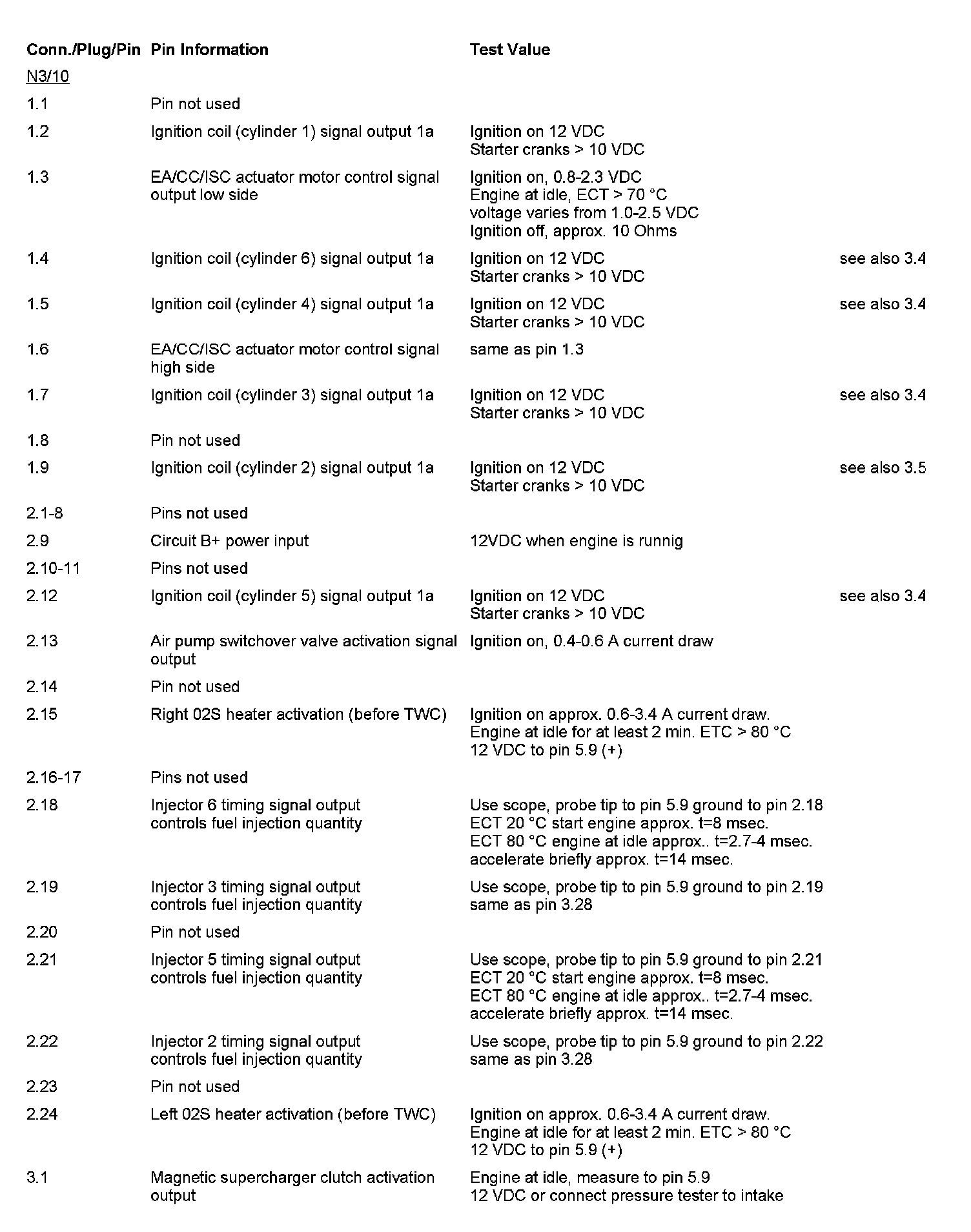

Pinouts Part 1:

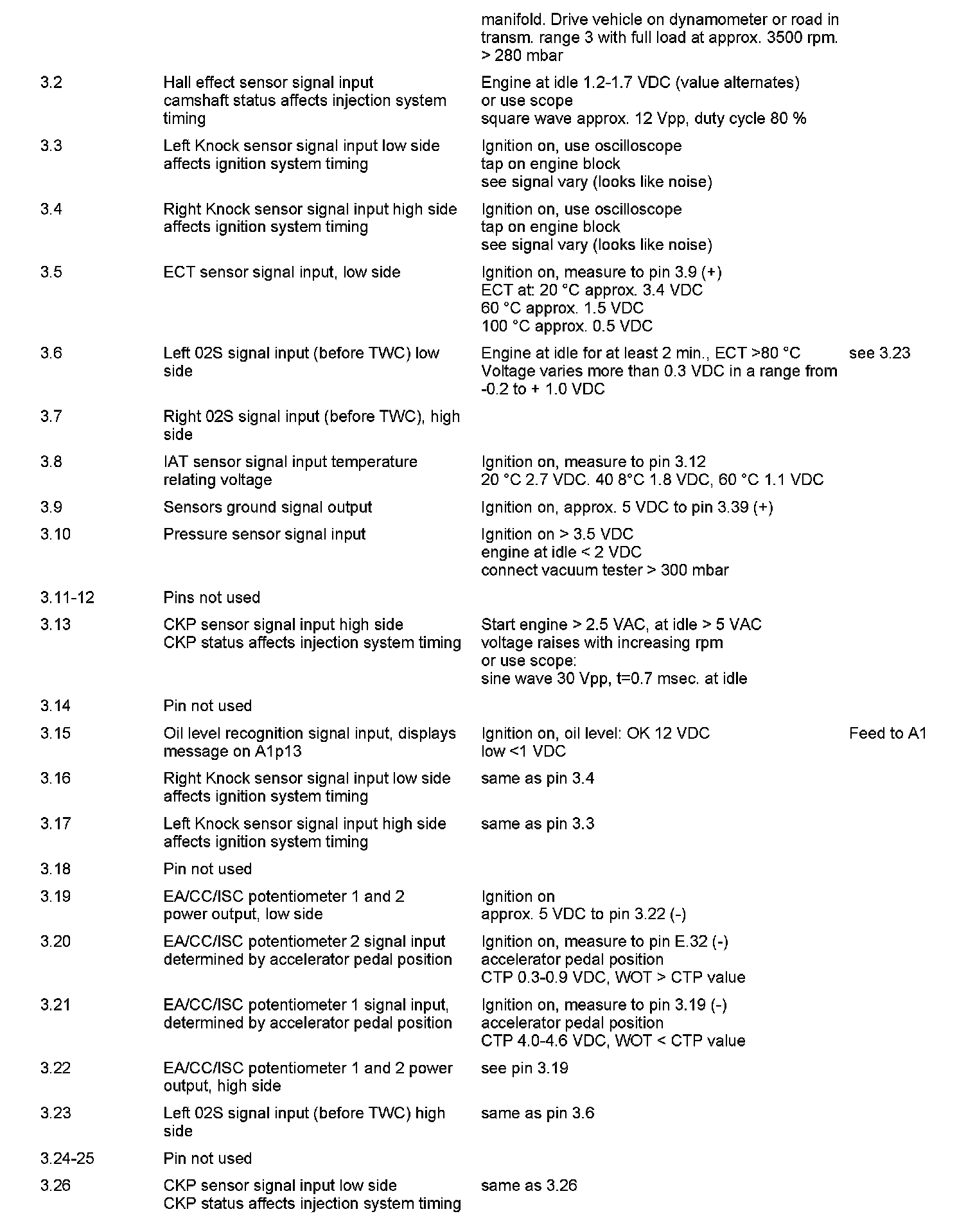

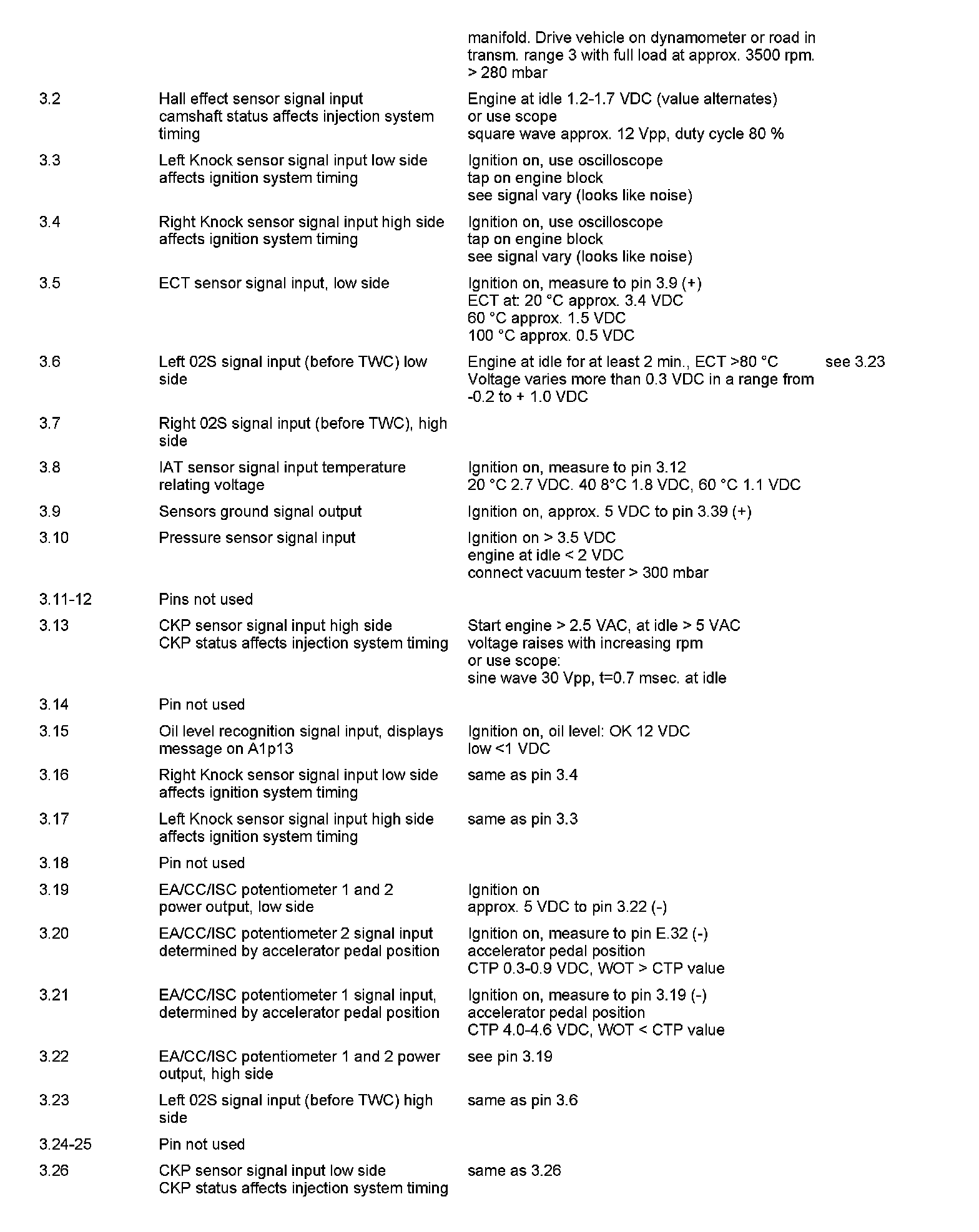

Pinouts Part 2:

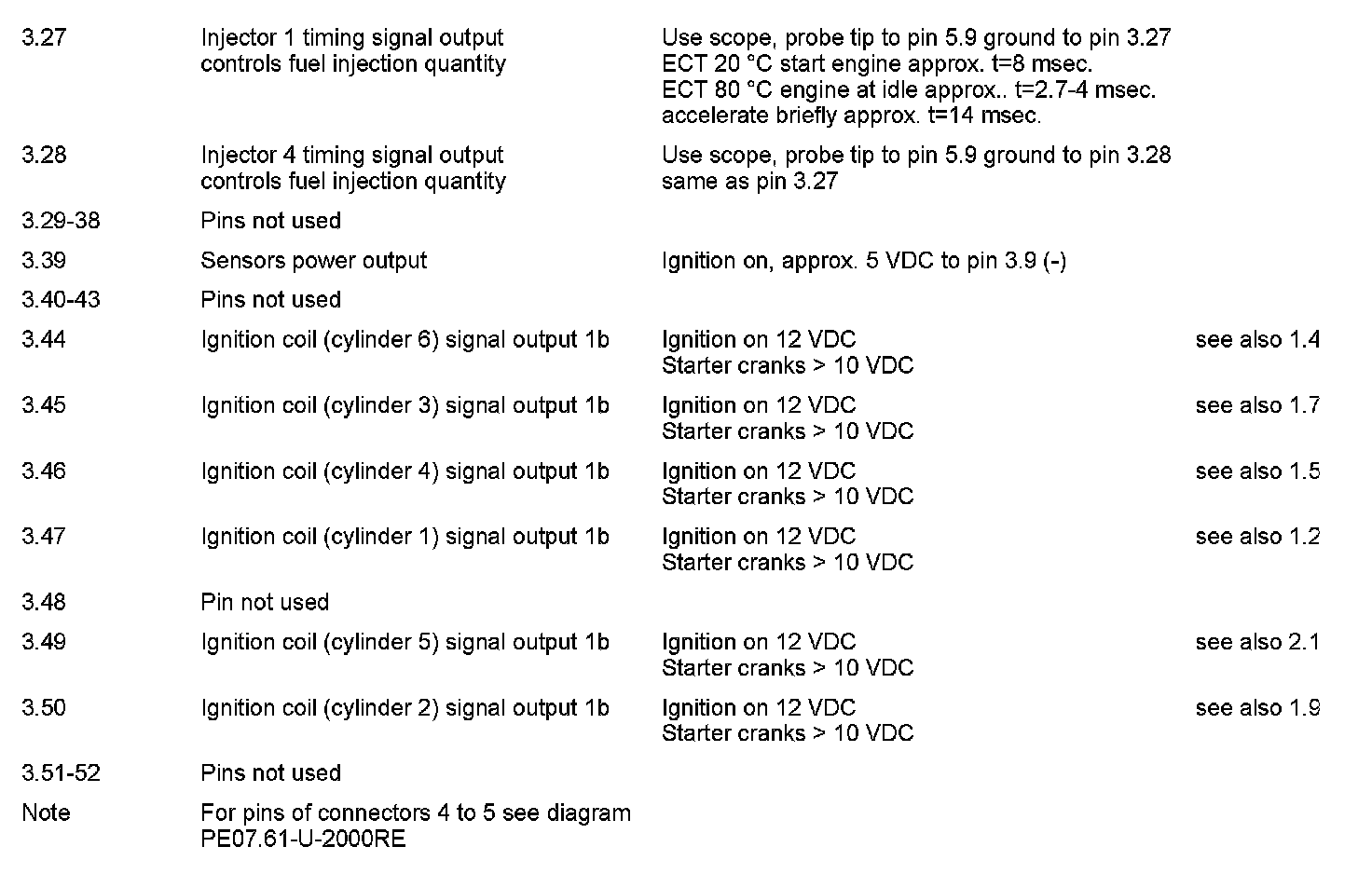

Pinouts Part 3:





Pinouts Part 4:

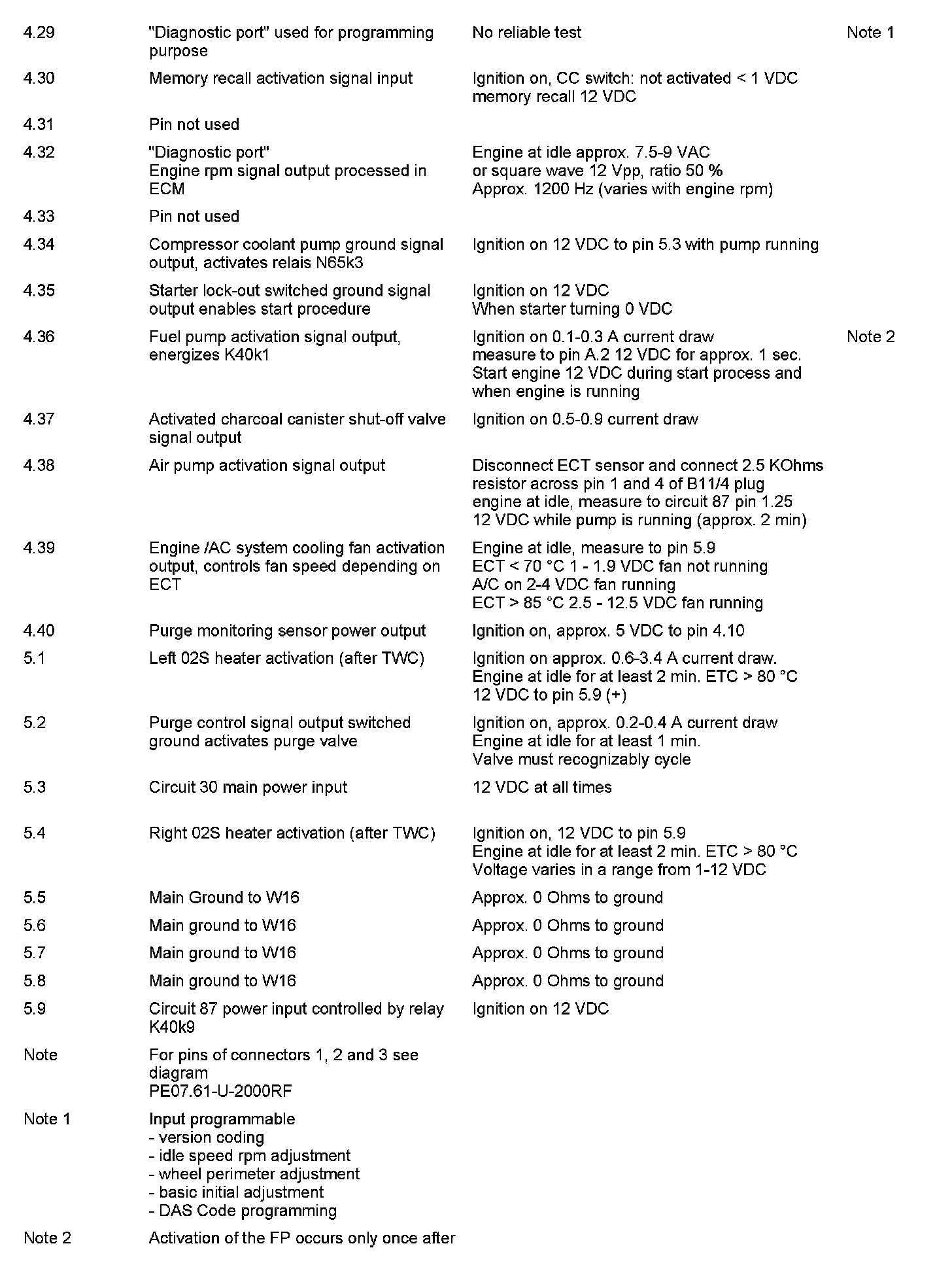

Pinouts Part 5:





Pinouts Part 6:

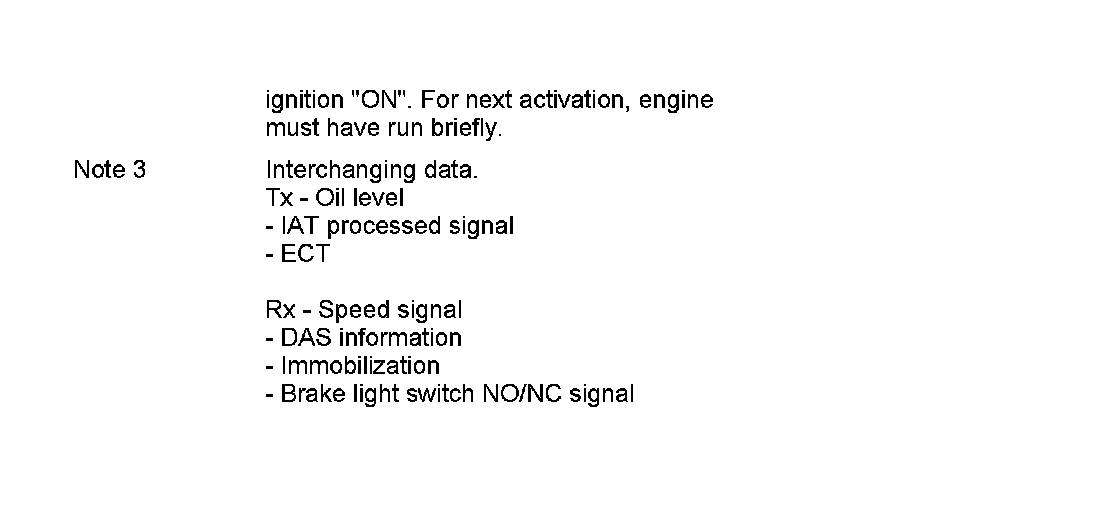

Note:
