Vent Valve, Location




Vent Valve, Position

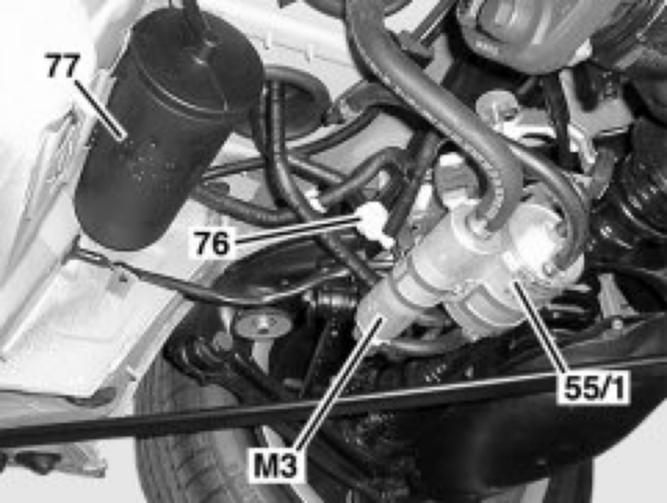

Vent valve (76) in the case of fuel pump assembly




55/1 Fuel filter with integrated diaphragm pressure regulator
76 Vent valve
77 Activated charcoal canister
M3 Fuel pump
