Secondary Air Injection Relay, Location

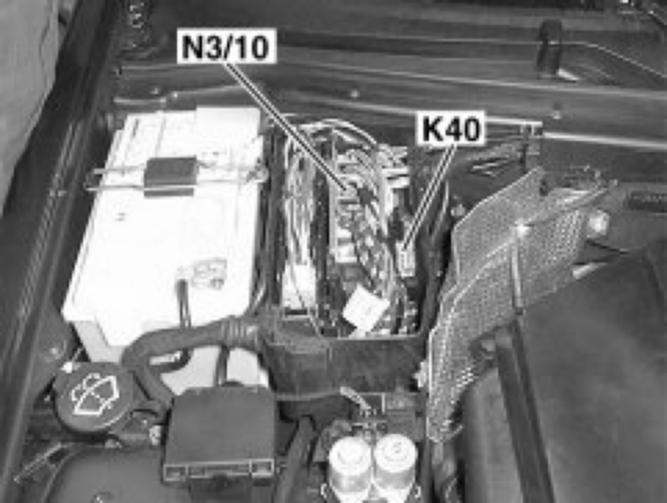

Secondary Air Injection Relay, Position

K40 Relay module with secondary air injection relay
N3/10 ME-SFI control module
