Fuel Tank, Function

Fuel Tank, Function

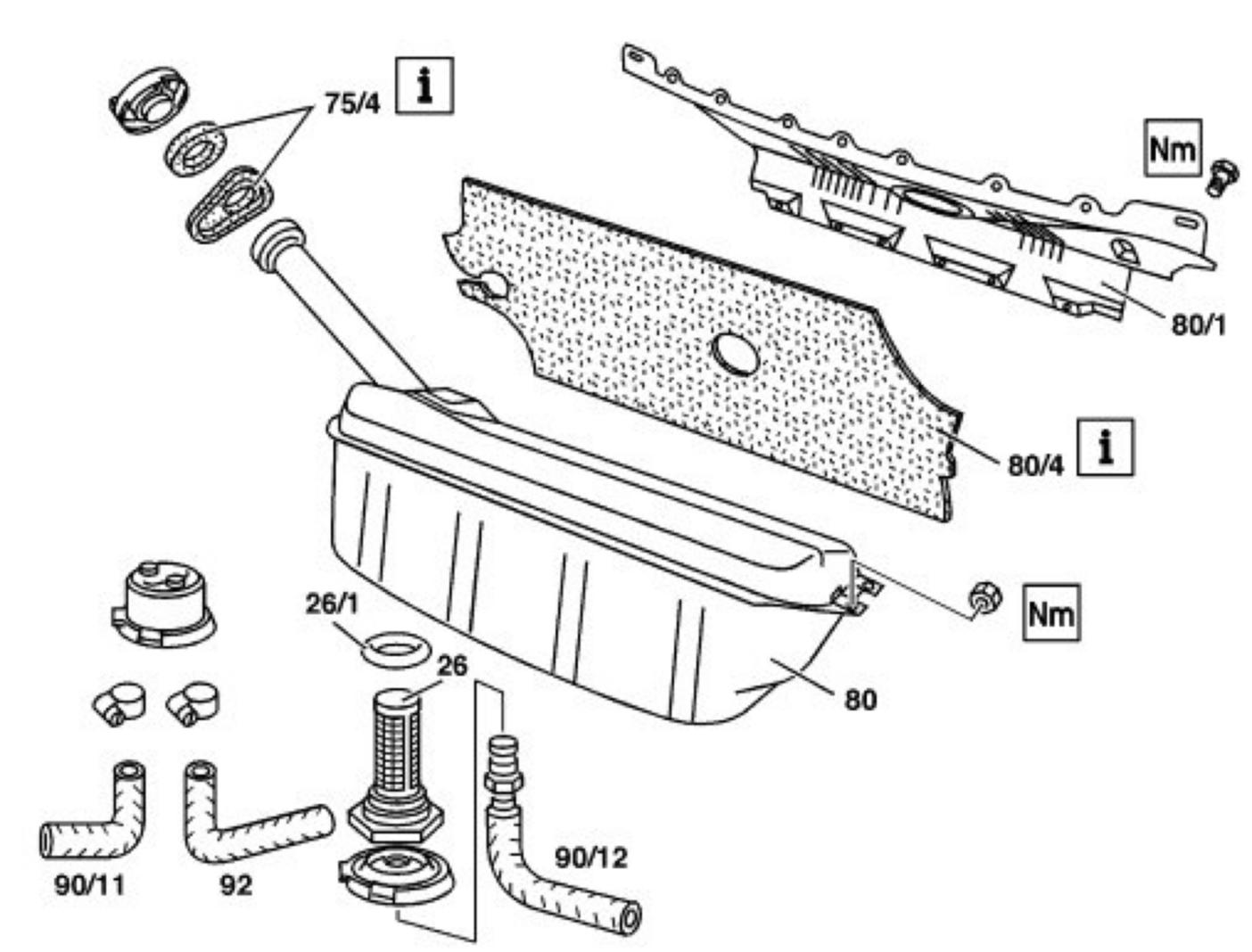

26 Fuel strainer
26/1 O-ring
75/4 Collar seals
80 Fuel tank
80/1 Cover of fuel tank
80/4 Sound insulation mat
90/11 Fuel return flow
90/12 Fuel inlet hose with connection fitting
92 Vent hose

The fuel is drawn through the fuel strainer (26) and the fuel inlet hose (90/12). The fuel flows back along the return flow hose (90/11). The vent hose (76/1) runs to the activated charcoal canister.
