Fuel Pump Relay, Location




Fuel Pump Relay, Location

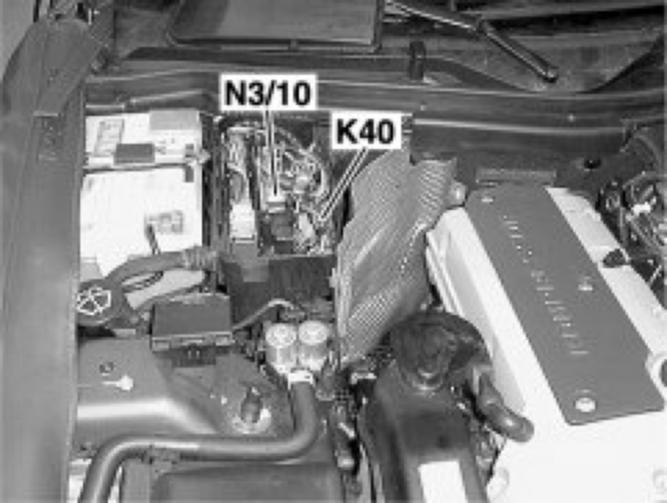

Model 170
K40 Relay module (K40k1 fuel pump relay installed)

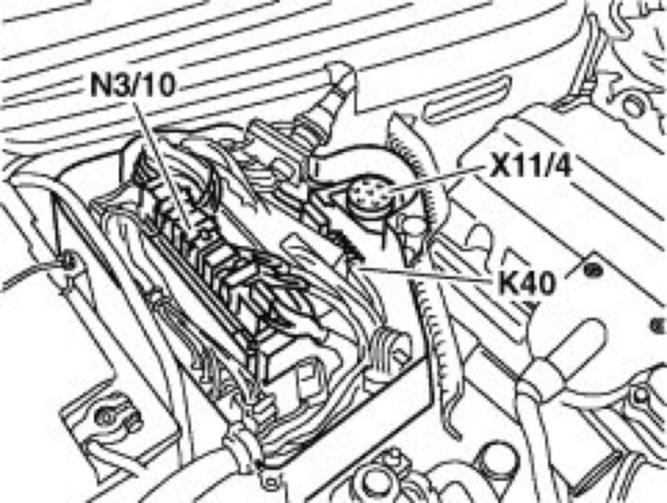

Model 170.444/49
K40 Relay module (K40k1 fuel pump relay installed)
