Exterior Lights With Xenon PE82.10-U-2000RA
Exterior Lights With Xenon PE82.10-U-2000RA
Exterior Lights With CODE (612b) Xenon
Headlamp
Unit

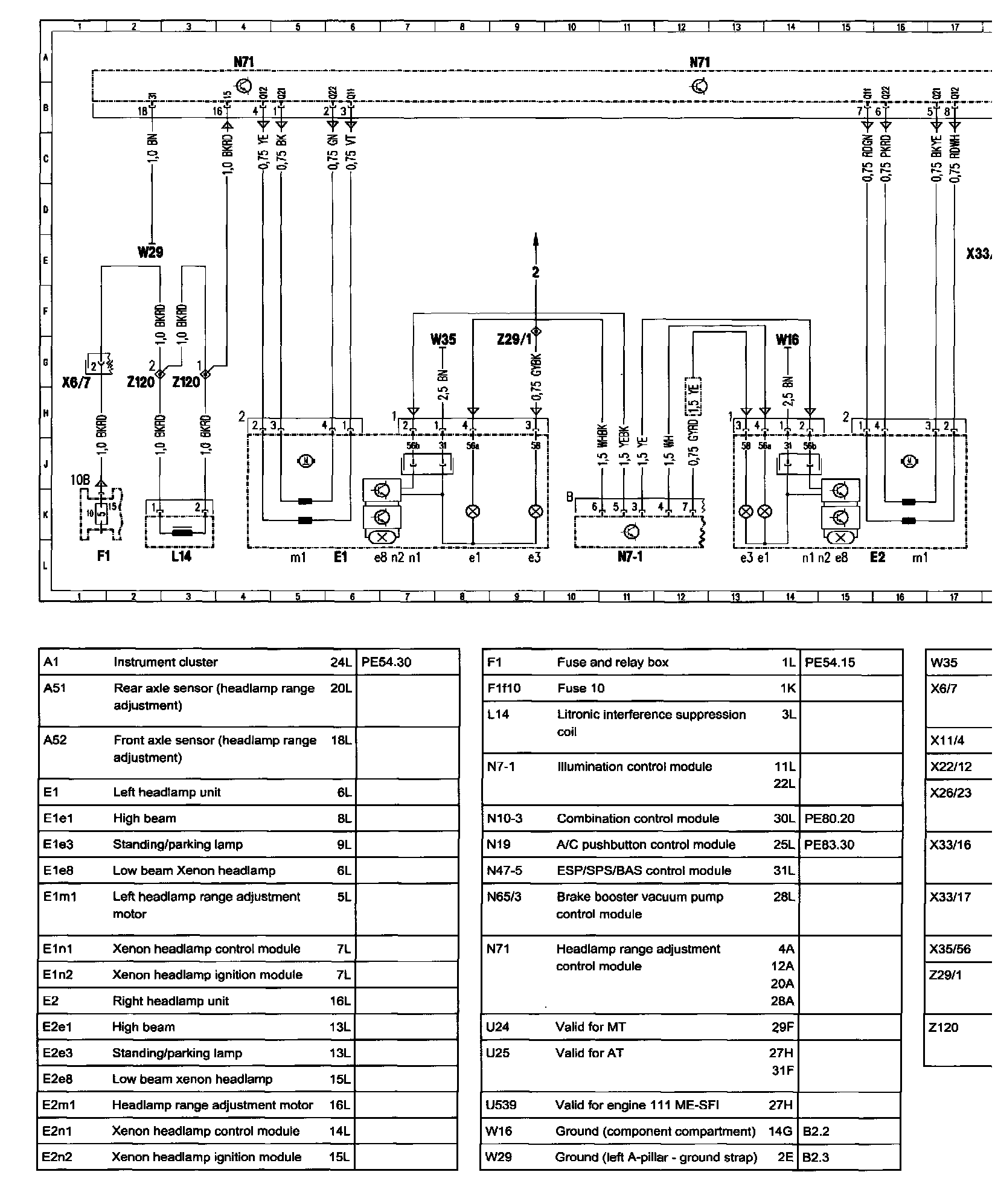

��%c &cWiring Diagram:

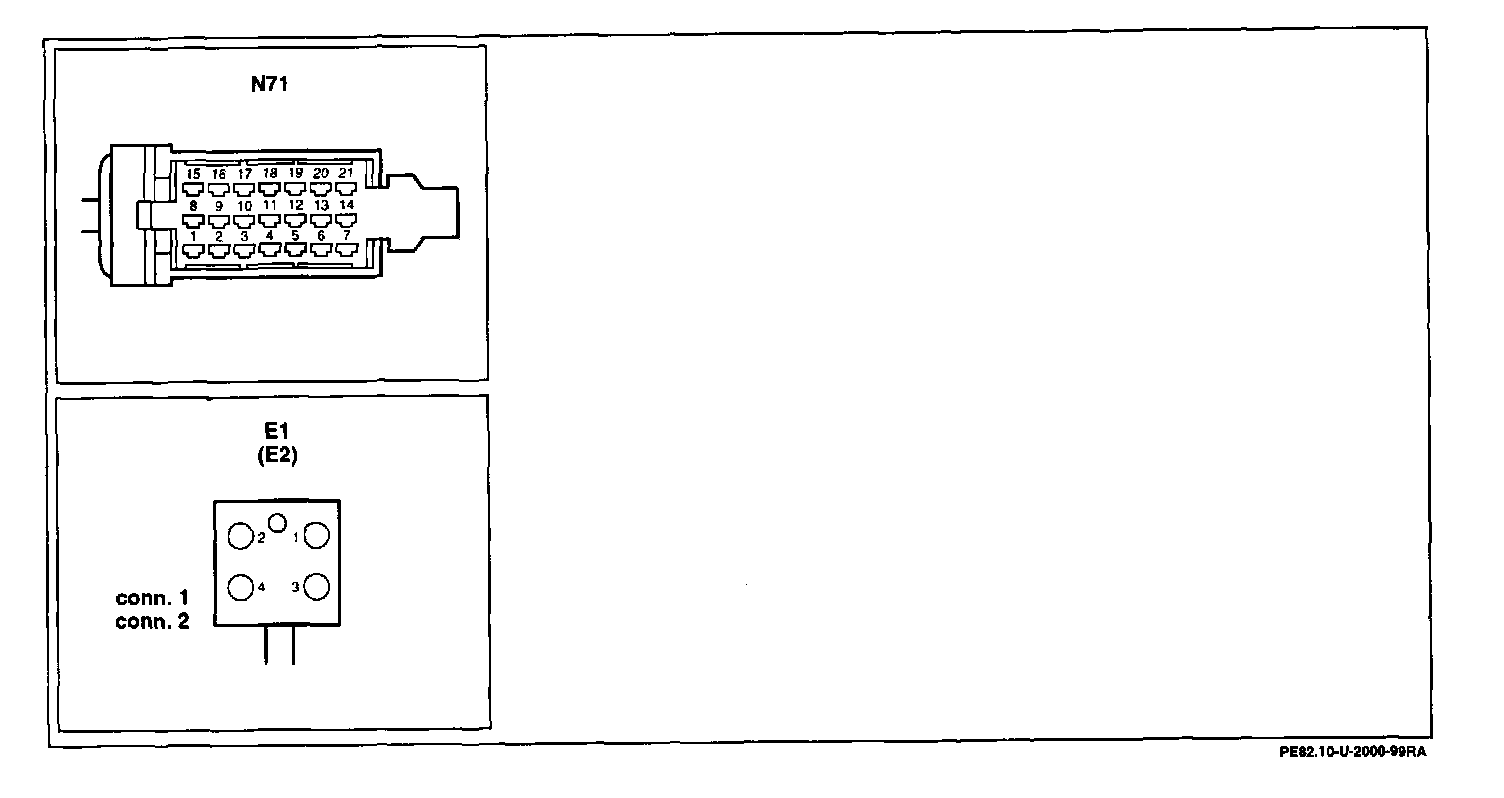

Connector Assignment:

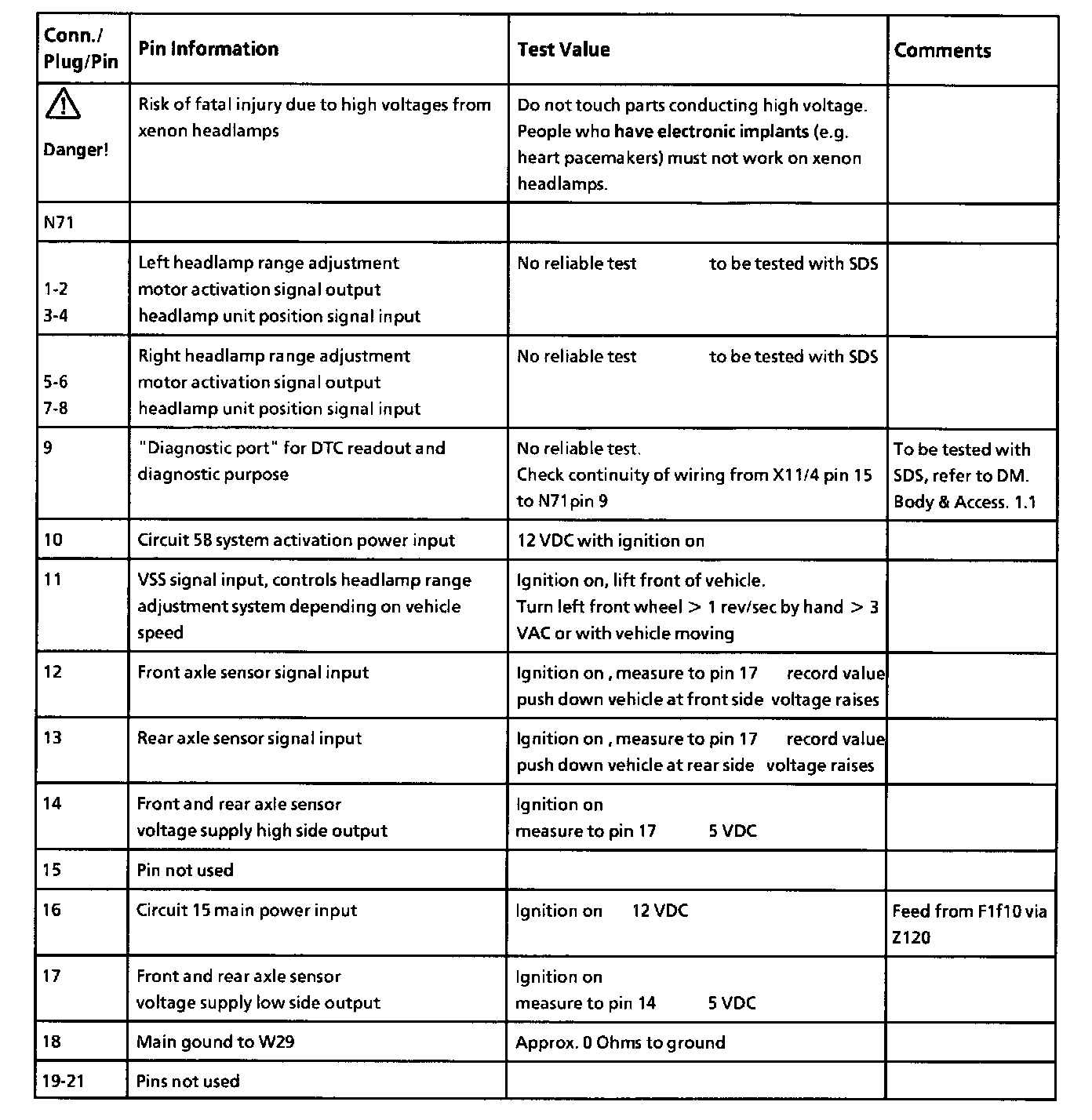

Pin Information:
