SLK 32 AMG (170.466) V6-3.2L SC (112.960)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
System Diagram
Fuse and Relay Box (F1)

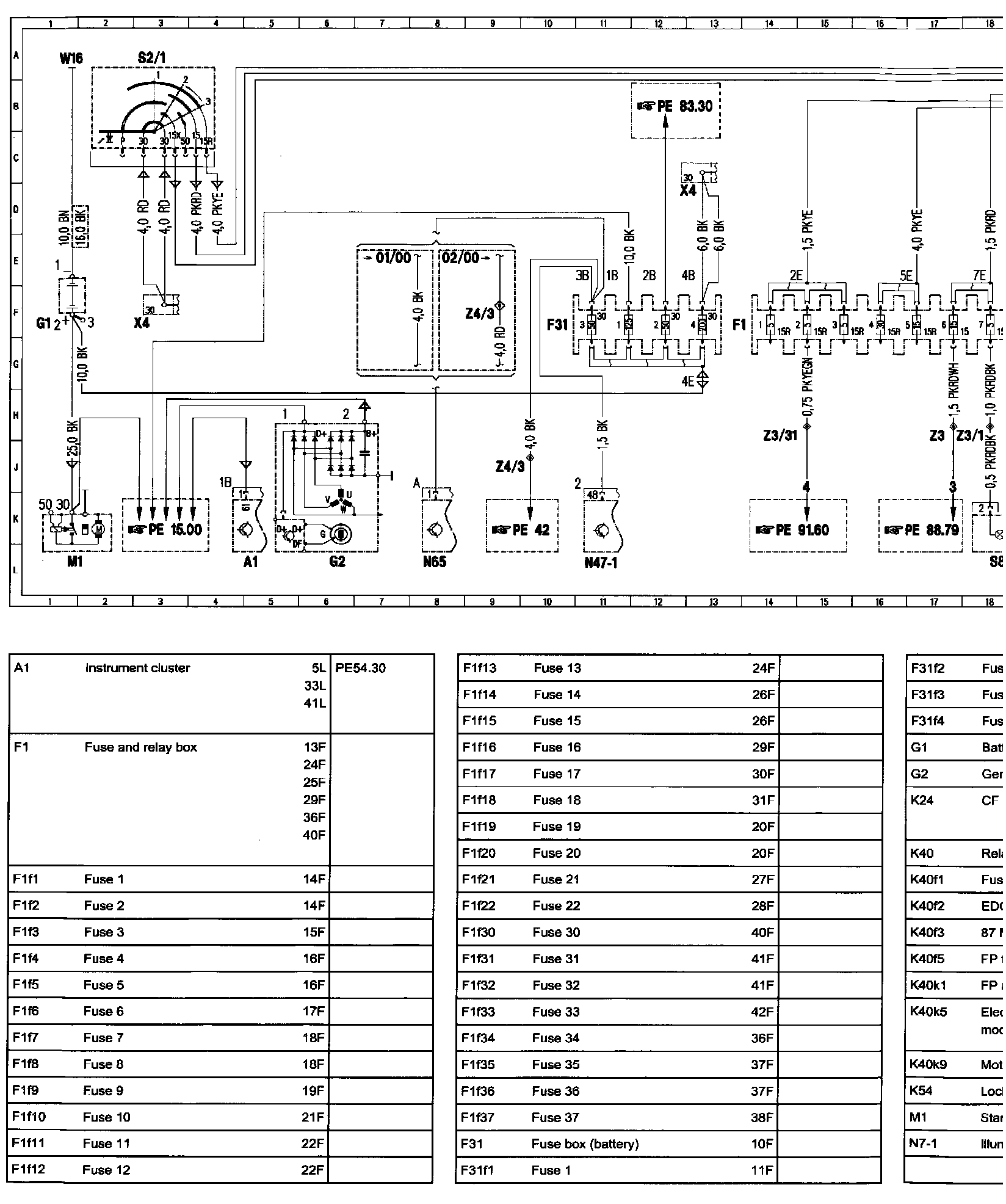

�s�,��,�'�,Wiring Diagram:

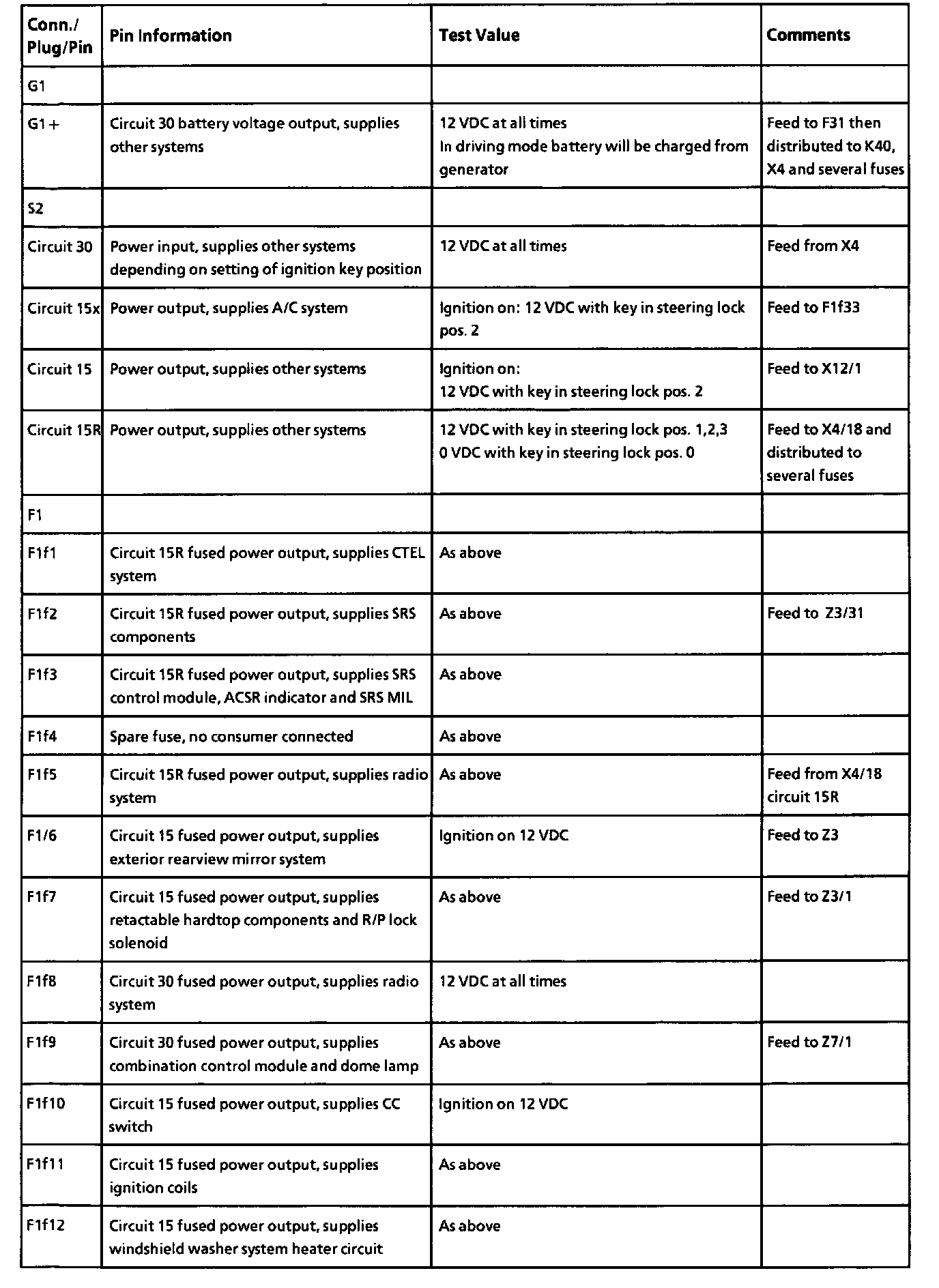

Pin Information, Part 1:

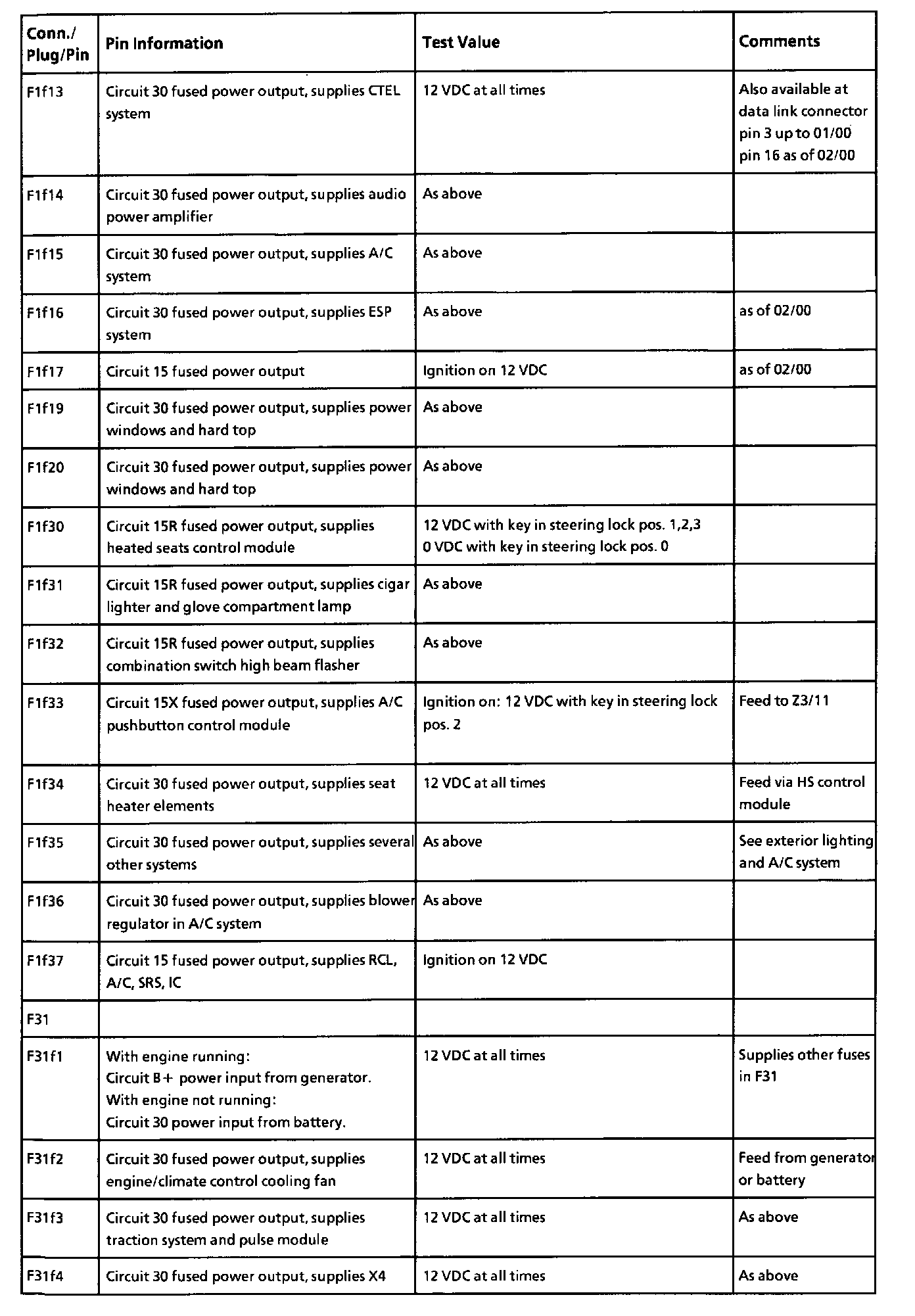

Pin Information, Part 2:
