Connector Views
Connector Views
Pin-Out Testing - Component: N10-3 (Combination Control Module)

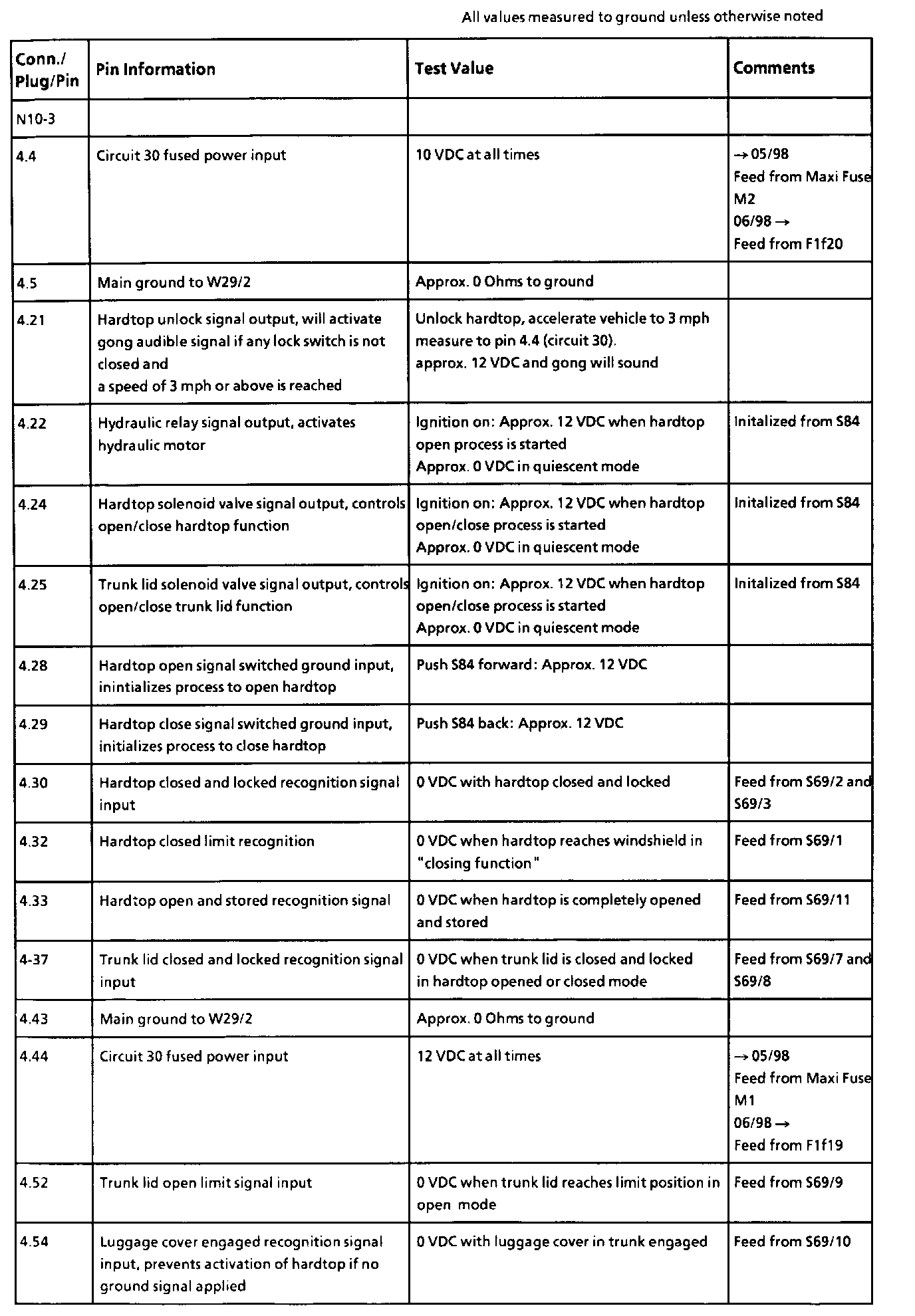

Connector N10 - Pin 3 Through 4 - Pin 54:

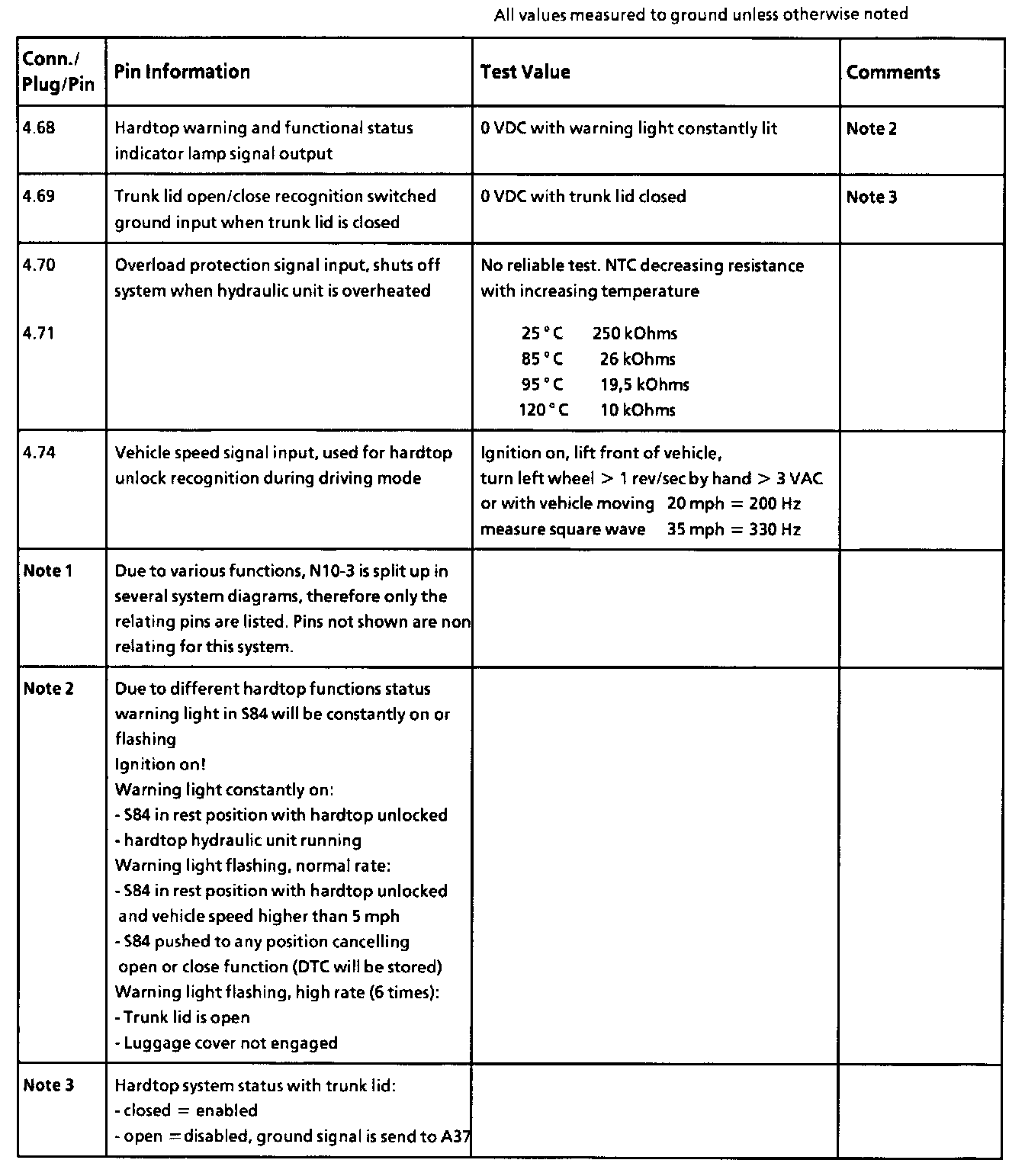

Connector 4 - Pin 68 Through 4 - Pin 74:

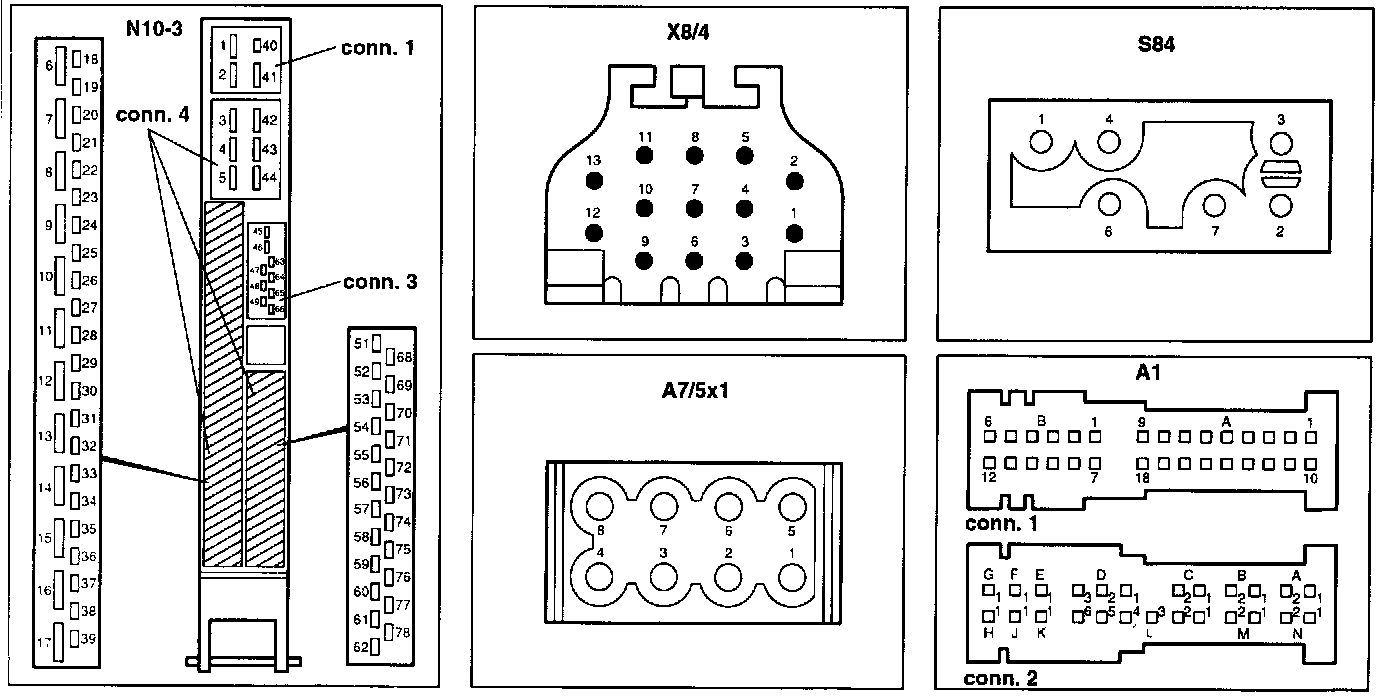

Connector Views:
