Trunk / Liftgate Release Lever: Service and Repair



AZ88.50-P-0002G Retrofitting Trunk Lid Emergency Release
- Mechanical emergency release

Component Identification:

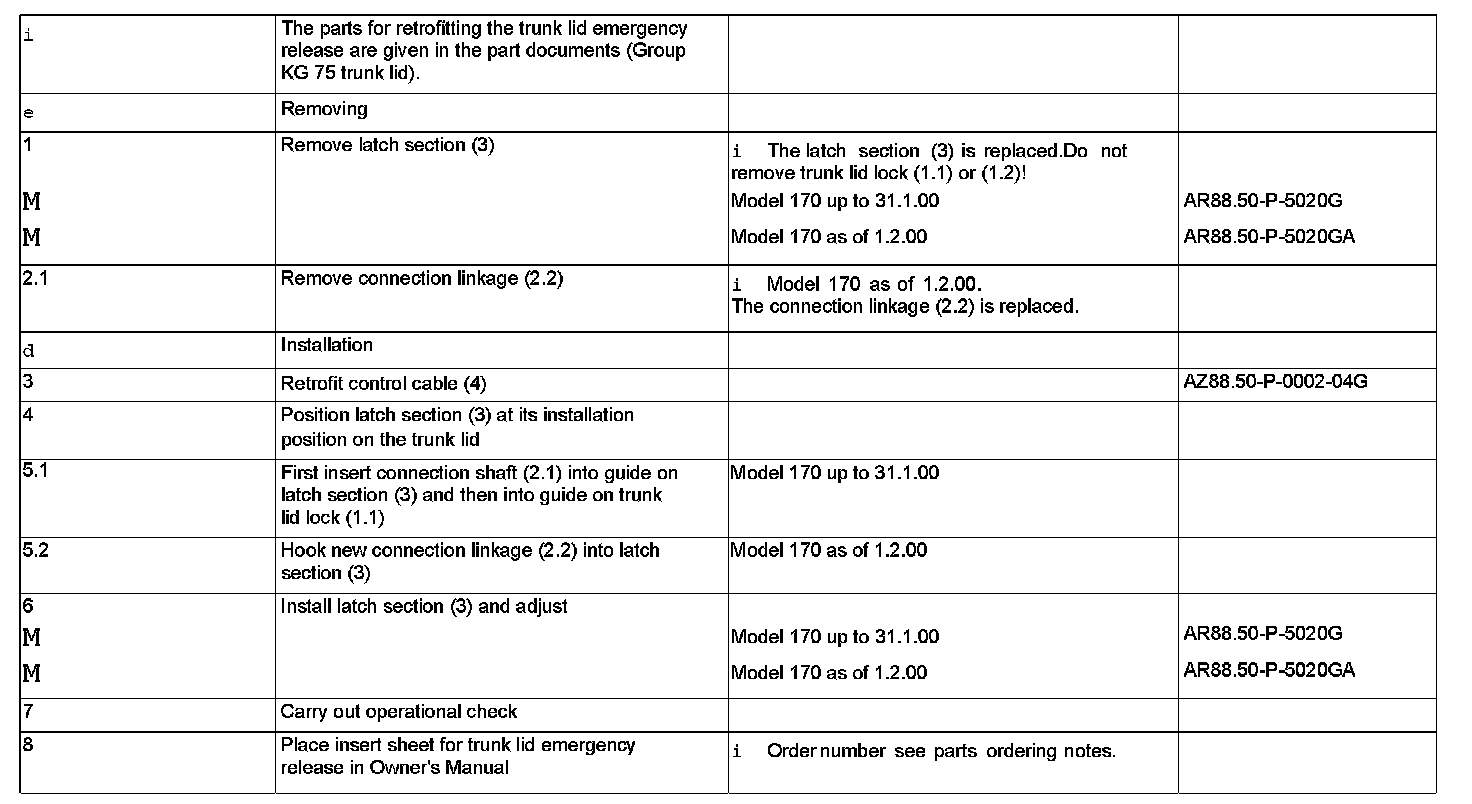

Steps 1 - 8:
