Anti-Theft Alarm System (ATA) PE80.50-U-2000YE
Anti-Theft Alarm System (ATA) PE80.50-U-2000YE

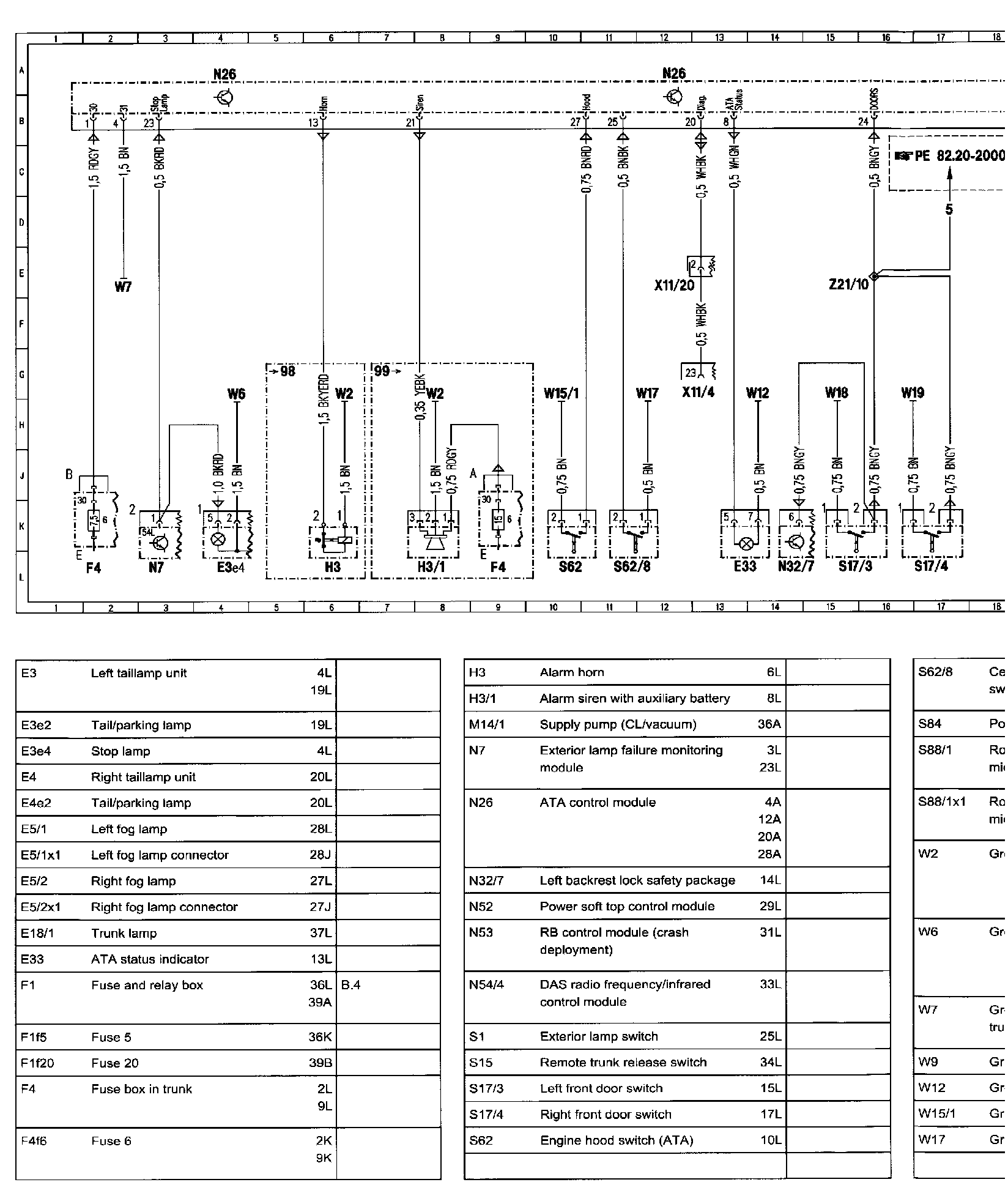

Anti-Theft Alarm System (ATA)
0�= ��=PE80.50-U-2000YE:

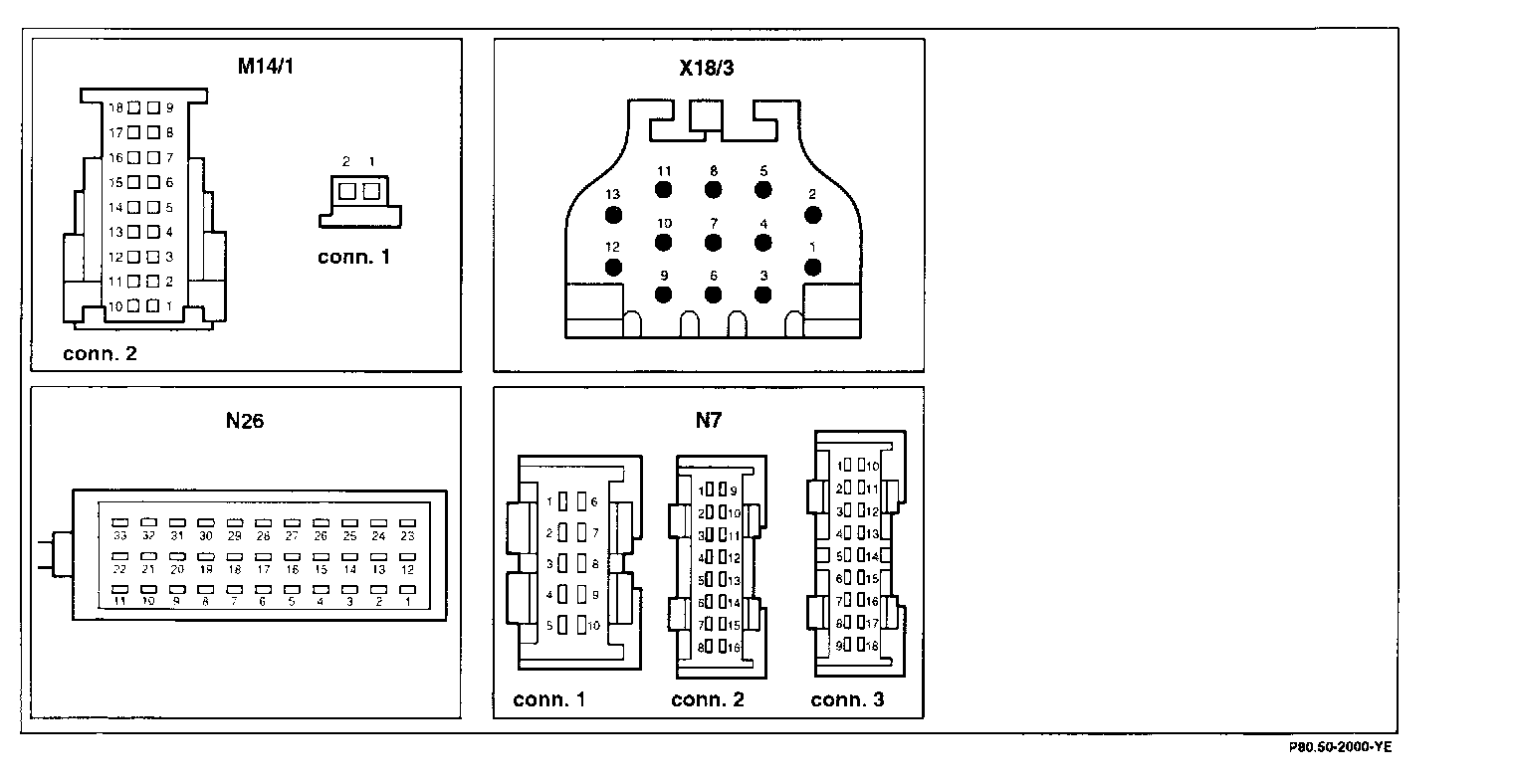

Connector Assignment:

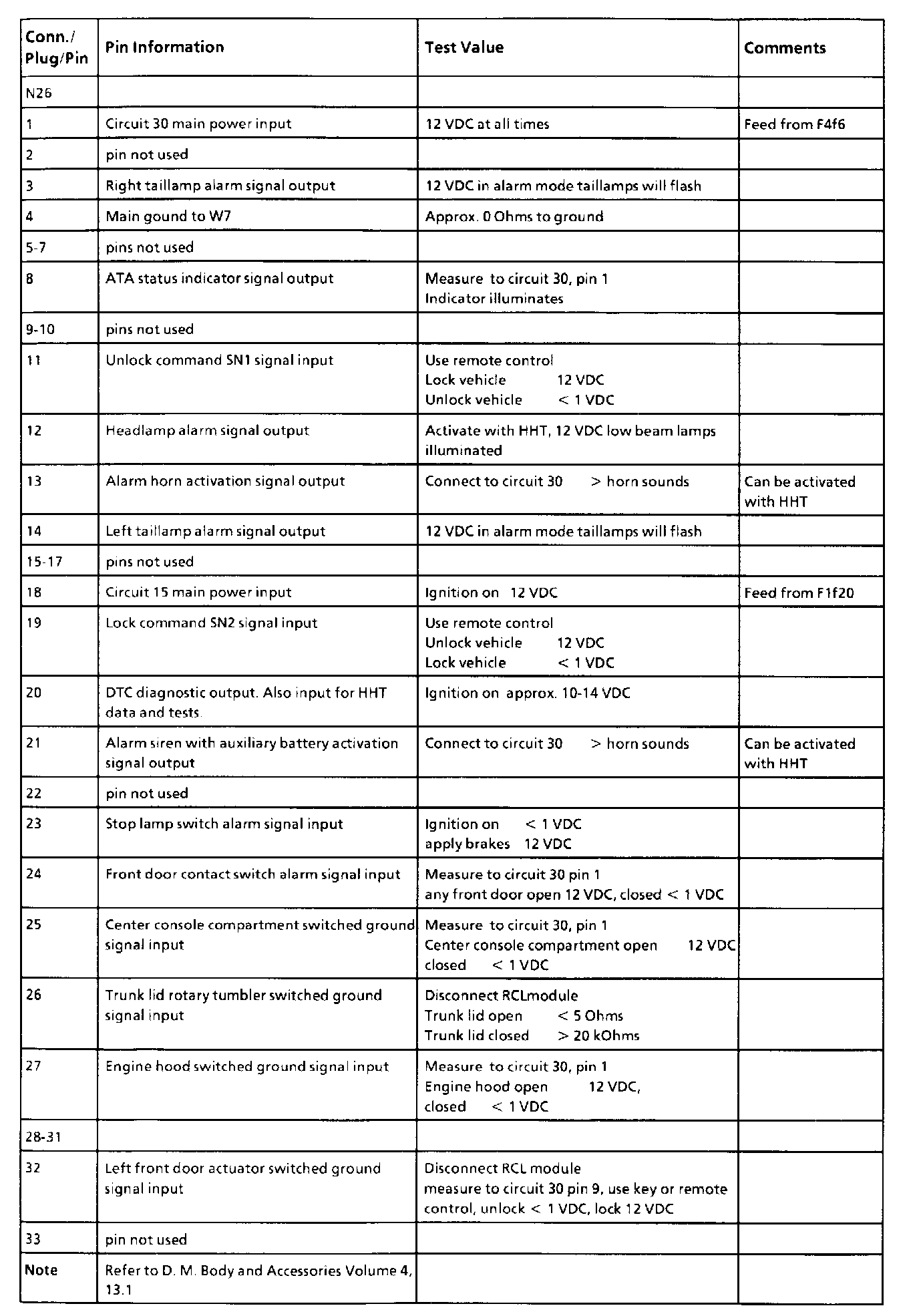

Pin Information:
