Home >> Mercedes Benz >> 2002 >> SL 500 (129.068) V8-5.0L (113.961) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Hinge >> Service and Repair

Trunk / Liftgate Hinge: Service and Repair

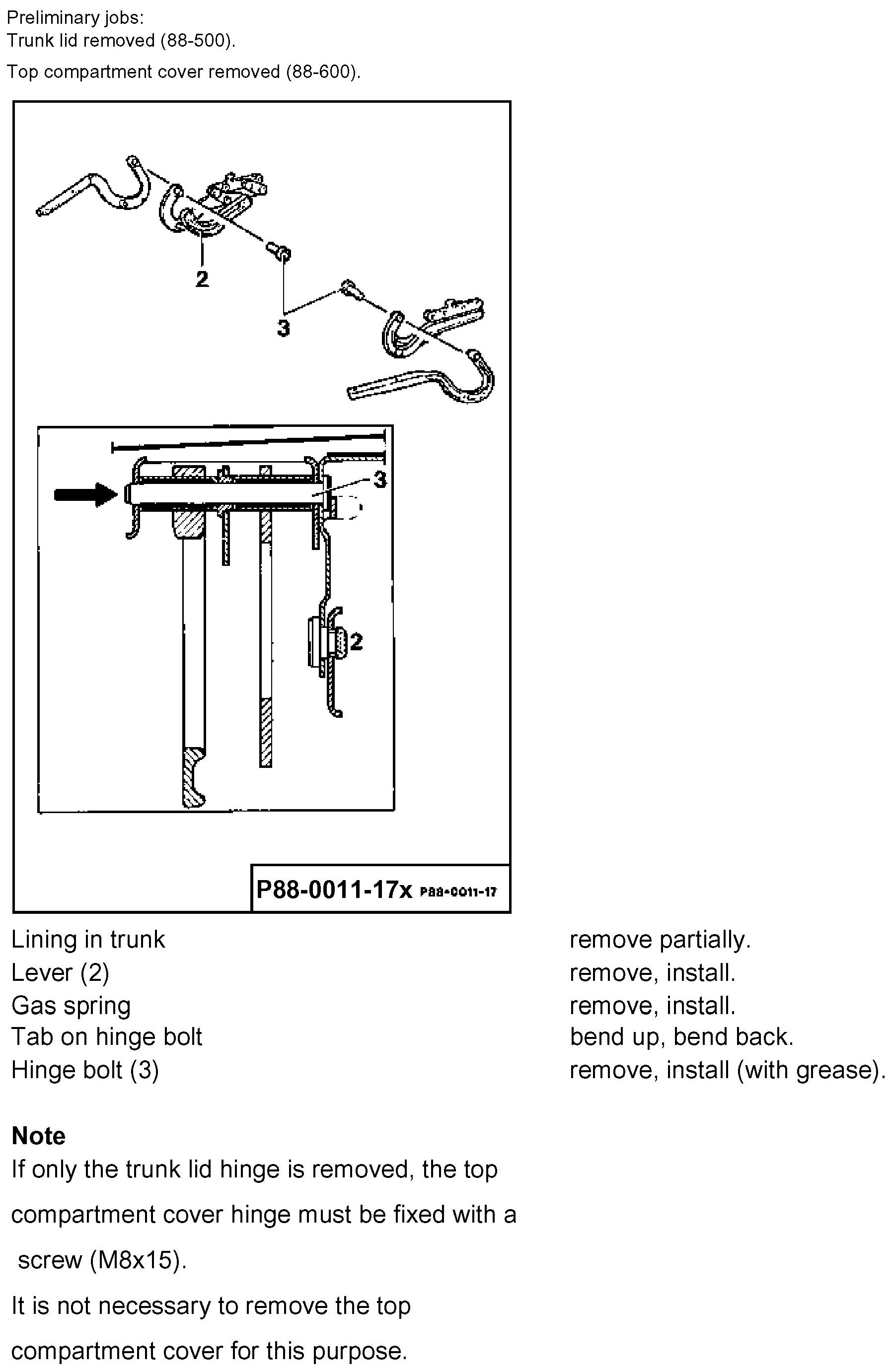

88-512 Removal And Installation Of Hinge Lever On Trunk Lid And Top Compartment Cover
