AN82.15-P-0001M Retrofitting Headlamp Cleaning System

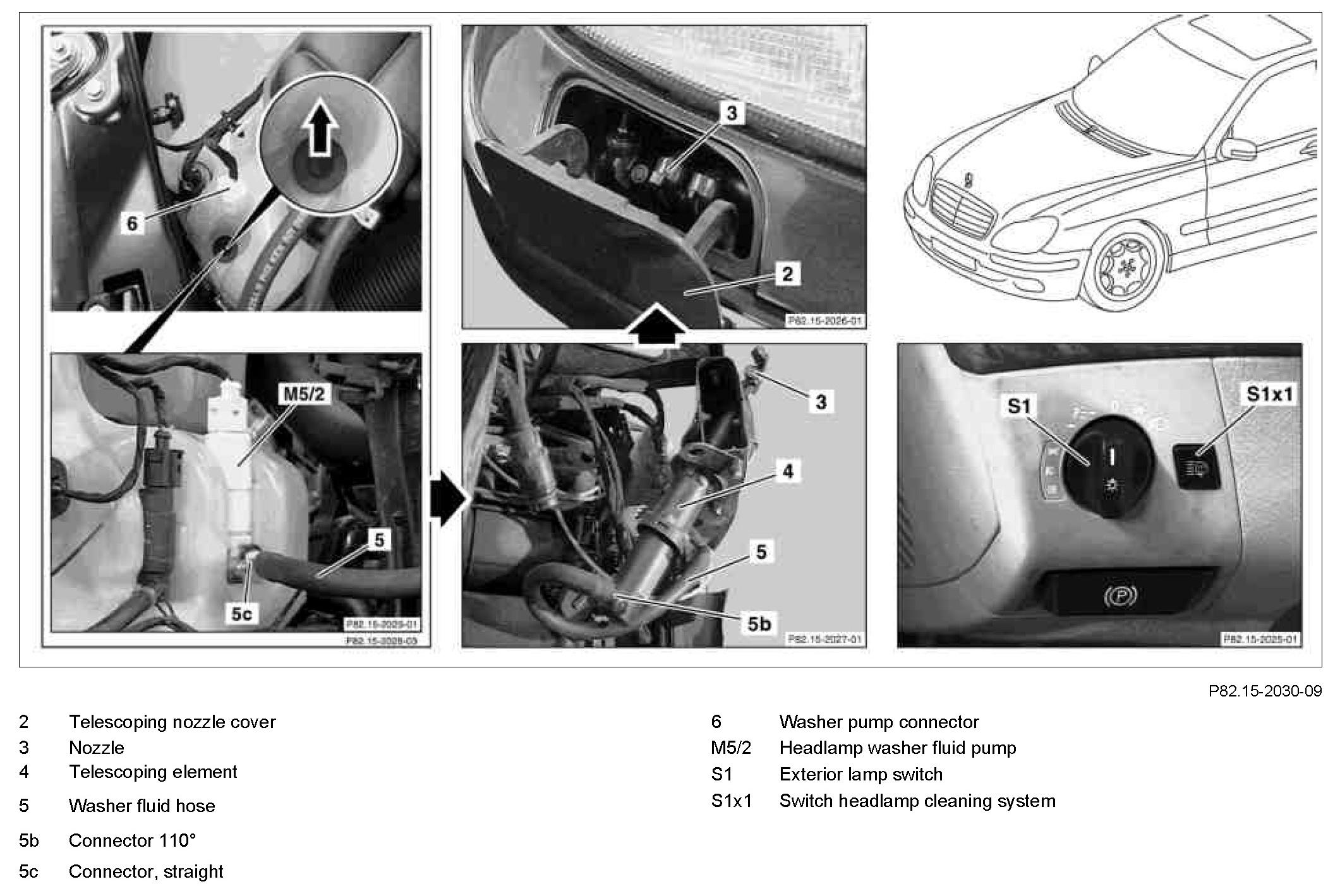

Component Identification:

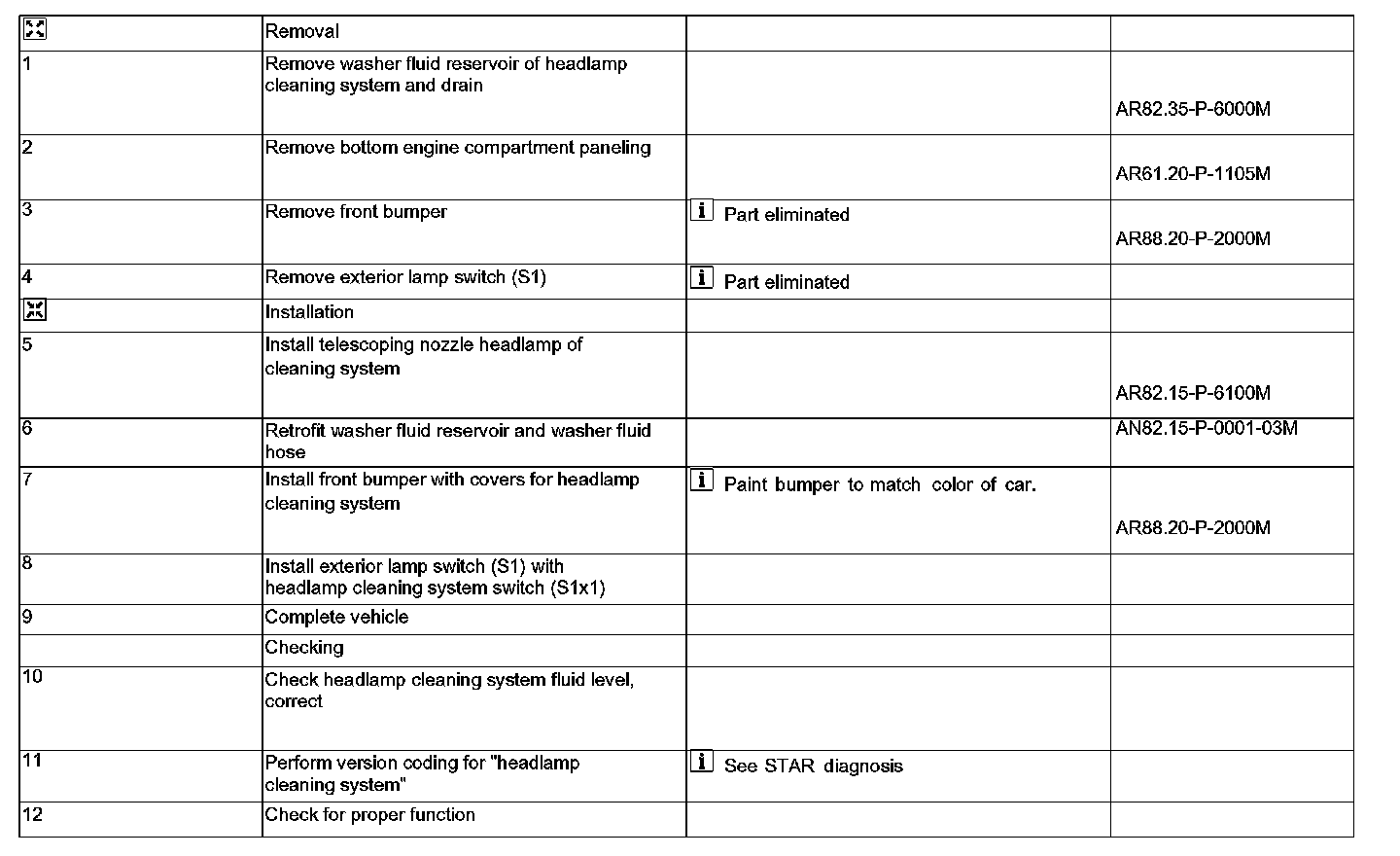

Steps 1 - 12:

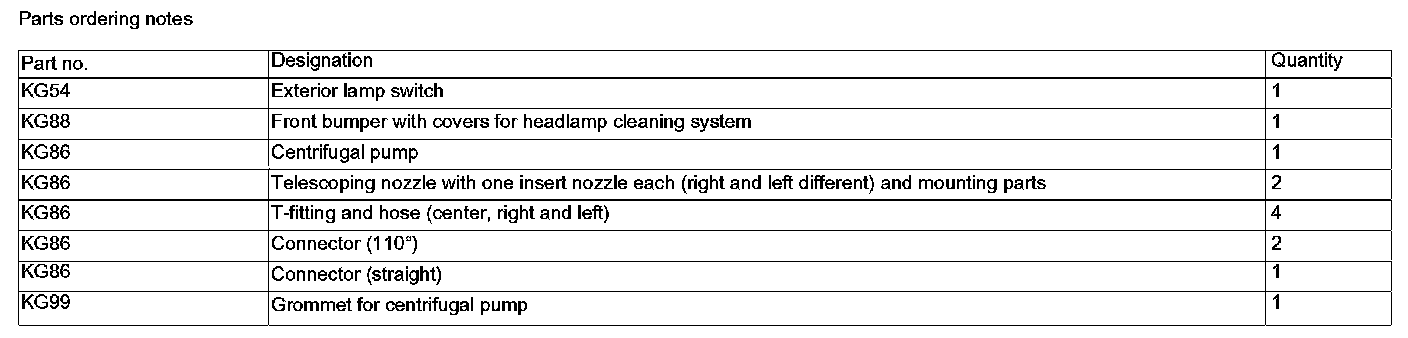

Parts Ordering Notes:
