AR72.10-P-1500MBA Remove/Install Window Guide Rail for Front Doors



AR72.10-P-1500MBA Remove/Install Window Guide Rail
- Front guide rail
- with CODE (Z07) Top protection

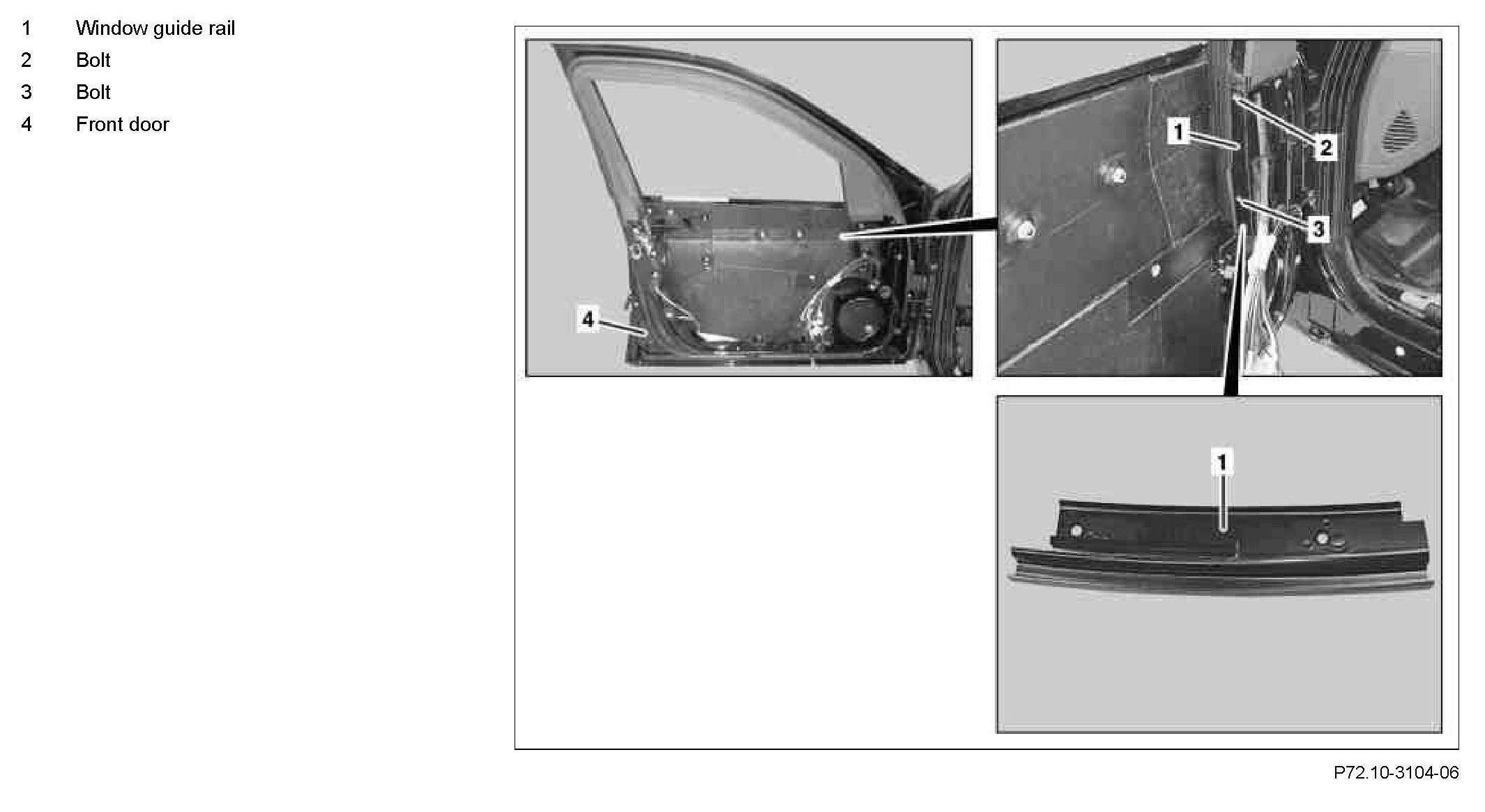

Component Identification:

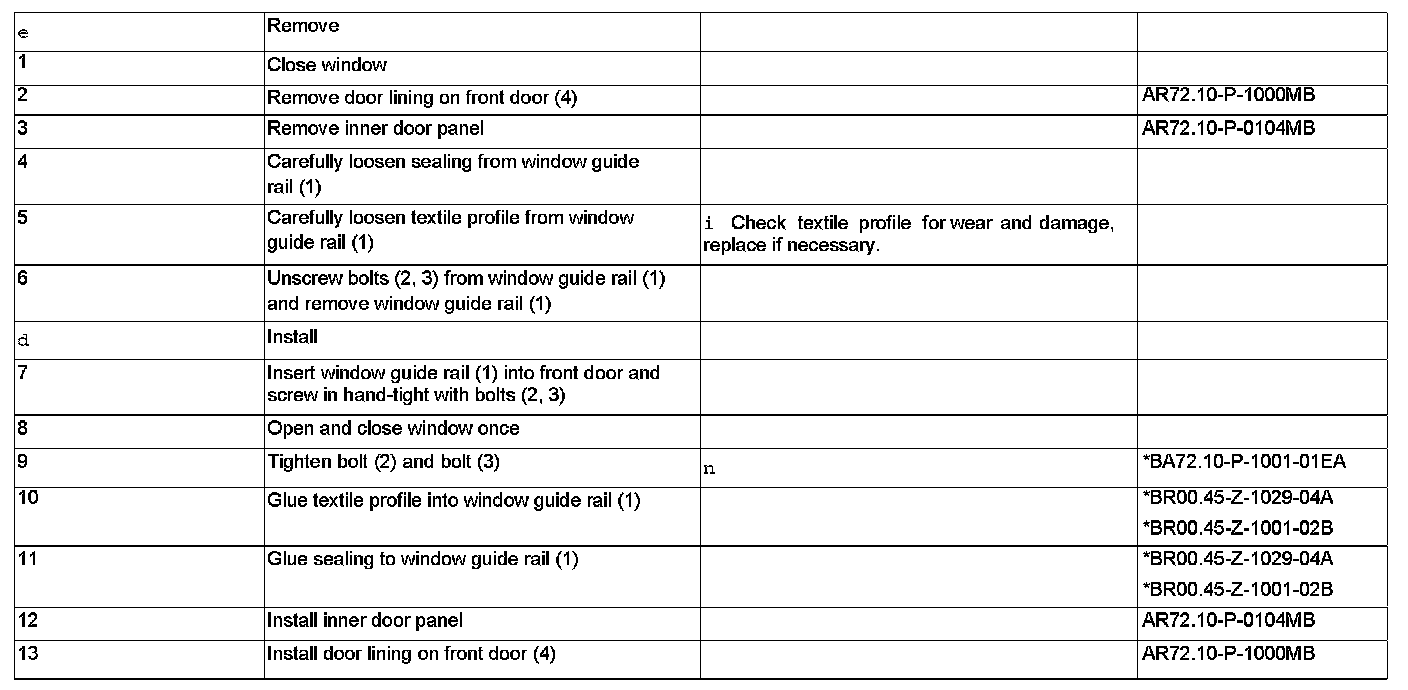

Steps 1 - 13:

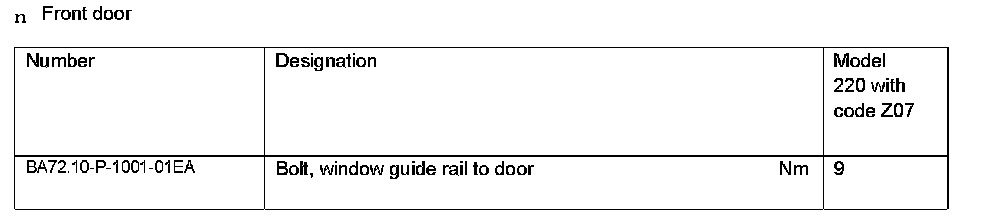

Front Door:

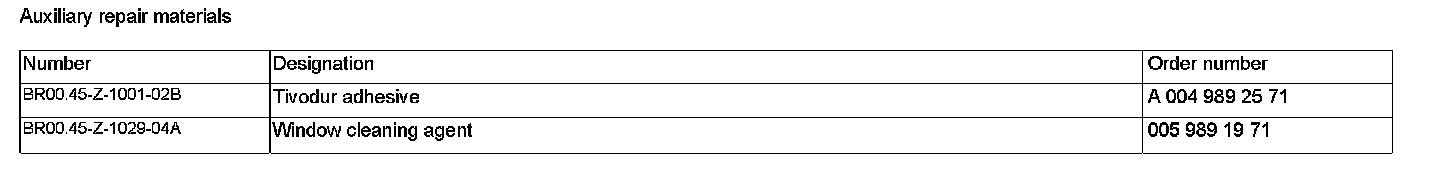

Auxiliary Repair Materials:
