AR72.10-P-1500MB Remove/Install Window Guide Rail for Front Doors

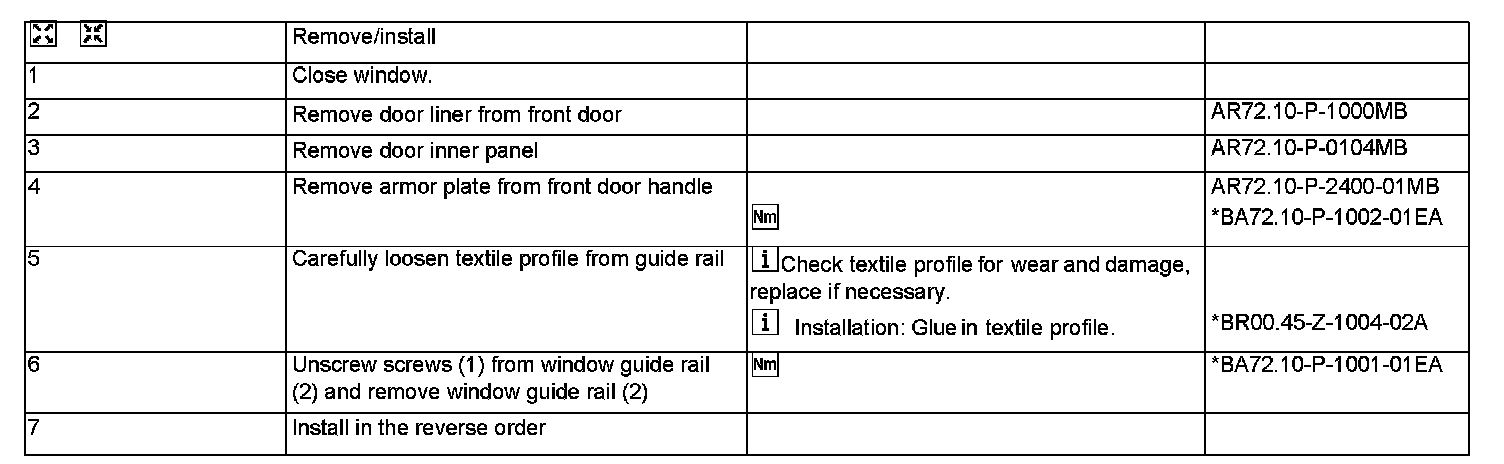

AR72.10-P-1500MB Remove/Install Window Guide Rail

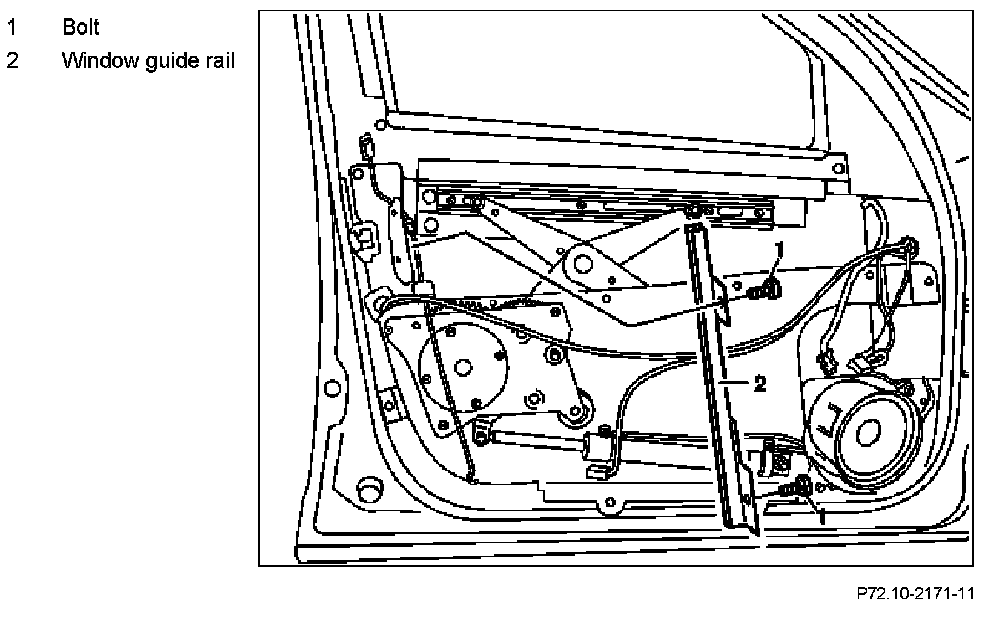

- Rear guide rail
- with CODE (Z07) Top protection

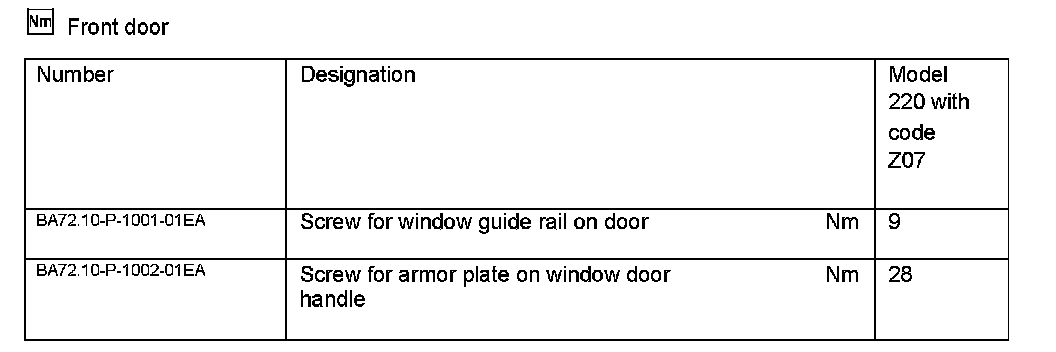

Front Door:
